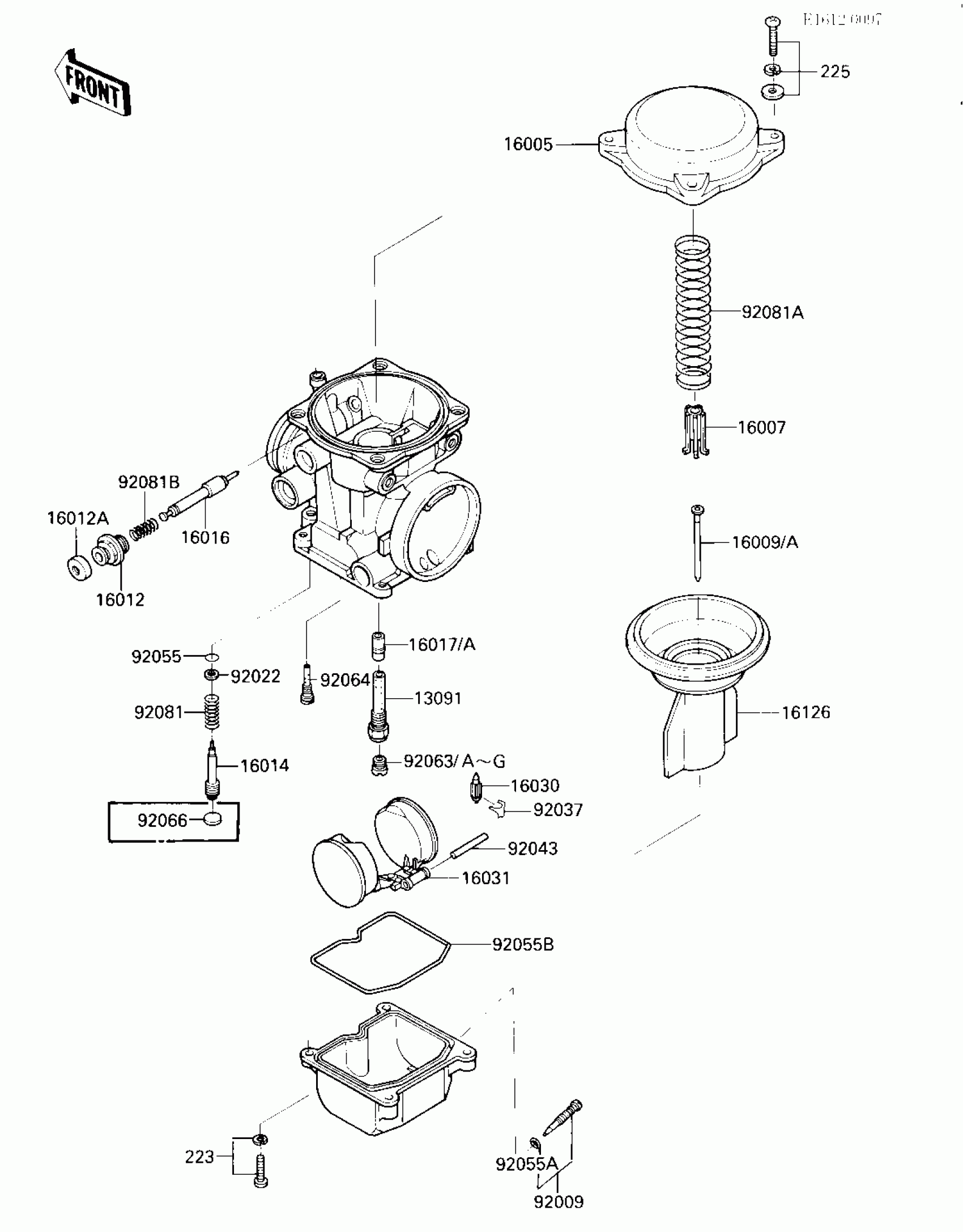

Find the part on the Carburetor Parts diagram for your 1986 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® Carburetor Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,NEEDLE JET

13091-1347

1
Out of stock

16005

TOP-CHAMBER,MIXING

16005-1054

1

$46.10

In stock

16007

SEAT-SPRING,VALVE

16007-1117

1

$23.01

In stock

16009

NEEDLE-JET,N27A

16009-1242

1
Out of stock

16009A

NEEDLE-JET,N278 (Canada)

16009-1243

1
Out of stock

16012

CAP-STARTER PLUNGER

16012-1051

1

$8.86

In stock

16012A

CAP-STARTER PLUNGER

16012-1052

1

$12.22

In stock

16014

SCREW-PILOT AIR

16014-1054

1

$23.12

In stock

16016

PLUNGER,STARTER

16016-1061

1

$45.45

In stock

16017

JET-NEEDLE

16017-1265

1
Out of stock

16017A

JET-NEEDLE,#6

16017-1266

1

$51.50

In stock

16030

VALVE-FLOAT

16030-1007

1

$43.50

In stock

16031

FLOAT

16031-1056

1

$48.44

In stock

16126

VALVE,VACUUM

16126-1163

1

$204.57

In stock

92009

SCREW,CUNTERSNK,4X35

92009-1093

1
Out of stock

92022

WASHER,PLAIN

92022-1003

1

$3.43

In stock

92037

CLAMP,FLOAT VALVE

16044-007

1

$6.30

In stock

92043

PIN,FLOAT

92043-1148

1

$10.71

In stock

92055

RING-O,PILOT ADJUST

92055-1002

1

$3.43

In stock

92055A

RING-O

92055-1053

1

$3.38

In stock

92055B

1

$13.70

In stock

92063

JET-MAIN,#140

92063-1013

1

$11.16

In stock

92063A

JET-MAIN,#135

92063-1014

1

$11.16

In stock

92063B

JET-MAIN,#135

92063-1014

1

$11.16

In stock

92063C

JET-MAIN,#138

92063-1015

1

$11.16

In stock

92063D

JET-MAIN,#128

92063-1074

1

$13.39

In stock

92063E

JET-MAIN,#130

92063-1075

1

$13.39

In stock

92063F

JET-MAIN,#132

92063-1076

1

$13.39

In stock

92063G

JET-MAIN,#132

92063-1076

1

$13.39

In stock

92064

JET-PILOT,#35

92064-1101

1

$13.38

In stock

92066

1

$4.01

In stock

92081

1

$4.34

In stock

92081A

SPRING,VACUUM VALVE

92081-1760

1
Out of stock

92081B

1

$9.31

In stock

223

1

$3.28

In stock

225

SCREW-PAN-WSP-CROS,4X18

225C0418

1
Out of stock
