2024 Kawasaki Ninja® e-1 ABS Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2024 Kawasaki Ninja® e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

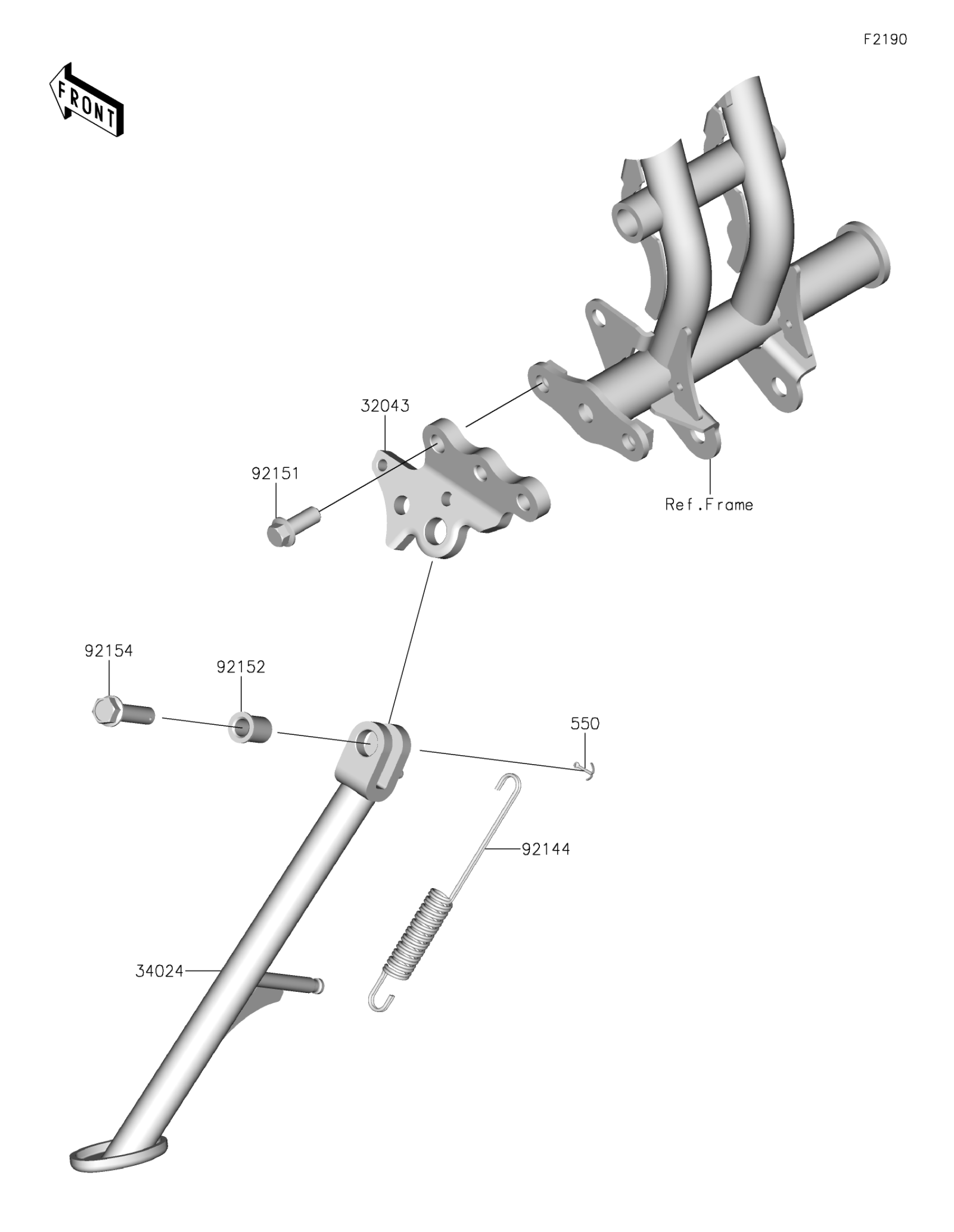

2024 Kawasaki Ninja® e-1 ABS Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND

32043-0683

1

$60.87

In stock

34024

STAND-SIDE

34024-0149

1

$95.34

In stock

92144

SPRING,SIDE STAND

92144-1818

1

$13.70

In stock

92151

BOLT,FLANGED,10X25

92151-1802

1

$3.84

In stock

92152

COLLAR,10.2X15X20.1

92152-1914

1
Out of stock

92154

BOLT,FLANGED,10X37

92154-1539

1

$6.43

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
