2024 Kawasaki Ninja® e-1 ABS Cowling Lowers Diagram

← All diagrams

Find the part on the Cowling Lowers diagram for your 2024 Kawasaki Ninja® e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

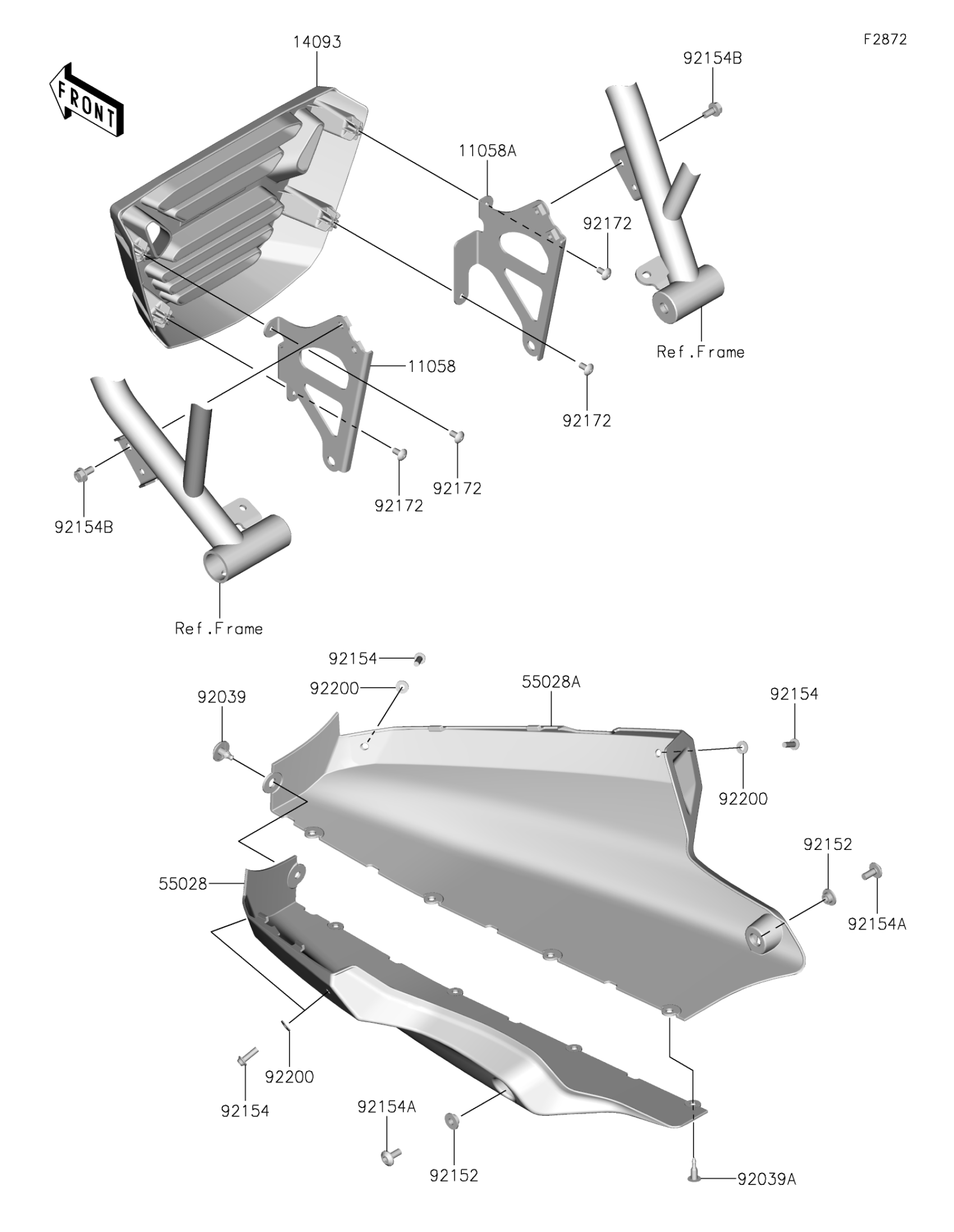

2024 Kawasaki Ninja® e-1 ABS Cowling Lowers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,LWR,LH

11058-0754

1

$20.41

In stock

11058A

BRACKET,LWR,RH

11058-0755

1

$20.41

In stock

14093

COVER,FR,LWR,CNT

14093-1473

1

$30.82

In stock

55028

COWLING,LWR,LH

55028-0861

1

$84.81

In stock

55028A

COWLING,LWR,RH

55028-0862

1

$103.63

In stock

92039

RIVET,HOLE 8MM

92039-0014

1

$2.64

In stock

92039A

RIVET

92039-0051

1

$3.69

In stock

92152

COLLAR,6.5X16X5.6

92152-1838

1

$3.35

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154A

BOLT,SOCKET,6X14

92154-0932

1

$1.68

In stock

92154B

BOLT,FLANGED,6X12

92154-1050

1

$1.68

In stock

92172

SCREW,5X10

92172-0864

1

$1.20

In stock

92200

WASHER,5.2X12X1.0

92200-0784

1
Out of stock
