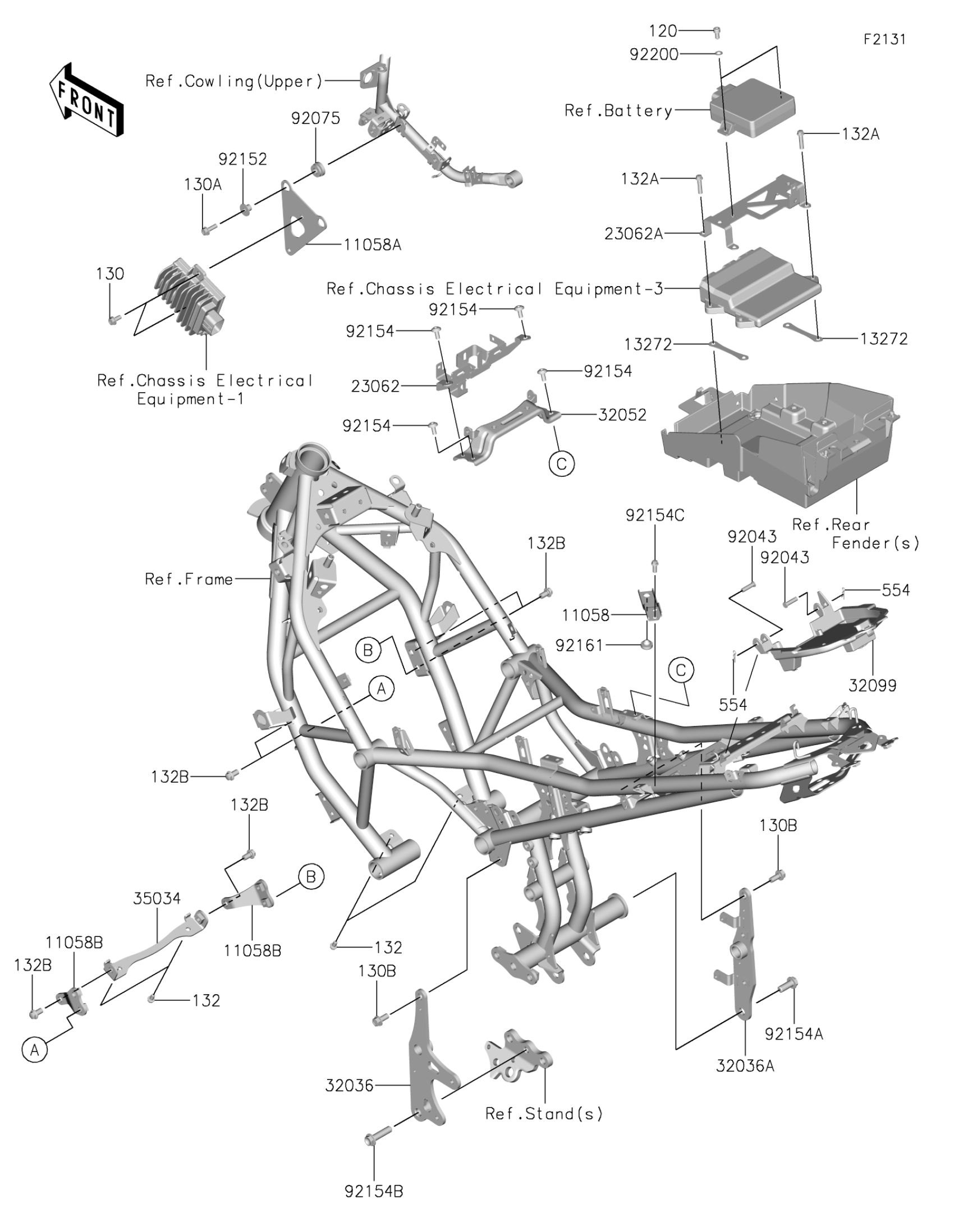

Kawasaki NINJA® e-1 ABS Frame Fittings Diagram

#

Description
Price

11058

BRACKET

11058-0752

$9.85

11058A

BRACKET,CONVERTER

11058-0753

$11.92

11058B

BRACKET

11058-0820

$14.24

13272

PLATE

13272-4295

$1.63

23062

BRACKET-COMP,VDS

23062-1431

$20.73

23062A

BRACKET-COMP,BMU

23062-1432

$11.66

32036

BRACKET-SWINGARM,LH

32036-0417

$106.17

32036A

BRACKET-SWINGARM,RH

32036-0418

$81.14

32052

BRACKET-TANK

32052-0809

$32.79

32099

CASE,SEAT UNDER

32099-0787

$10.59

35034

REINFORCE

35034-0615

$24.46

92043

PIN,6X23

92043-0746

$1.68

92075

DAMPER

92075-277

$1.90

92152

COLLAR

92152-2855

$2.12

92154

BOLT,SOCKET,6X14

92154-0932

$1.44

92154A

BOLT,FLANGED,10X25

92154-2251

$3.51

92154B

BOLT,FLANGED,10X40

92154-2812

$3.70

92154C

BOLT,6X14

92154-4129

$0.88

92161

DAMPER,9.5X18X6

92161-1473

$1.24

92200

WASHER,6.5X11.5X0.8

92200-0947

$0.44

120

BOLT-SOCKET,6X12

120CA0612

$1.27

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X20

130BA0620

$1.28

130B

BOLT-FLANGED,8X18

130CA0818

$1.81

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132B

BOLT-FLANGED-SMALL,8X14

132BA0814

$2.44

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79
