2024 Kawasaki Ninja® e-1 ABS Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2024 Kawasaki Ninja® e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

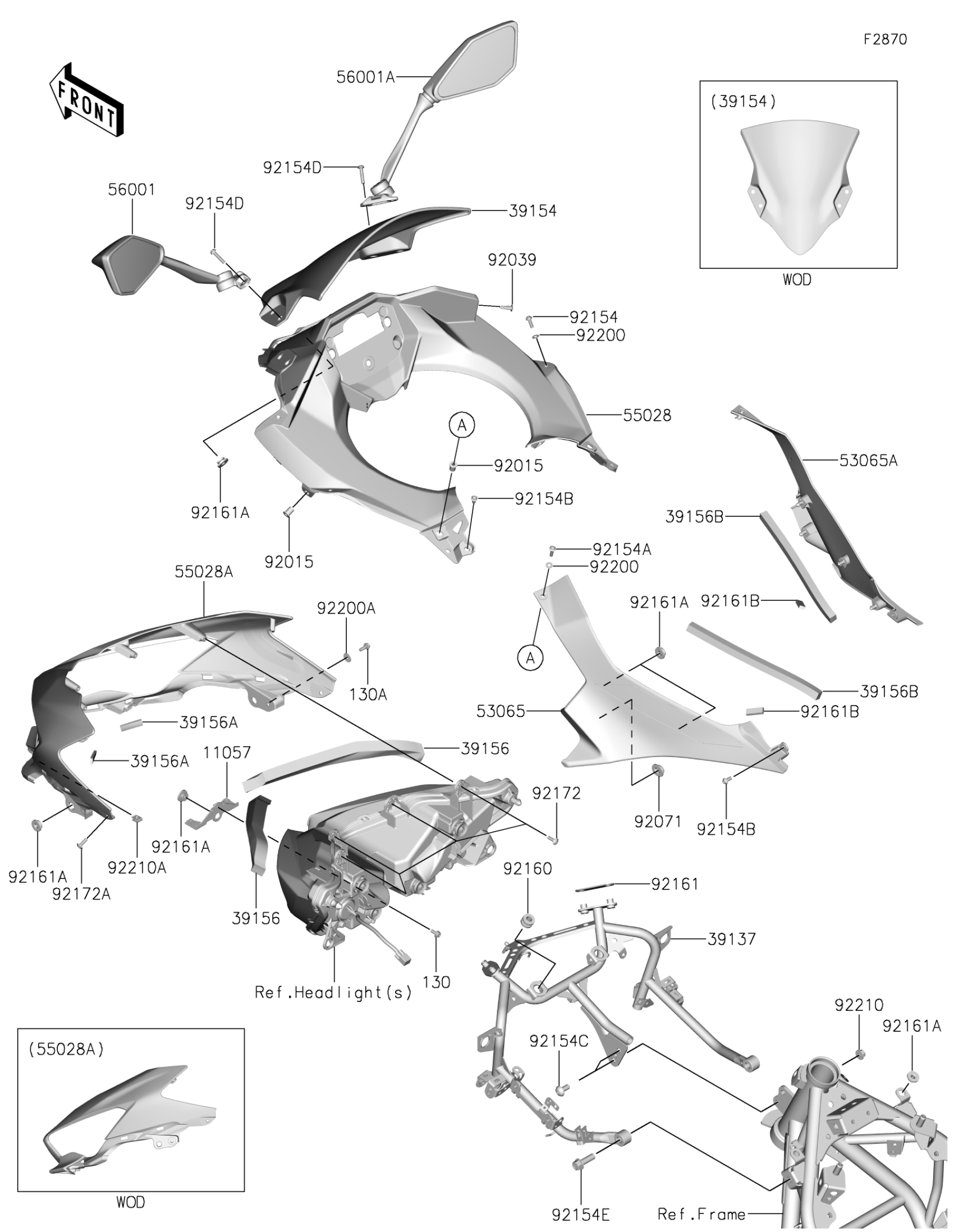

2024 Kawasaki Ninja® e-1 ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$5.25

In stock

39137

1

$225.86

In stock

39154

WINDSHIELD

39154-0426

1

$129.69

In stock

39156

PAD,20X290X20

39156-2357

1

$12.58

In stock

39156A

PAD,10X35X4

39156-2380

1

$0.69

In stock

39156B

PAD,240X13X12

39156-2889

1

$4.81

In stock

53065

COVER SEAT,LH

53065-0042

1

$50.84

In stock

53065A

COVER SEAT,RH

53065-0043

1

$57.42

In stock

55028

COWLING,METER PANEL

55028-0860

1

$181.94

In stock

55028A

COWLING,UPP,M.B.SILVER

55028-0893-63S

1

$335.17

In stock

56001

MIRROR-ASSY,LH

56001-0378

1

$95.78

In stock

56001A

MIRROR-ASSY,RH

56001-0379

1

$95.78

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-0060

1

$2.71

In stock

92071

GROMMET,20X24X7.5

92071-0766

1

$1.27

In stock

92154

BOLT,SOCKET,5X16

92154-0209

1

$2.25

In stock

92154A

BOLT,SOCKET,5X20

92154-0210

1

$1.78

In stock

92154B

BOLT,SOCKET,5X12

92154-1421

1

$0.93

In stock

92154C

BOLT,SOCKET,8X18

92154-2656

1

$4.08

In stock

92154D

BOLT,SOCKET,6X25

92154-2806

1

$2.02

In stock

92154E

BOLT,FLANGED,10X30

92154-4393

1

$1.85

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-1467

1

$1.68

In stock

92161A

DAMPER

92161-1531

1

$2.44

In stock

92161B

DAMPER,10X28X5

92161-2107

1

$2.02

In stock

92172

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92172A

1

$0.69

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,5.2X16X1.2

92200-0583

1
Out of stock

92210

NUT,FLANGED,8MM

92210-0304

1
Out of stock

92210A

NUT

92210-0571

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock

130A

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock
