1989 Kawasaki Ninja® 750R Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

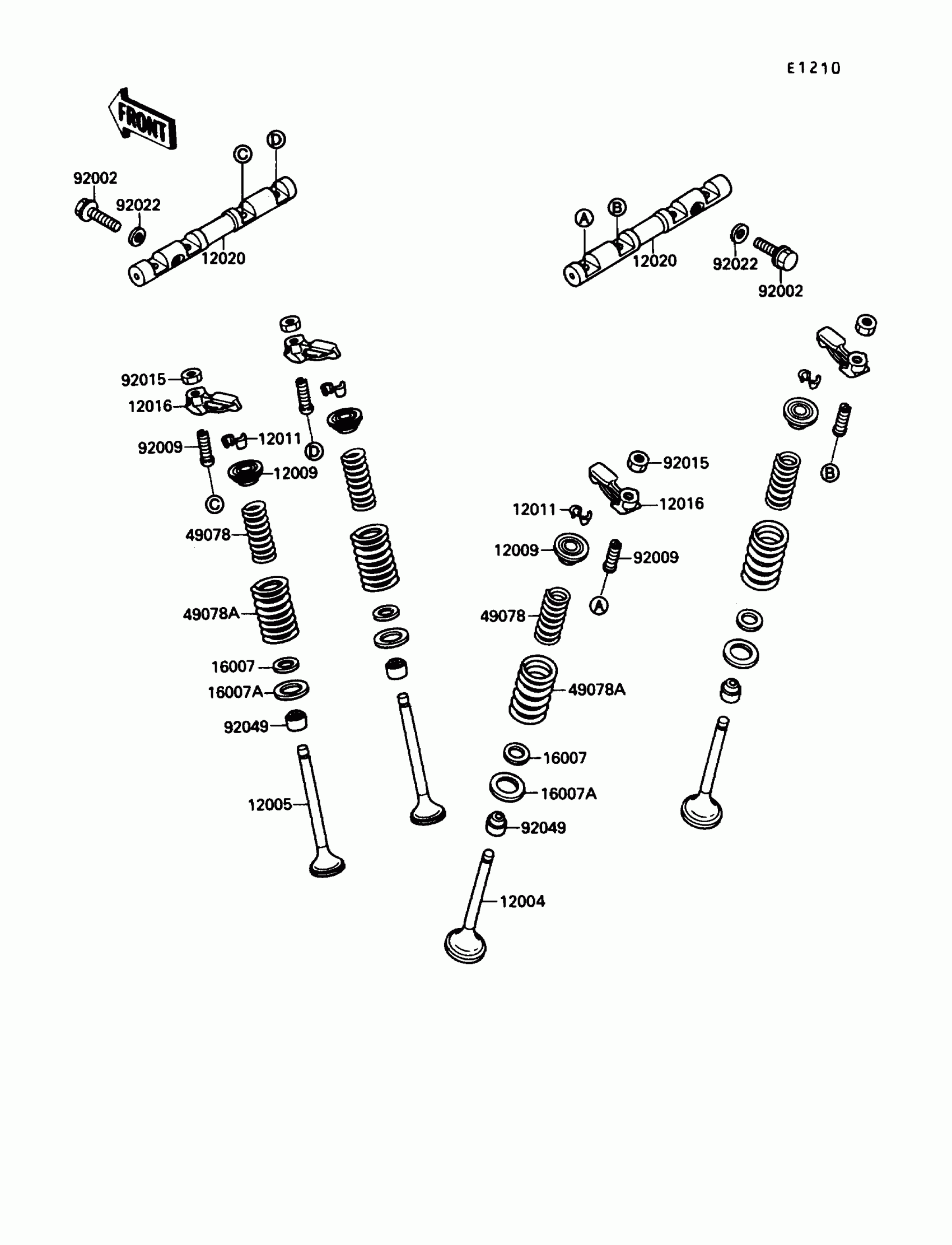

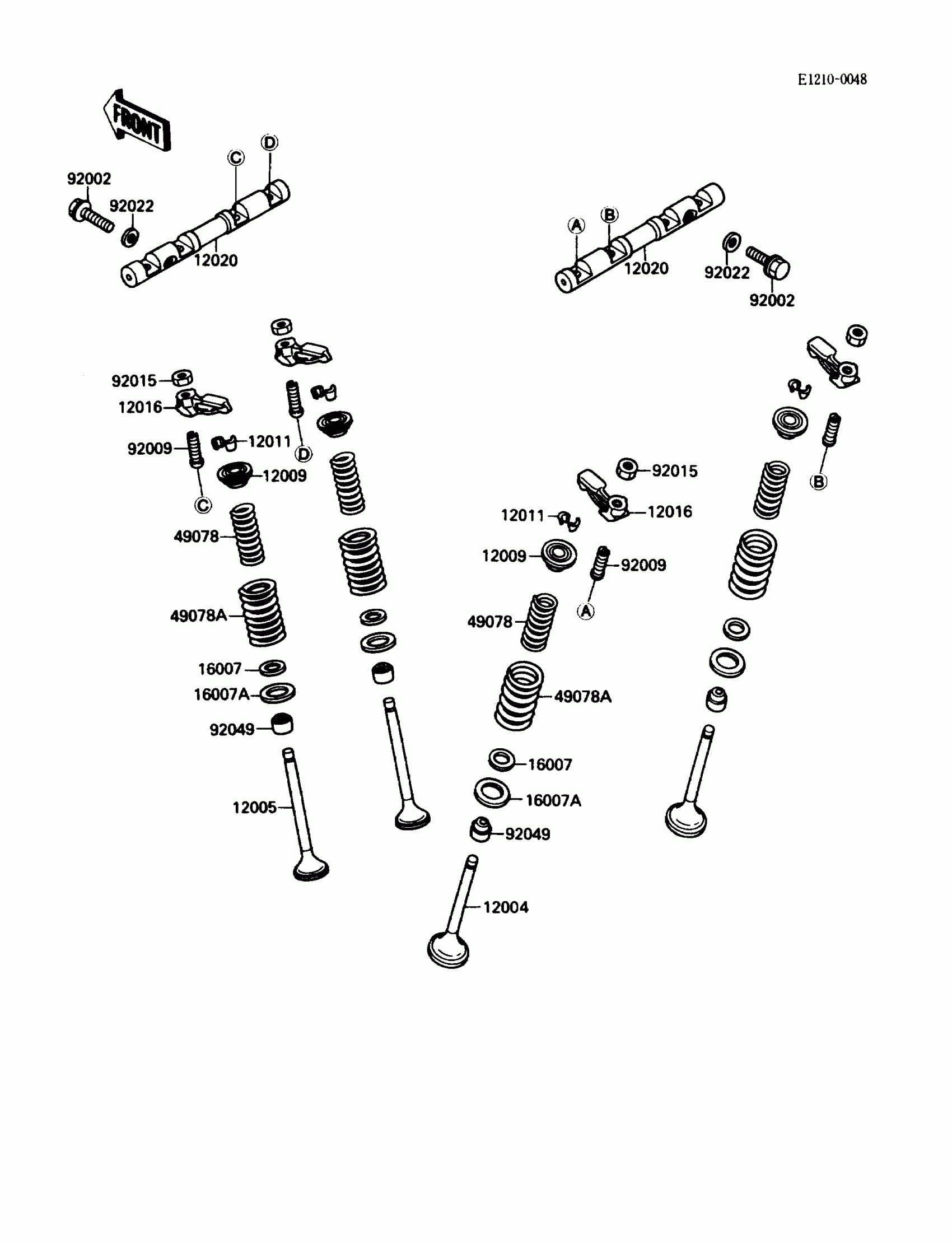

1989 Kawasaki Ninja® 750R Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1069

1
Out of stock

12005

VALVE-EXHAUST

12005-1077

1
Out of stock

12009

1

$9.15

In stock

12011

COLLET

12011-1051

1

$1.64

In stock

12016

ARM-ROCKER

12016-1073

1
Out of stock

12020

SHAFT-ROCKER

12020-1060

1
Out of stock

16007

1

$4.85

In stock

16007A

1

$4.88

In stock

49078

1

$15.61

In stock

49078A

1

$15.61

In stock

92002

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92009

SCREW,7MM

92009-1442

1
Out of stock

92015

NUT,7MM

92015-1325

1
Out of stock

92022

WASHER,6.3X12.5X1.6

92022-1817

1
Out of stock

92049

SEAL-OIL,VSB58.558

92049-1218

1
Out of stock
