1989 Kawasaki Ninja® 750R Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

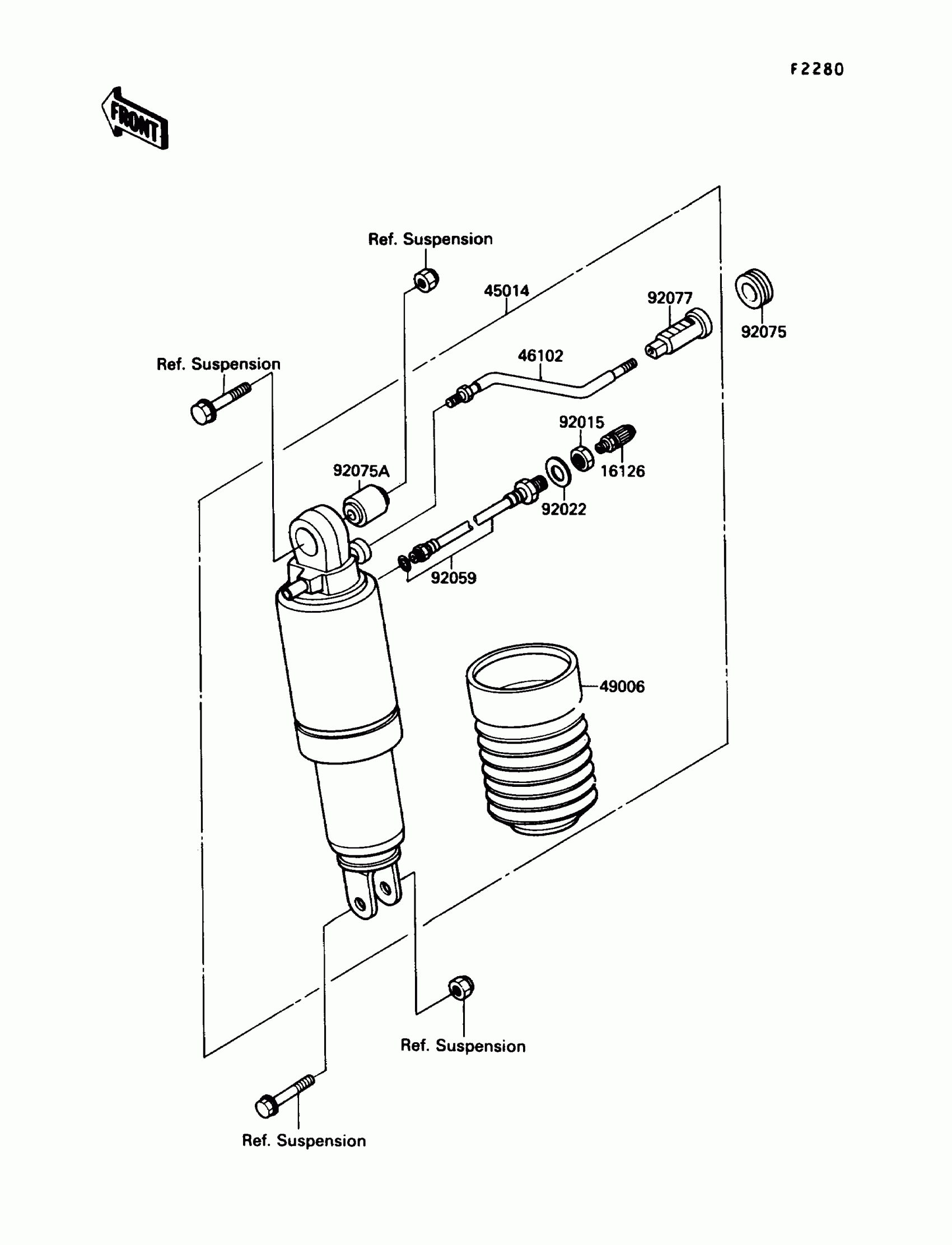

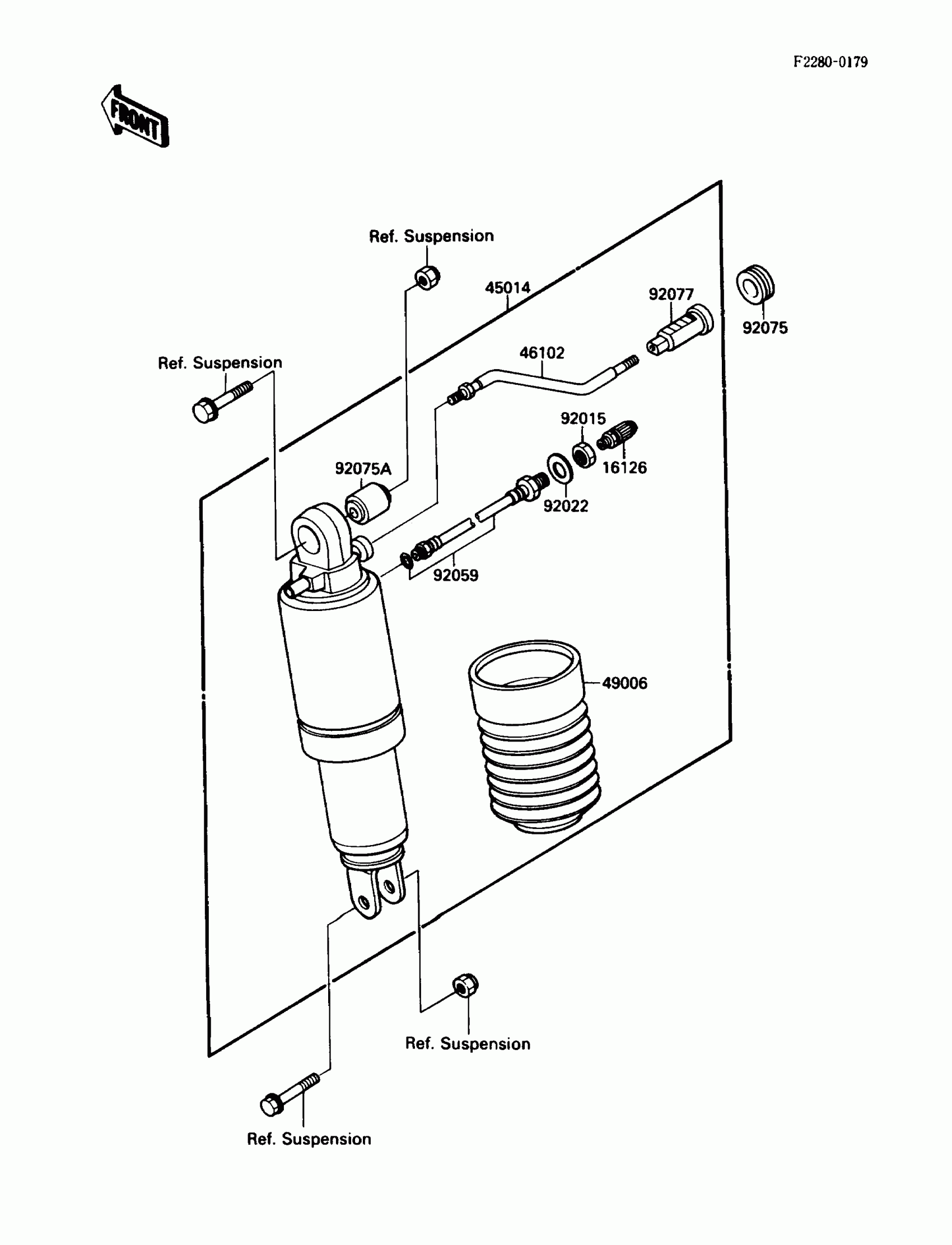

1989 Kawasaki Ninja® 750R Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,AIR

16126-1143

1
Out of stock

45014

SHOCKABSORBER

45014-1351

1
Out of stock

46102

ROD,SHOCKABSORBER ADJUST

46102-1207

1
Out of stock

49006

BOOT,RR SHOCKABSORBER

49006-1151

1
Out of stock

92015

NUT,14MM

92015-1305

1
Out of stock

92022

WASHER

92022-1494

1
Out of stock

92059

TUBE,SHOCKABSORBER,L=130

92059-1810

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92075A

DAMPER,SHOCKABSORBER

92075-1654

1
Out of stock

92077

KNOB,SHOCKABSORBER,ADJUST

92077-1051

1
Out of stock
