1989 Kawasaki Ninja® 750R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

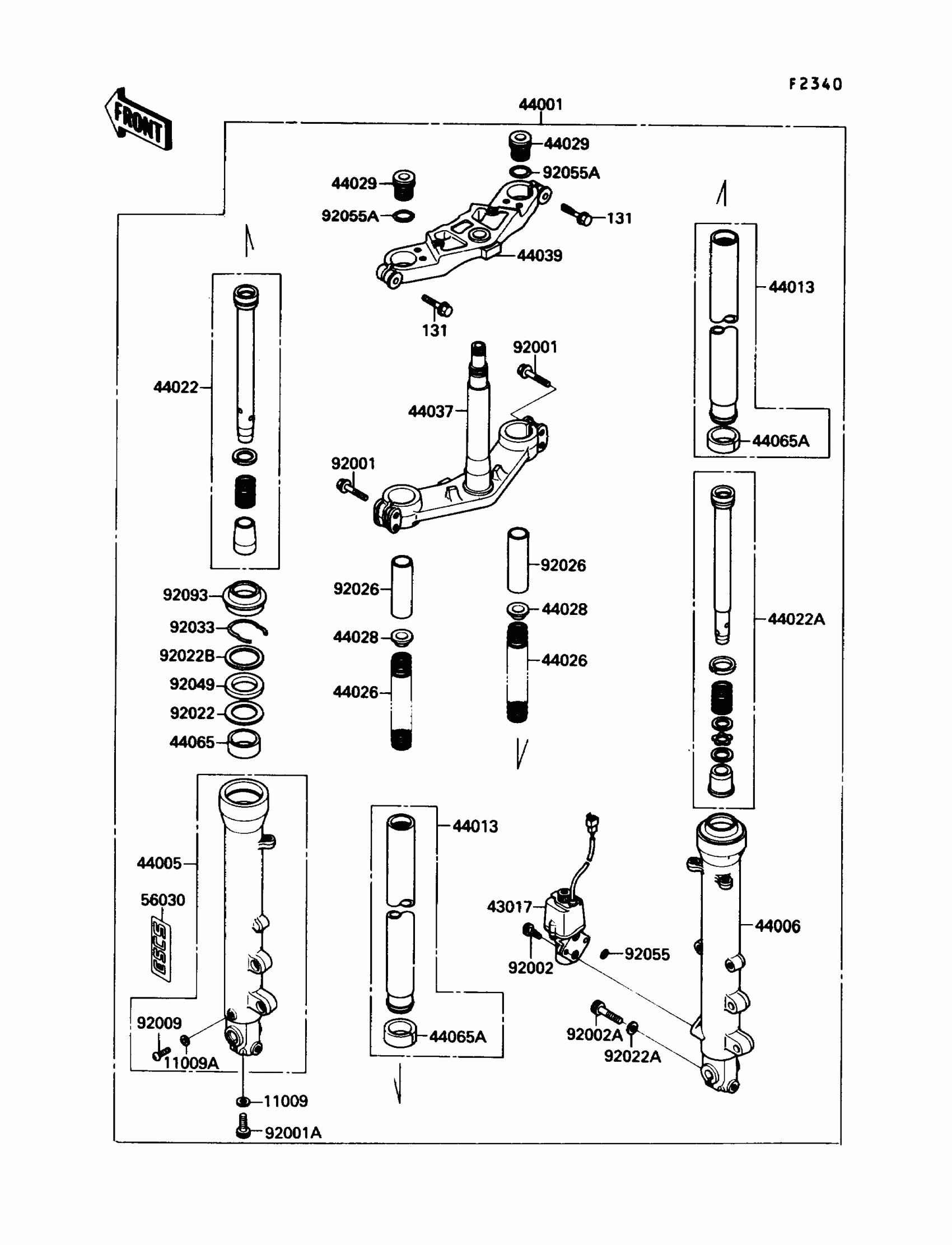

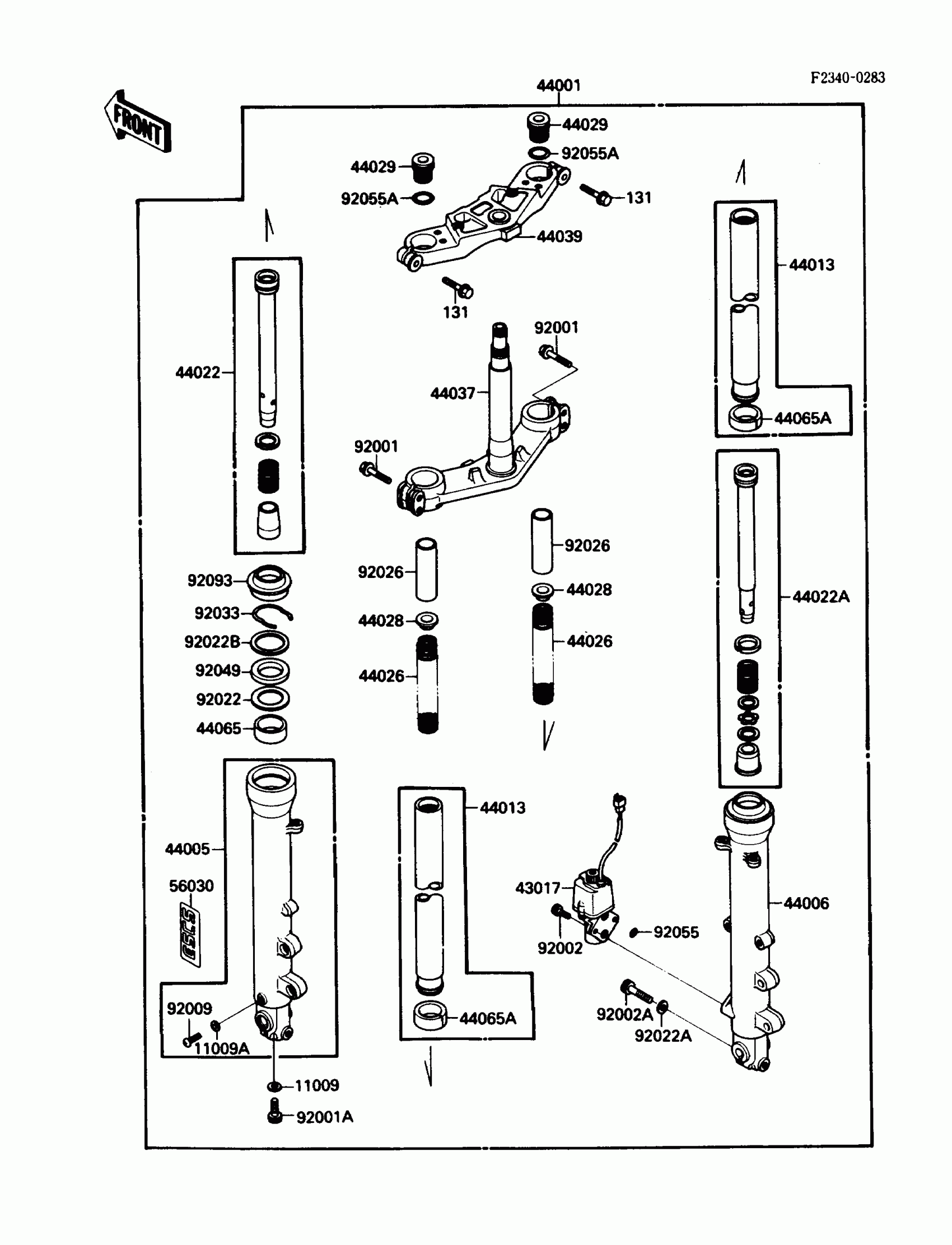

1989 Kawasaki Ninja® 750R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

131

BOLT-FLANGED,8X45

131G0845

1
Out of stock

11009

1

$4.12

In stock

11009A

1

$4.12

In stock

43017

VALVE-COMP-BRAKE

43017-1066

1

$506.21

In stock

44001

FORK-FRONT

44001-1639

1

$1,382.03

In stock

44005

1

$427.72

In stock

44006

1

$427.72

In stock

44013

PIPE-FORK INNER

44013-1258

1
Out of stock

44022

CYLINDER-FORK,LH

44022-1202

1
Out of stock

44022A

CYLINDER-FORK,RH

44022-1203

1

$127.84

In stock

44026

SPRING-FRONT FORK

44026-1358

1

$89.13

In stock

44028

GUIDE-FORK SPRING

44028-1003

1
Out of stock

44029

SEAT-FORK SPRING

44029-1126

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1206

1

$395.52

In stock

44039

HOLDER-FORK UPPER

44039-1144

1

$272.08

In stock

44065

BUSHING-FRONT FORK

44065-1012

1

$23.54

In stock

44065A

1

$44.61

In stock

56030

LABEL,ESCS MARK

56030-1095

1

$4.97

In stock

92001

BOLT,FLANGED,8X40

92001-1188

1
Out of stock

92001A

BOLT,FORK CYLINDER

92001-1309

1

$6.06

In stock

92002

BOLT,SOCKET,6X16

92002-1166

1

$5.74

In stock

92002A

BOLT,SOCKET,8X38

92002-1316

1
Out of stock

92009

SCREW,4X8

92009-1324

1
Out of stock

92022

1

$8.39

In stock

92022A

WASHER

92022-1598

1

$8.20

In stock

92022B

WASHER,FORK OUTER PIPE,UPP

92022-1599

1
Out of stock

92026

SPACER,FORK,L=100

92026-1288

1

$16.93

In stock

92033

RING-SNAP,FORK

92033-1047

1

$5.11

In stock

92049

SEAL-OIL,FORK

92049-1178

1
Out of stock

92055

RING-O

92055-1379

1

$1.08

In stock

92055A

RING-O,FORK TOP

92055-1380

1
Out of stock

92093

SEAL,FORK

92093-1162

1

$27.19

In stock
