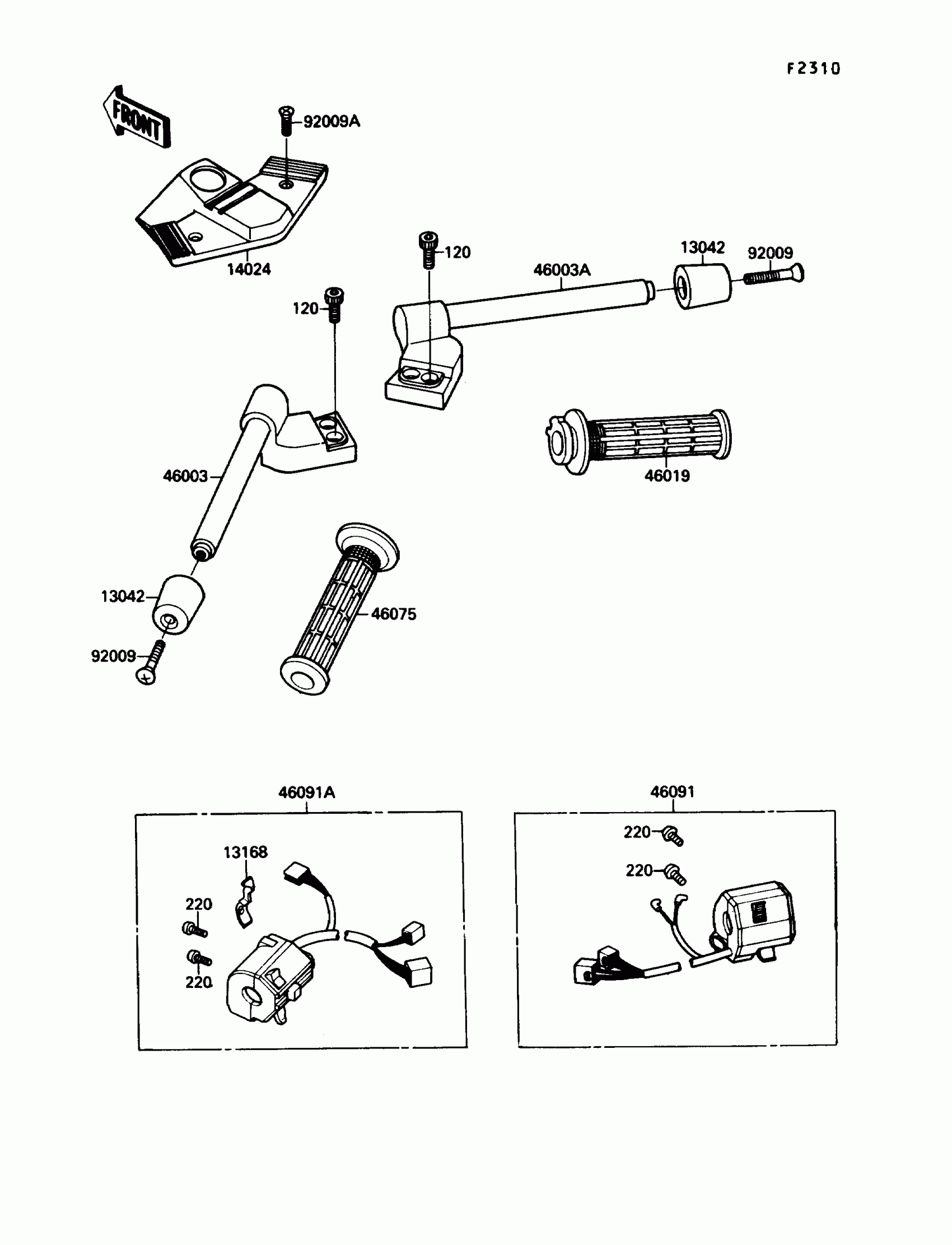

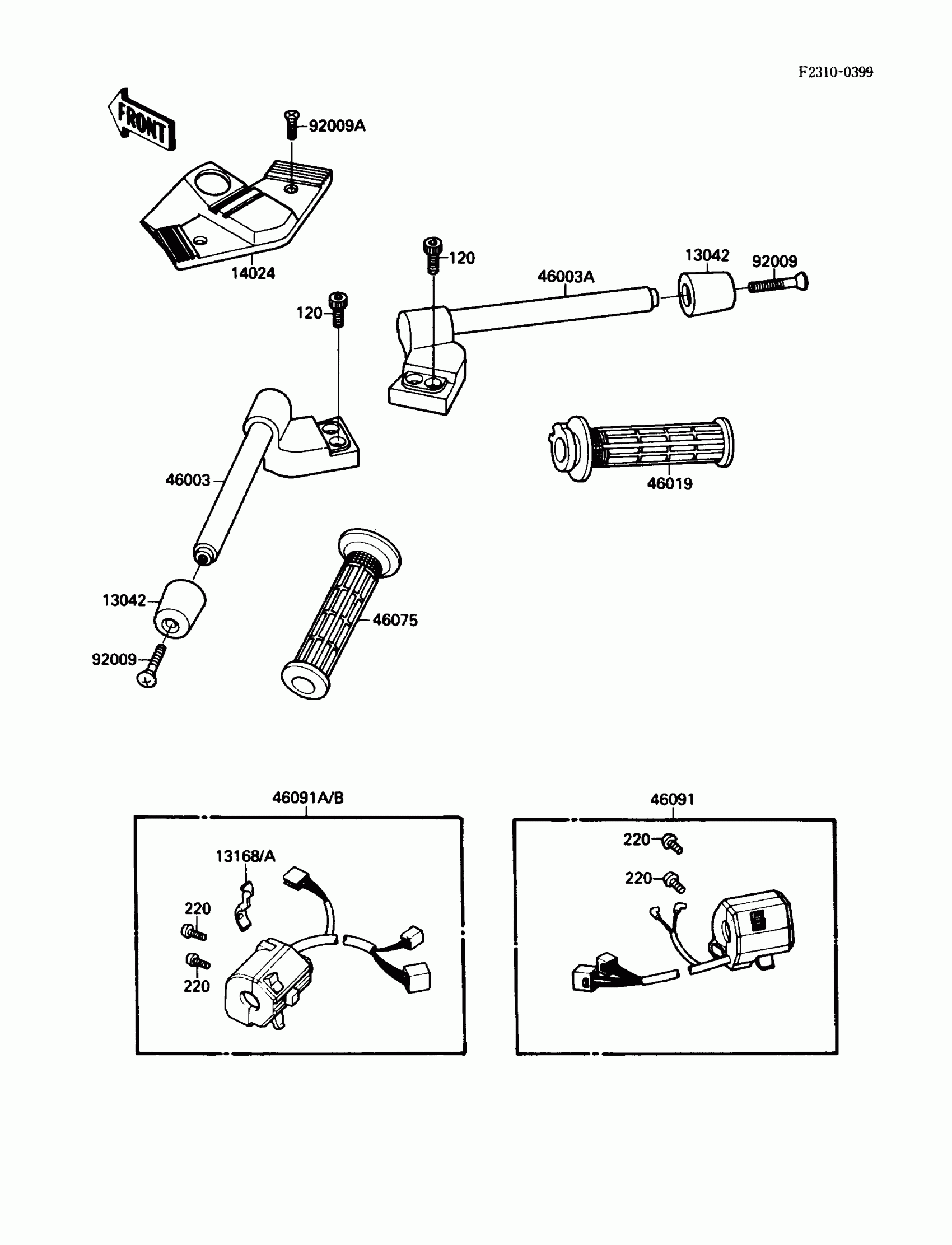

Kawasaki Ninja® 750R Handlebar Diagram

Description

Price

120

BOLT-SOCKET,8X20

120S0820

Unavailable

220

SCREW-PAN-CROS

220C0520

$1.36

13042

WEIGHT,HANDLE

13042-1005

$29.48

13168A

LEVER,CHOKE

13168-1374

$10.34

14024

COVER,STEERING HEAD

14024-1302

Unavailable

46003

HANDLE,LH

46003-1230

$234.41

46003A

HANDLE,RH

46003-1231

$234.41

46019

GRIP-ASSY,THROTTLE

46019-1059

$32.50

46075

GRIP,LH

46075-1028

$14.16

46091

HOUSING-ASSY-CONTROL,RH

46091-1439

$172.76

46091B

HOUSING-ASSY-CONTROL,LH

46091-1482

Unavailable

92009

SCREW,8X45

92009-1257

$3.57

92009A

SCREW,5X18

92009-1328

$3.75
