1987 Kawasaki Ninja® 750R Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1987 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

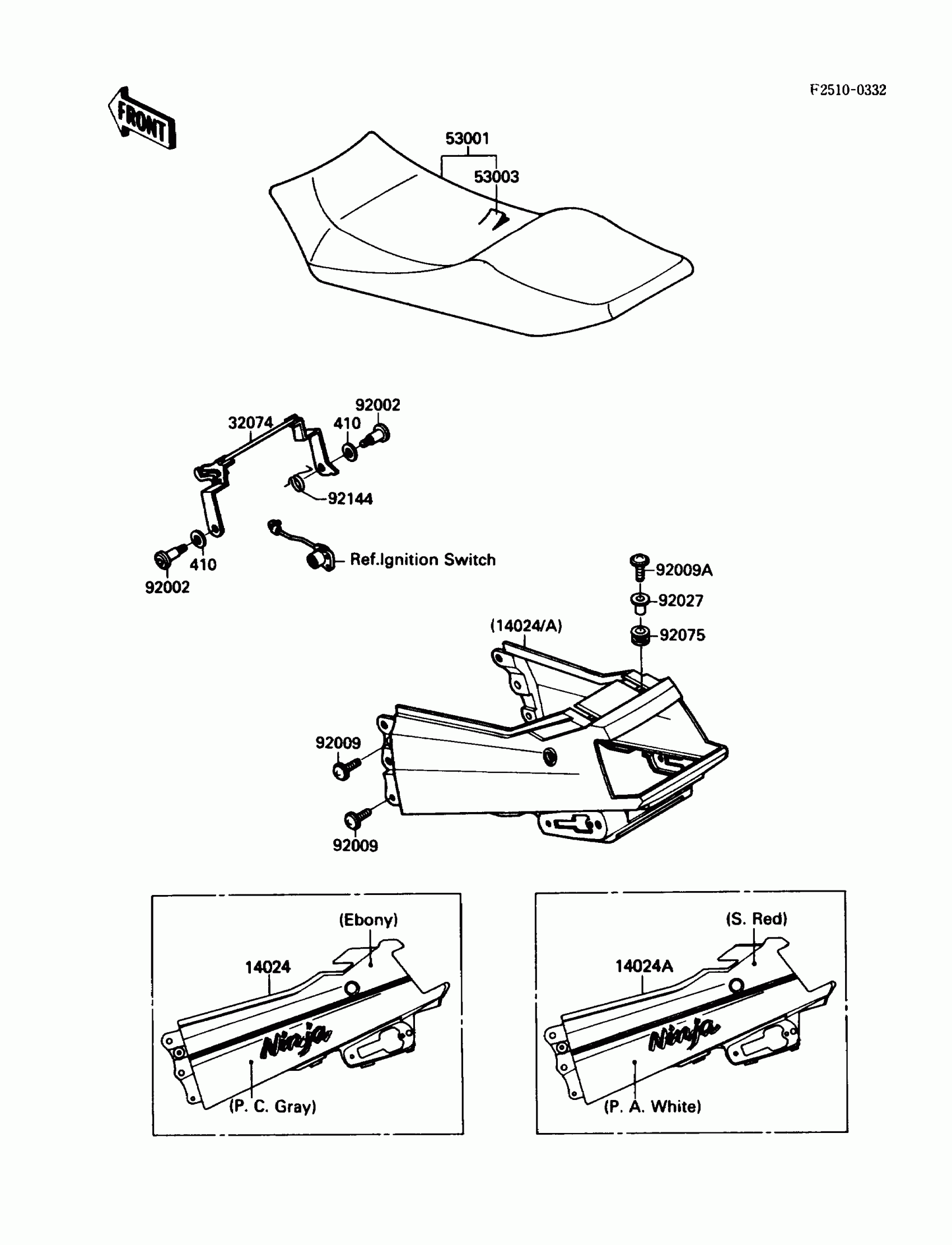

1987 Kawasaki Ninja® 750R Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

WASHER-PLAIN-SMALL,10MM,BLACK

410F1000

1
Out of stock

14024

COVER,SEAT,EBONY/P.C.GRAY

14024-5019-T4

1
Out of stock

14024A

COVER,SEAT,P.A.WHITE/S.RED

14024-5020-W2

1
Out of stock

32074

BRACKET-LOCK,SEAT

32074-1130

1

$59.27

In stock

53001

SEAT-ASSY,DUAL

53001-1494

1

$652.44

In stock

53003

LEATHER,SEAT

53003-1178

1

$215.24

In stock

92002

BOLT,SOCKET,6MM

92002-1616

1
Out of stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009A

SCREW,6X22,BLACK

92009-1251

1
Out of stock

92027

COLLAR,L=14.1

92027-1920

1

$5.45

In stock

92075

DAMPER

92075-1913

1

$4.44

In stock

92144

SPRING,SEAT LOCK

92144-1086

1

$5.47

In stock
