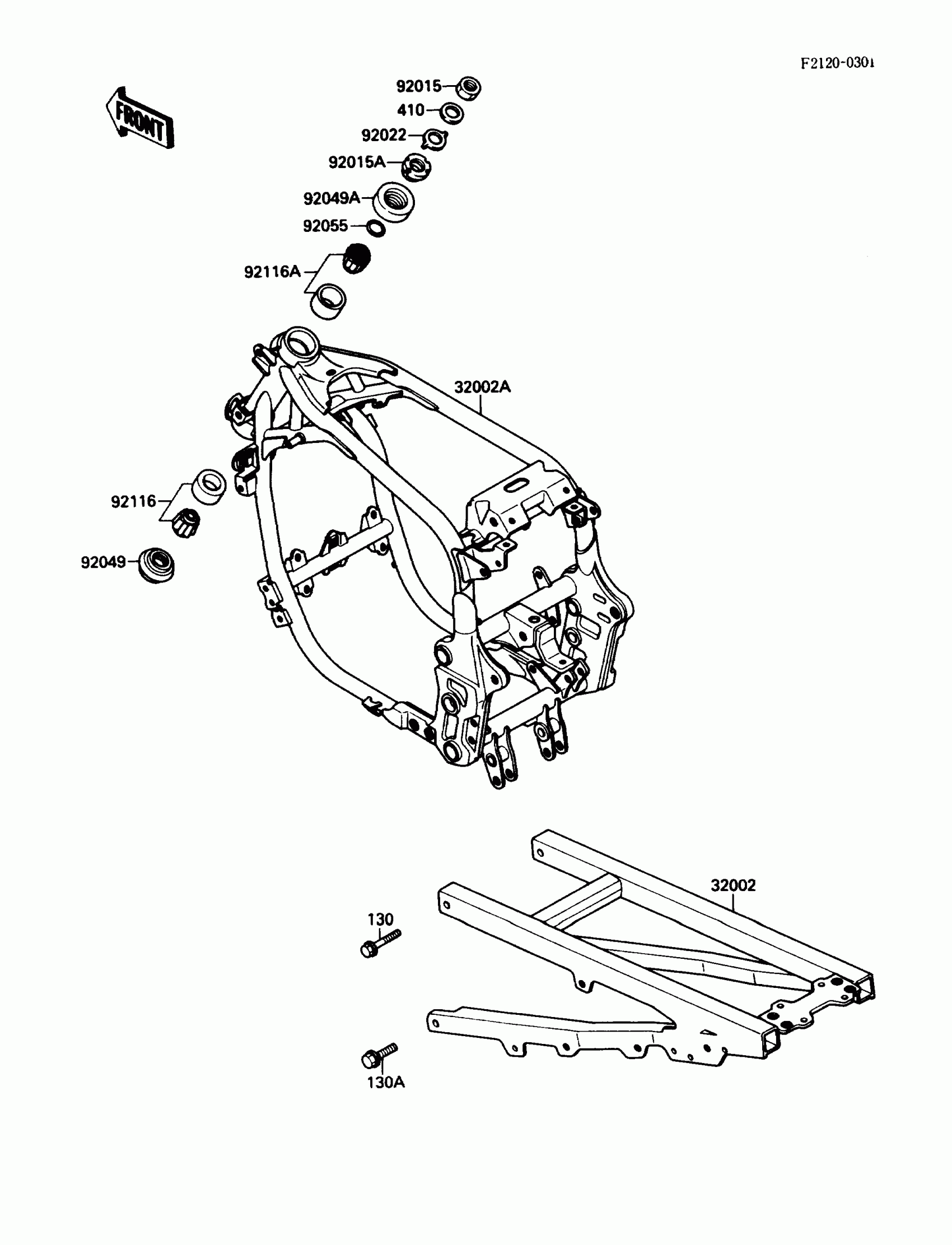

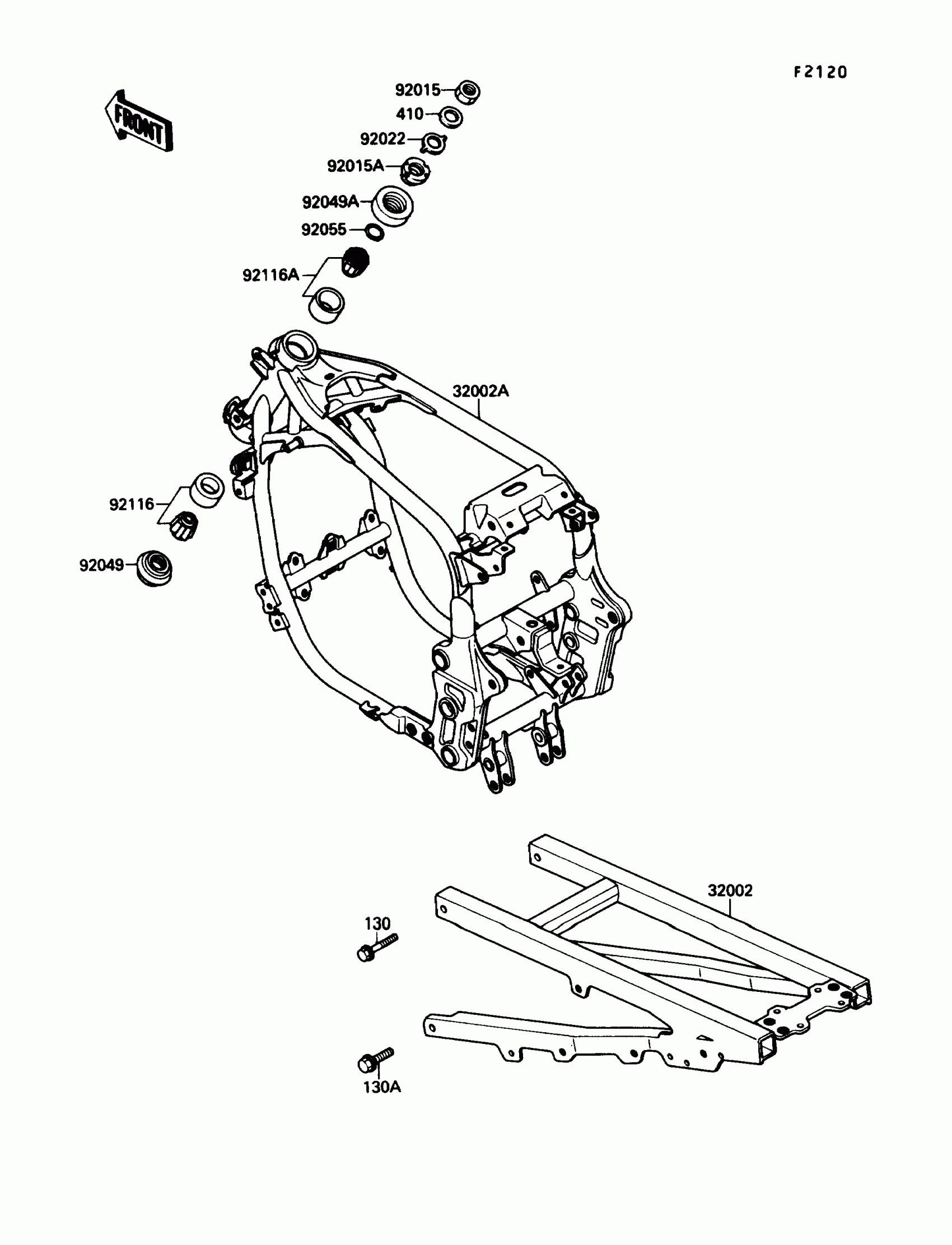

Kawasaki Ninja® 750R Frame Diagram

Description

Price

130

BOLT-FLANGED,8X30

130J0830

Unavailable

130A

BOLT-FLANGED,10X20

130J1020

Unavailable

410

W-PLAIN-S

410F1800

Unavailable

32002

FRAME-COMP,AL,RR

32002-1917

$793.72

32002A

FRAME-COMP,FR

32002-1945

$1,801.69

92015

NUT,18MM

92015-1404

$21.97

92015A

NUT,25MM,T=12

92015-1546

$19.66

92022

WASHER,CLAW,18.5X30X2.3

92022-1555

$7.49

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92049A

SEAL-OIL,STEERING STEM

92049-1214

$12.66

92055

RING-O,24.7MM

92055-1160

$3.57

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92116A

BEARING-ROLLER,HI-CAP32005JR-1

92116-1056

$43.76
