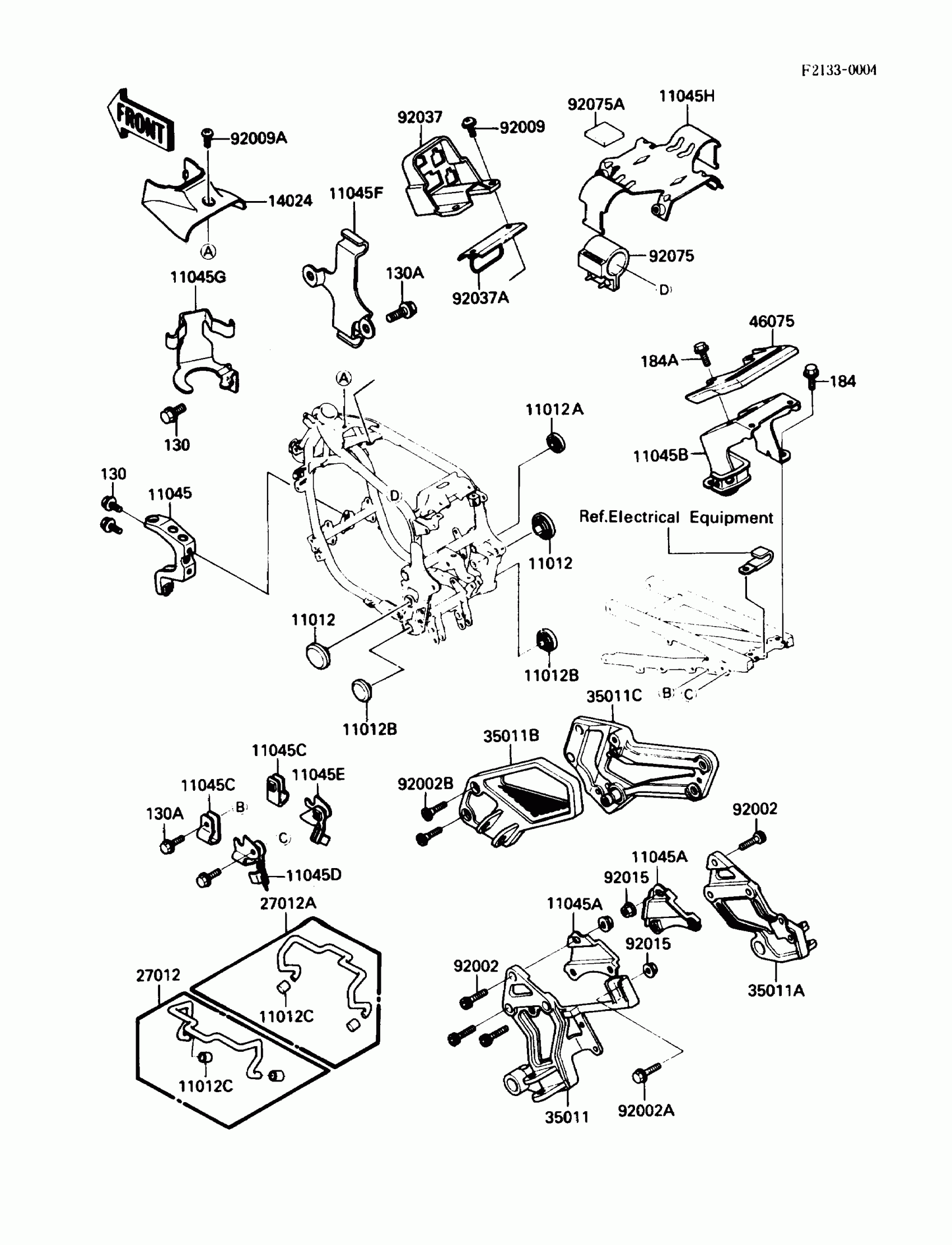

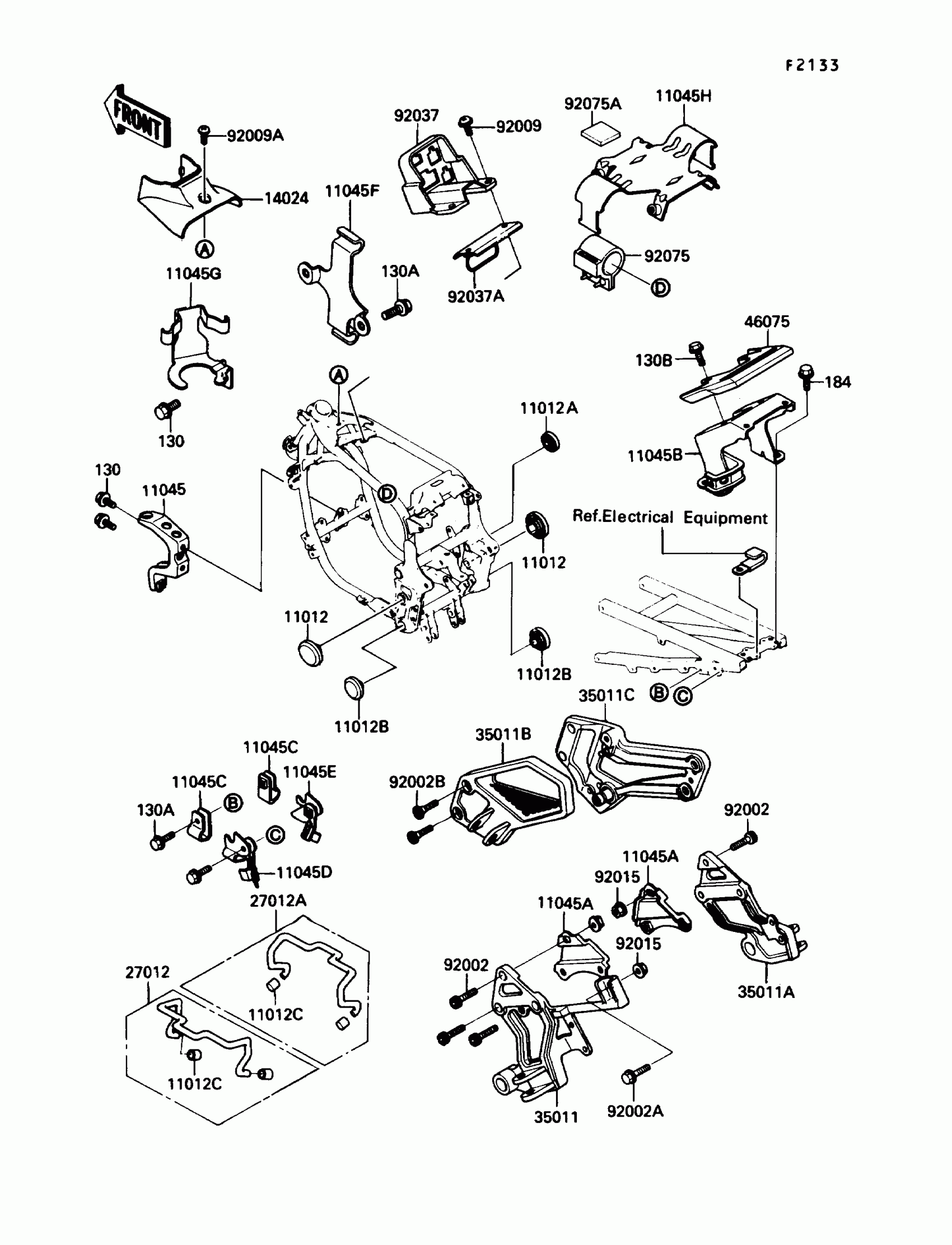

Kawasaki Ninja® 750R Electro Bracket Diagram

#

Description
Price

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

184

BOLT-UPSET-WP-SMALL

184J0820

$4.68

184A

BOLT-UPSET-WP-SMALL

184J0830

$5.05

11012

CAP,SWING ARM BRACKET

11012-1459

$10.63

11012A

CAP,SWING ARM BRACKET

11012-1557

Unavailable

11012B

CAP,SWING ARM BRACKET

11012-1558

$11.42

11012C

CAP,BUNGEE CORD HOOK

11012-1598

Unavailable

11045

BRACKET,RADIATOR

11045-1271

Unavailable

11045A

BRACKET,MUFFLER STAY

11045-1284

Unavailable

11045B

BRACKET,TAIL GRIP

11045-1285

Unavailable

11045C

BRACKET,HOOK

11045-1286

Unavailable

11045D

BRACKET,HOOK,LH

11045-1287

Unavailable

11045E

BRACKET,HOOK,RH

11045-1288

Unavailable

11045H

BRACKET,IGNITION COIL

11045-1448

Unavailable

14024

COVER,HEAD GUSSET

14024-1416

Unavailable

27012

HOOK,BUNGEE CORD,LH

27012-1357

$17.07

27012A

HOOK,BUNGEE CORD,RH

27012-1358

$17.07

35011

STAY,MUFFLER,LH

35011-1312

Unavailable

35011A

STAY,MEFFLER,RH

35011-1313

Unavailable

35011B

STAY,FR,LH

35011-1314

$124.02

35011C

STAY,FR,RH

35011-1315

$124.02

46075

GRIP,TAIL

46075-1069

$119.43

92002

BOLT,SOCKET,8X22

92002-1334

$4.17

92002A

BOLT,FLANGED,8X20

92002-1417

$4.24

92002B

BOLT,SOCKET,8X20

92002-1493

$1.57

92009

SCREW,6X22,BLACK

92009-1251

$4.96

92009A

SCREW,6X10

92009-1402

$1.73

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92037

CLAMP,HARNESS COUPLER

92037-1864

$8.10

92037A

CLAMP,CABLE

92037-1865

$16.29

92075

DAMPER,IGNITION COIL

92075-1909

$11.08

92075A

DAMPER

92075-1925

$7.80

130

BOLT-FLANGED

130J0610

Unavailable

130

BOLT-FLANGED

130J0610

Unavailable

11045F

BRACKET,CANISTER

11045-1365

Unavailable

11045G

BRACKET,RETURN PUMP

11045-1366

Unavailable
