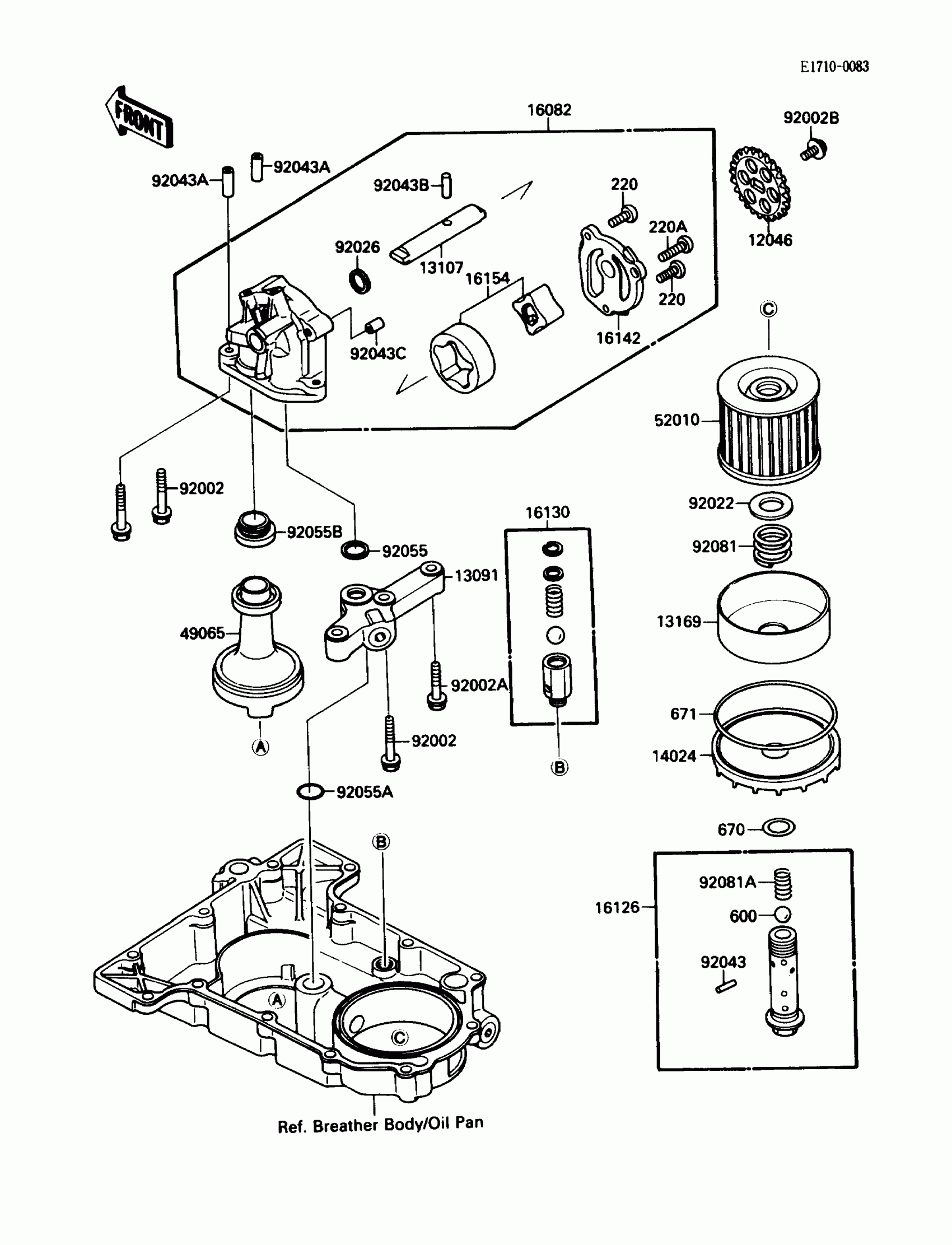

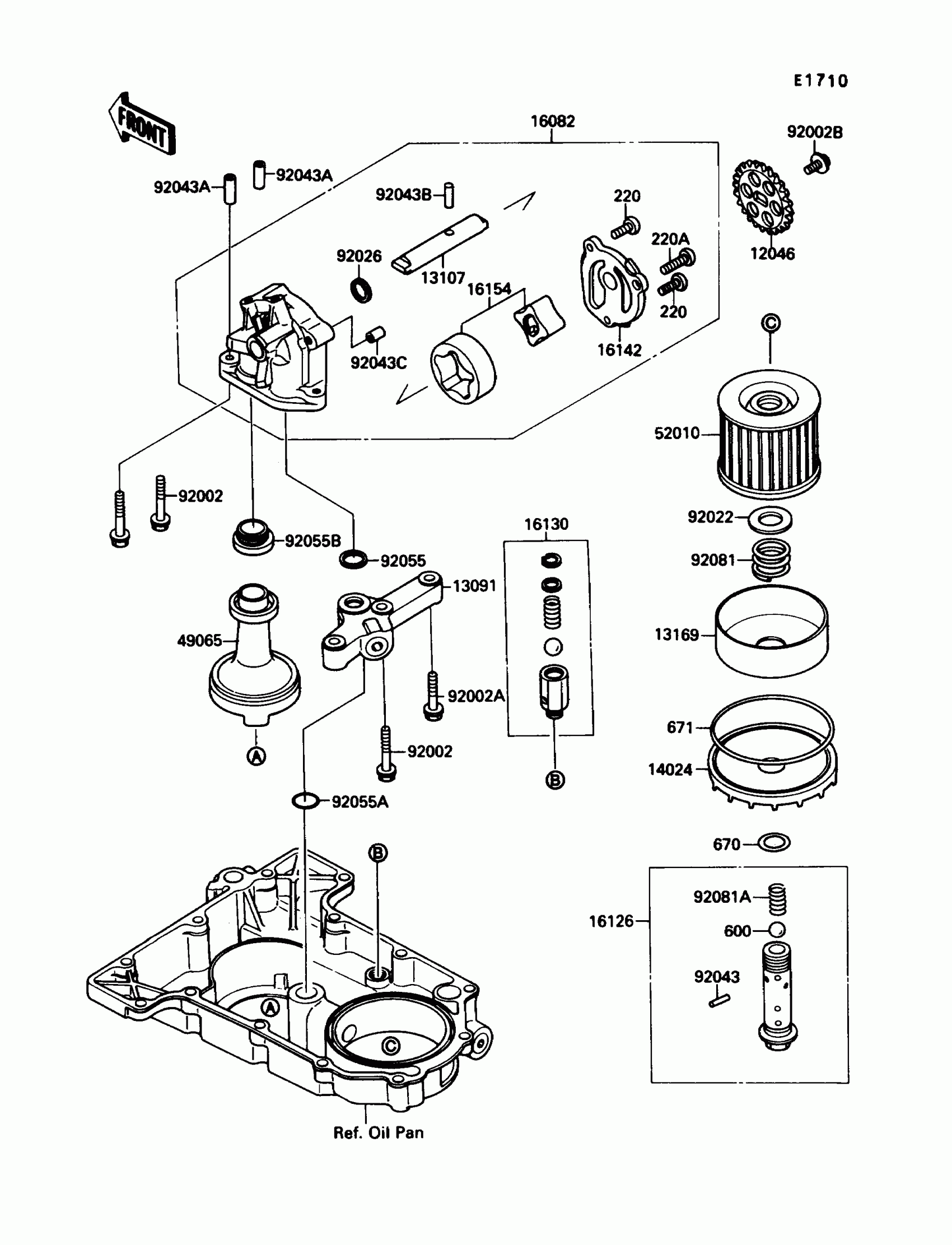

Kawasaki Ninja® 750R Oil Pump/Oil Filter Diagram

#

Description
Price

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,16MM

670B2016

$1.04

671

O RING,90MM

671B2590

$7.54

12046

SPROCKET,25T

12046-1093

Unavailable

13091

HOLDER,OIL PUMP

13091-1439

Unavailable

13107

SHAFT

13107-1199

Unavailable

13169

PLATE,OIL FILTER

13169-1110

$7.49

14024

COVER,OIL FILTER

16101-004

$39.50

16082

PUMP-ASSY-OIL

16082-1083

$215.81

16126

VALVE,OIL FILTER

16126-1108

$37.32

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP

16142-1075

Unavailable

16154

ROTOR-PUMP

16154-1063

$59.74

49065

FILTER-OIL

49065-1056

$25.63

52010

ELEMENT-OIL FILTER

16099-003

$9.28

92002

BOLT,6X38

92002-1431

$4.85

92002A

BOLT,6X30

92002-1797

$5.71

92002B

BOLT,6X14

92002-1859

Unavailable

92022

WASHER,20.5X30X1

92022-1012

$3.32

92026

SPACER

92026-1284

$5.47

92043

PIN,SPRING,2X20

92043-111

$5.46

92043A

PIN,6.2X8X21

92043-1335

$3.41

92043B

PIN

92043-1353

$4.63

92043C

PIN

92043-1354

$4.39

92055

RING-O,19.5MM

92055-077

$4.47

92055A

RING-O,16.3X3.5

92055-1353

Unavailable

92055B

RING-O,OIL FILTER

92055-1354

$7.25

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85
