1989 Kawasaki Ninja® 750R Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

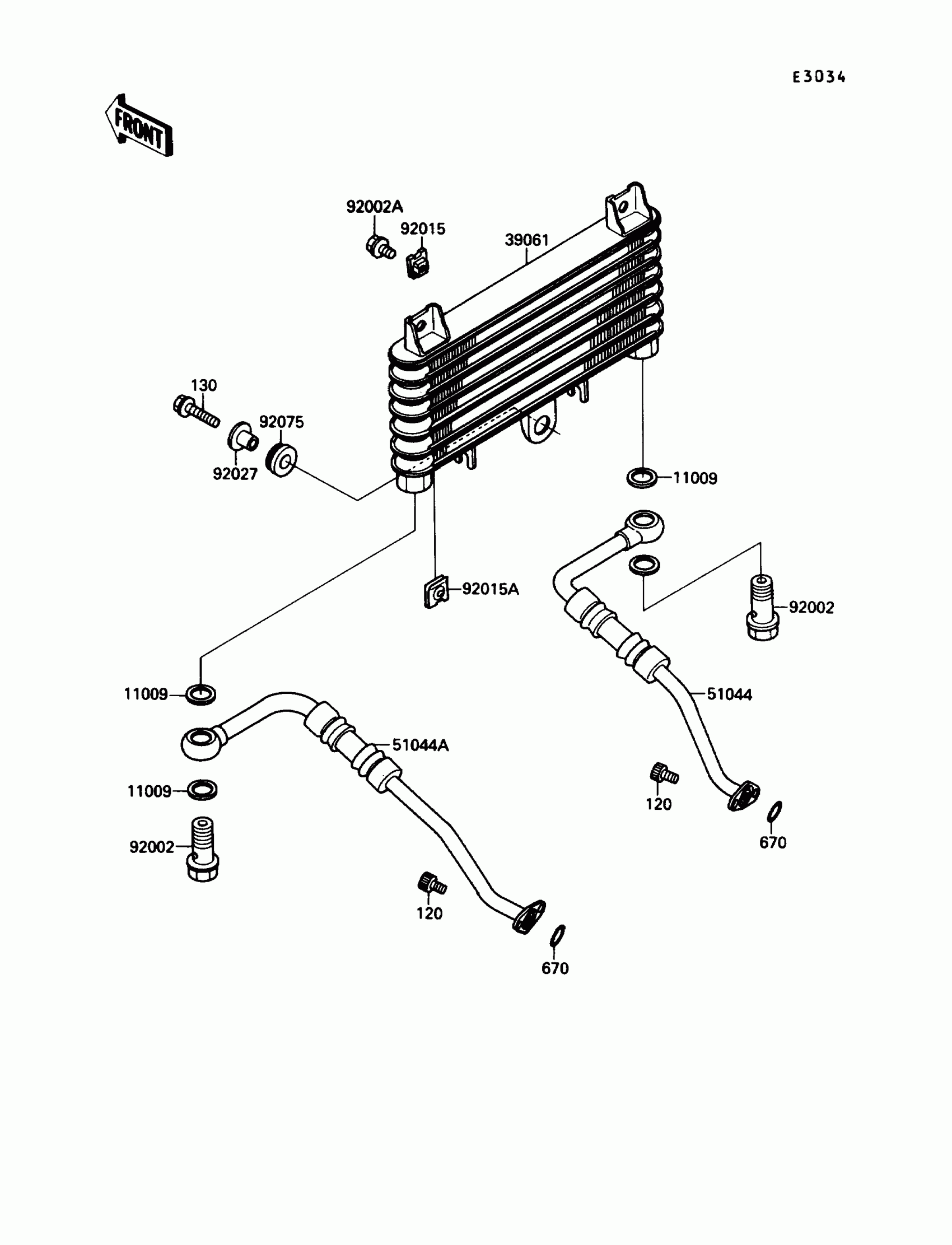

1989 Kawasaki Ninja® 750R Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock

11009

GASKET,14X19.5X1.4

11009-1461

1
Out of stock

39061

OIL COOLER

39061-1095

1
Out of stock

51044

TUBE-ASSY,UPP

51044-1076

1
Out of stock

51044A

TUBE-ASSY,LWR

51044-1077

1
Out of stock

92001

BOLT

92001-1825

1
Out of stock

92002

BOLT,14X28.5

92001-1930

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92015A

NUT,6MM

92015-1758

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock
