1989 Kawasaki Ninja® 750R Muffler Diagram

← All diagrams

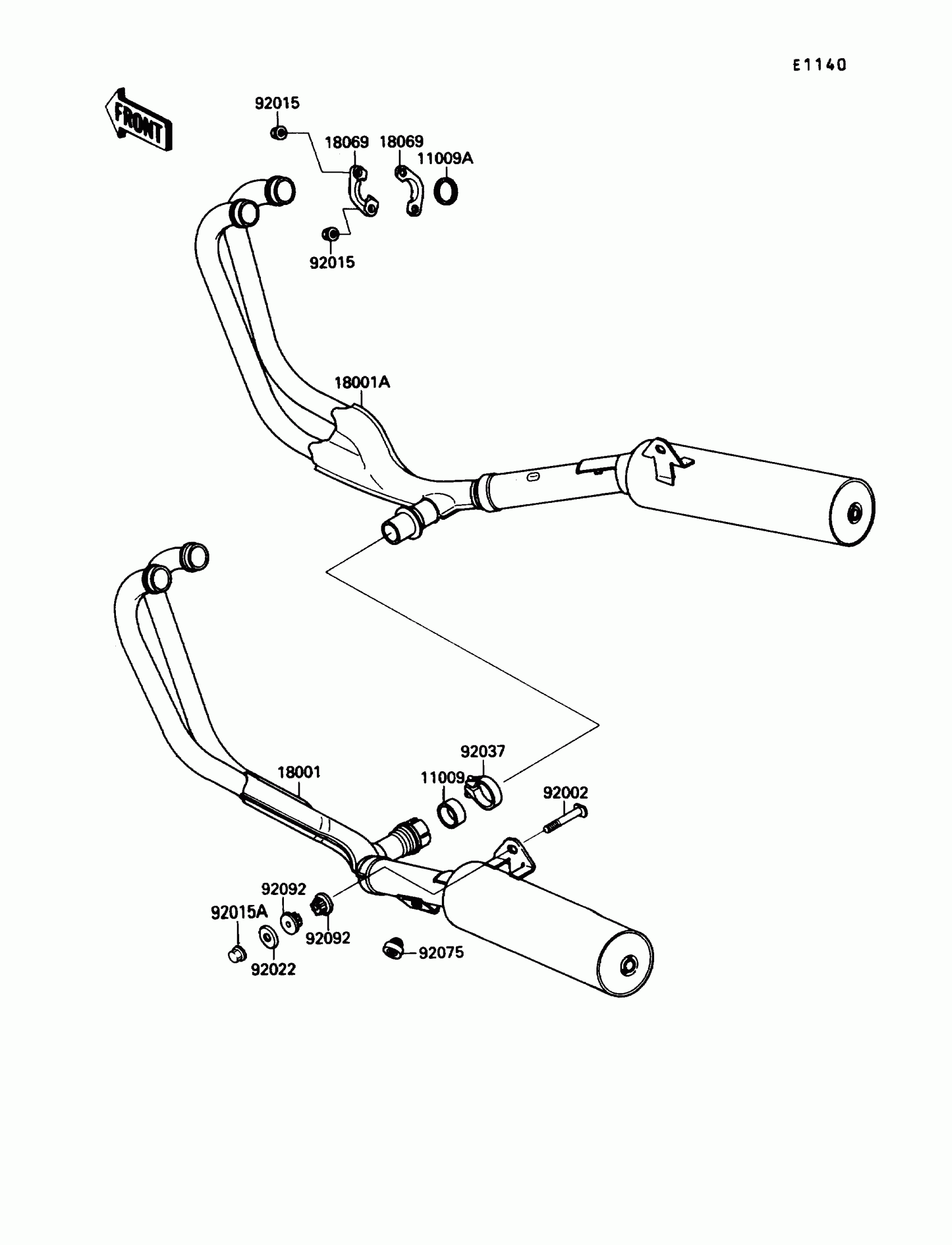

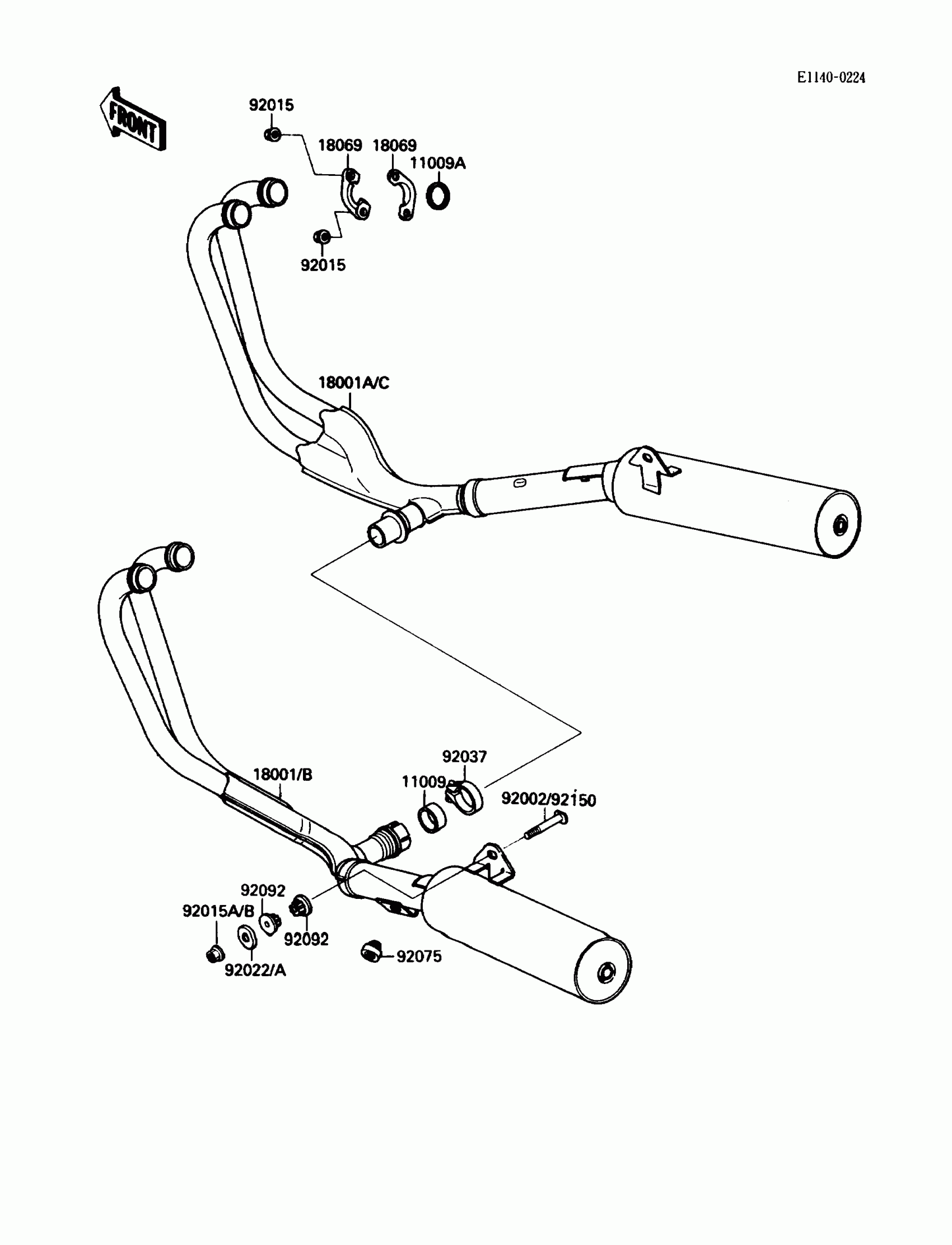

Find the part on the Muffler diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 750R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST MANUFOLD

11009-1659

1
Out of stock

11009A

1

$8.76

In stock

18001B

MUFFLER,LH

18001-1721

1

$875.72

In stock

18001C

MUFFLER,RH

18001-1722

1

$820.48

In stock

18069

HOLDER-EXHAUST PIPE

18069-1072

1

$23.68

In stock

92015

NUT,LOCK,8MM

92015-1380

1

$3.46

In stock

92015B

NUT,CAP,10MM

92015-1749

1
Out of stock

92022

1

$5.42

In stock

92037

CLAMP,MUFFLER,BLACK

92037-1270

1

$19.49

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92092

1

$13.70

In stock

92150

BOLT,10X55

92150-1225

1

$8.44

In stock
