1989 Kawasaki Ninja® 750R Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1989 Kawasaki Ninja® 750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

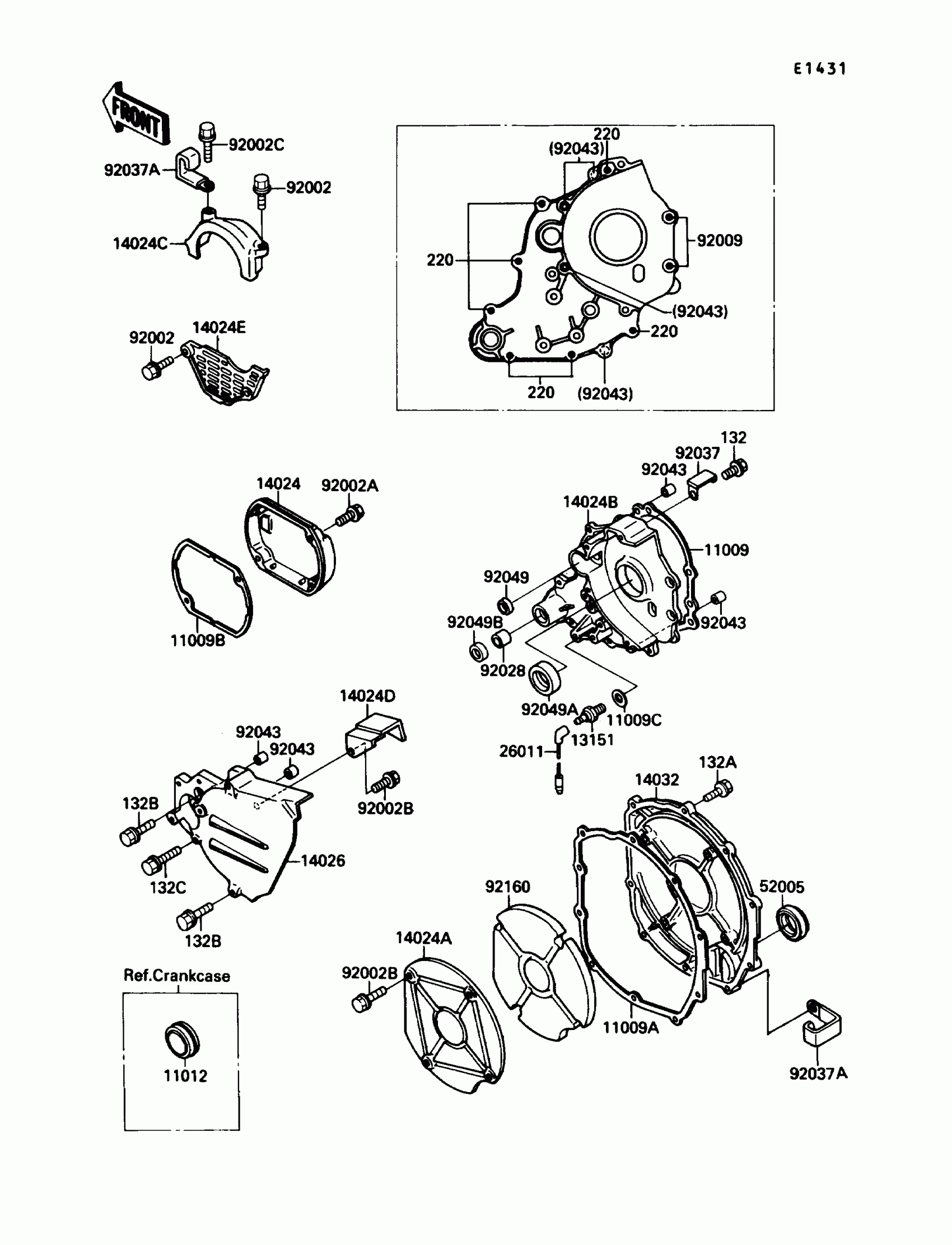

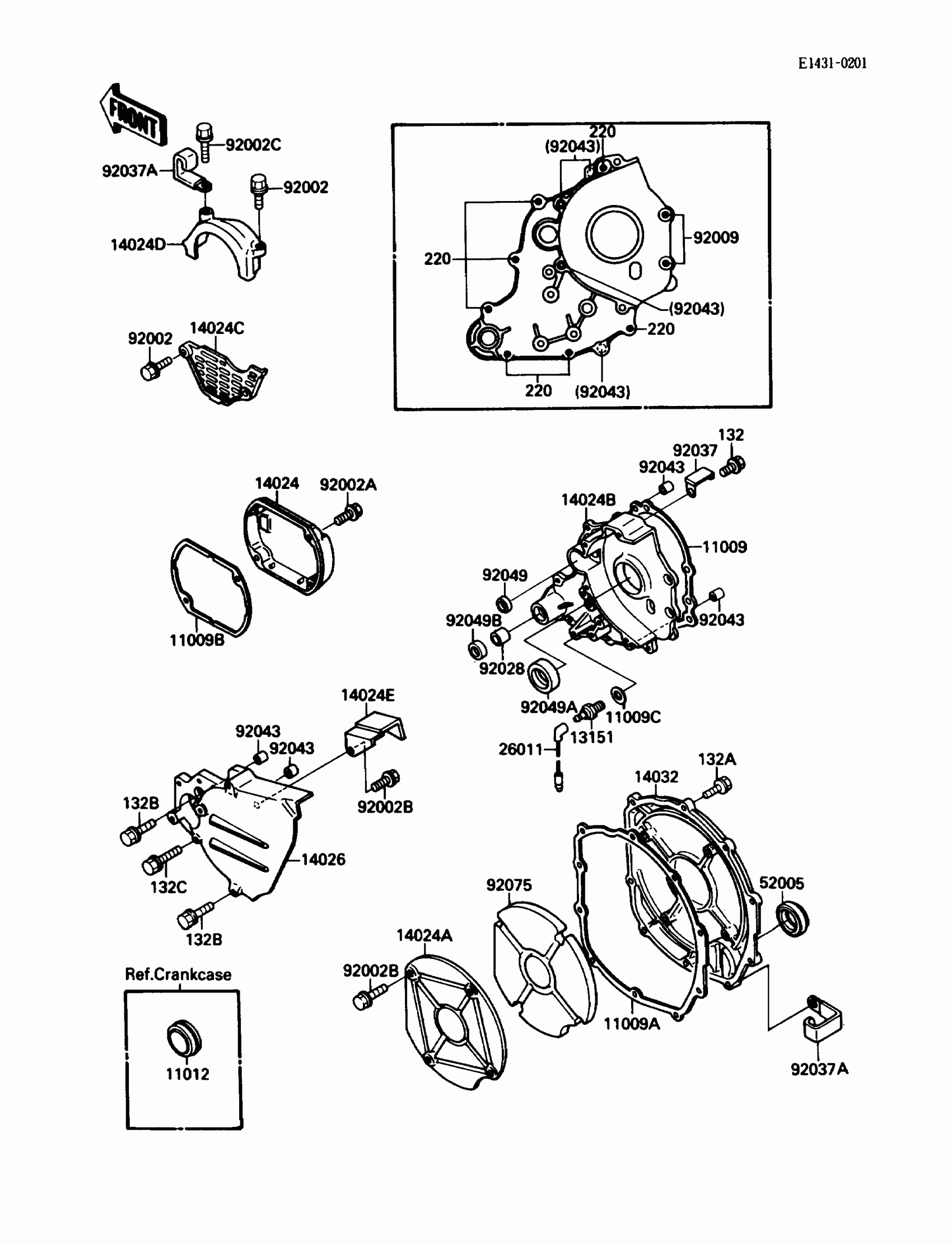

1989 Kawasaki Ninja® 750R Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132W0610

1
Out of stock

132A

BOLT-FLANGED-SMALL

132W0620

1
Out of stock

132B

BOLT-FLANGED-SMALL

132W0645

1
Out of stock

132C

BOLT-FLANGED-SMALL

132W0655

1
Out of stock

220

1

$4.61

In stock

11009

GASKET,TRANSMISSION COVER

11009-1600

1
Out of stock

11009A

GASKET,CLUTCH COVER

11009-1601

1
Out of stock

11009B

GASKET,PULSING COIL COVER

11009-1603

1
Out of stock

11009C

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

11012

CAP,LH,RCA378

11012-1540

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

14024

COVER,RH

14024-1299

1
Out of stock

14024A

COVER,SOUND ARRESTER

14024-1301

1
Out of stock

14024B

COVER,TRANSMISSION

14024-1305

1
Out of stock

14024C

COVER,GENERATOR,SIDE

14024-1309

1
Out of stock

14024D

COVER,GENERATOR,UPP

14024-1310

1
Out of stock

14024E

COVER

14024-1376

1
Out of stock

14026

COVER-CHAIN

14026-1126

1
Out of stock

14032

COVER-CLUTCH

14032-1224

1
Out of stock

26011

WIRE-LEAD

26011-1384

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1057

1

$23.13

In stock

92002

BOLT,6X20

92002-1343

1

$5.71

In stock

92002A

BOLT,6X25

92002-1344

1
Out of stock

92002B

BOLT,6X10

92002-1449

1

$3.68

In stock

92002C

BOLT,6X30

92002-1534

1
Out of stock

92009

SCREW,6X20

92009-1447

1
Out of stock

92028

BUSHING,13X15X20

92028-1251

1

$12.03

In stock

92037

CLAMP,LEAD WIRE

92037-1876

1
Out of stock

92037A

CLAMP

92037-1877

1

$5.71

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,SC32487

92049-1033

1
Out of stock

92049B

SEAL-OIL,TB13205

92049-1186

1
Out of stock

92075

1

$146.50

In stock
