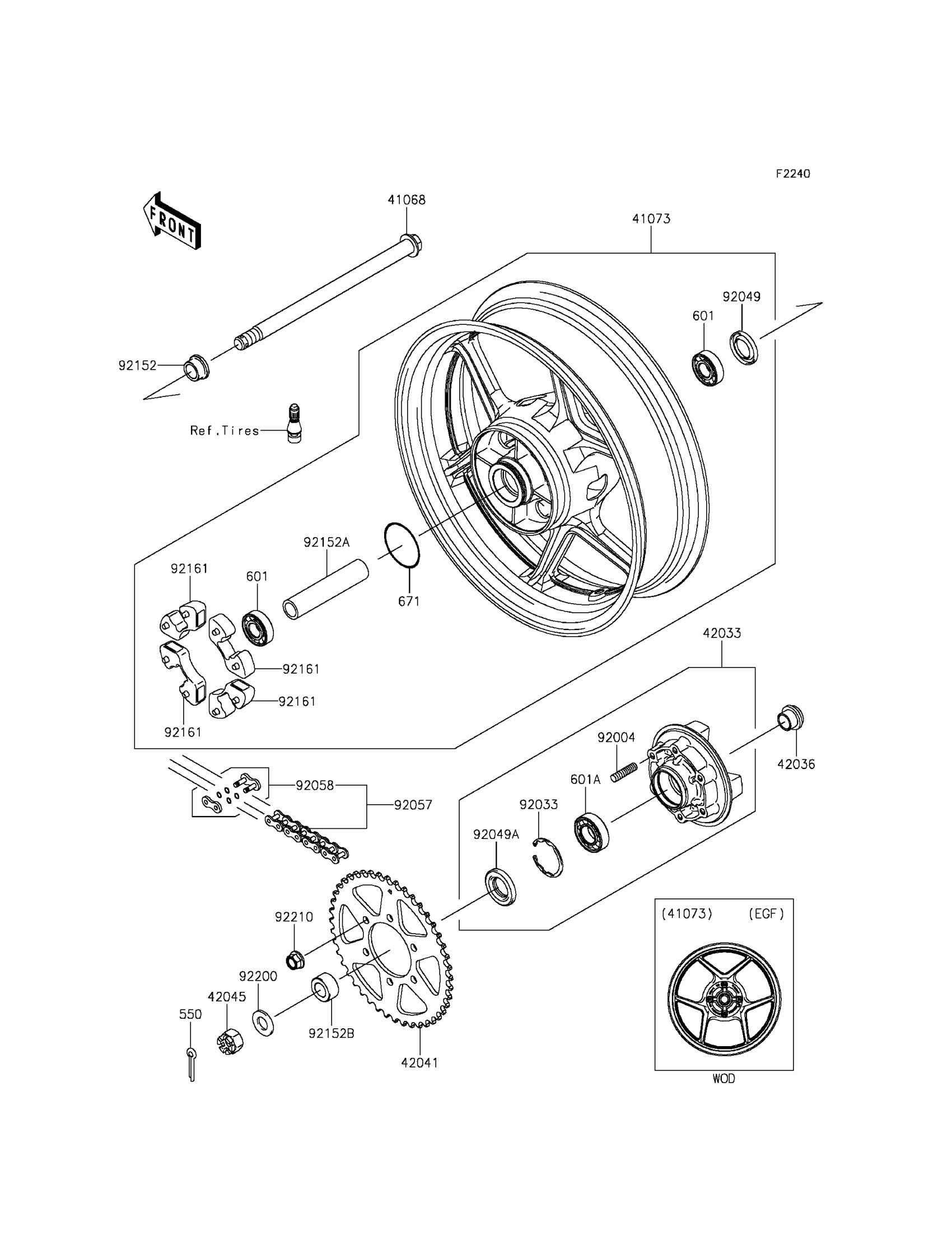

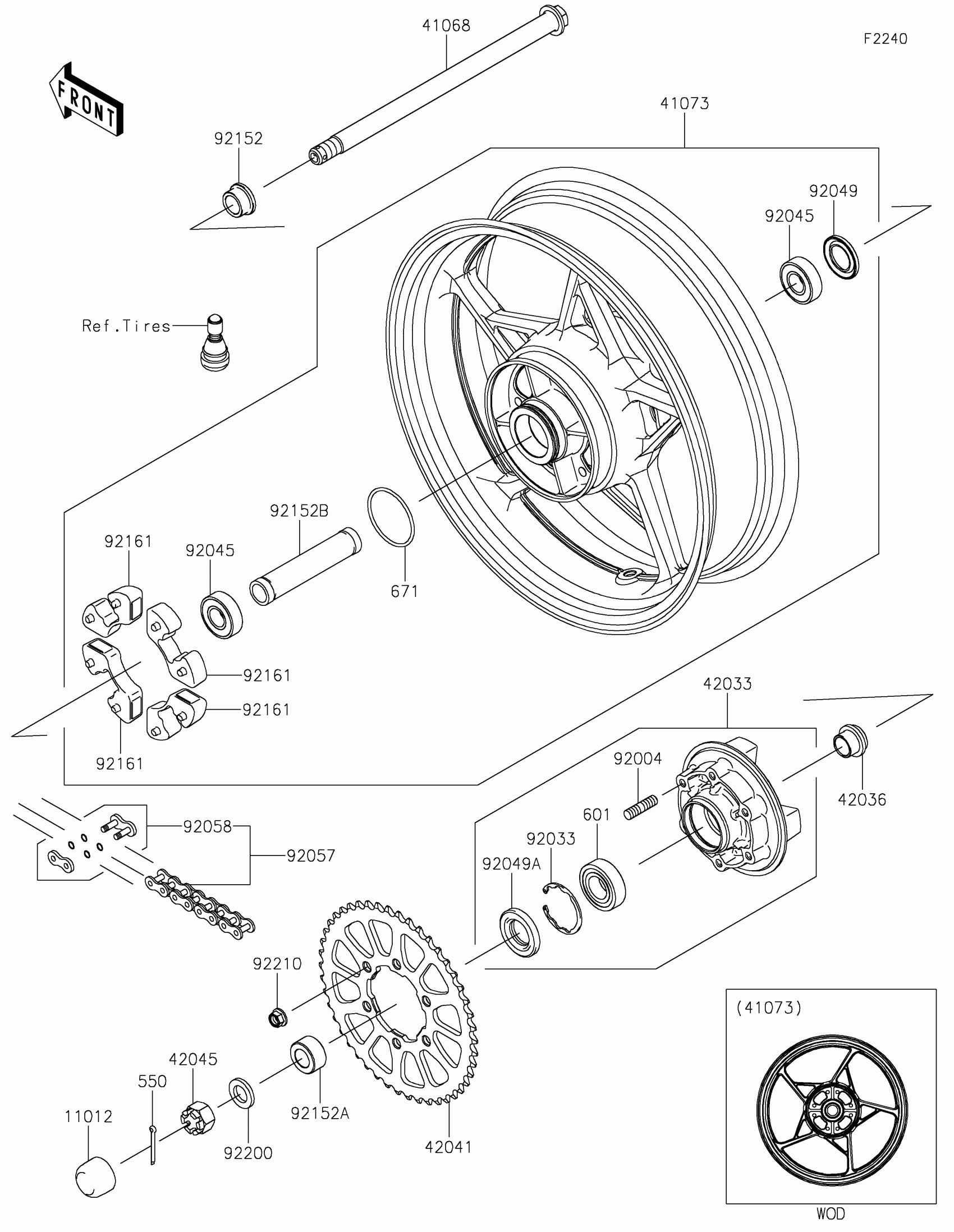

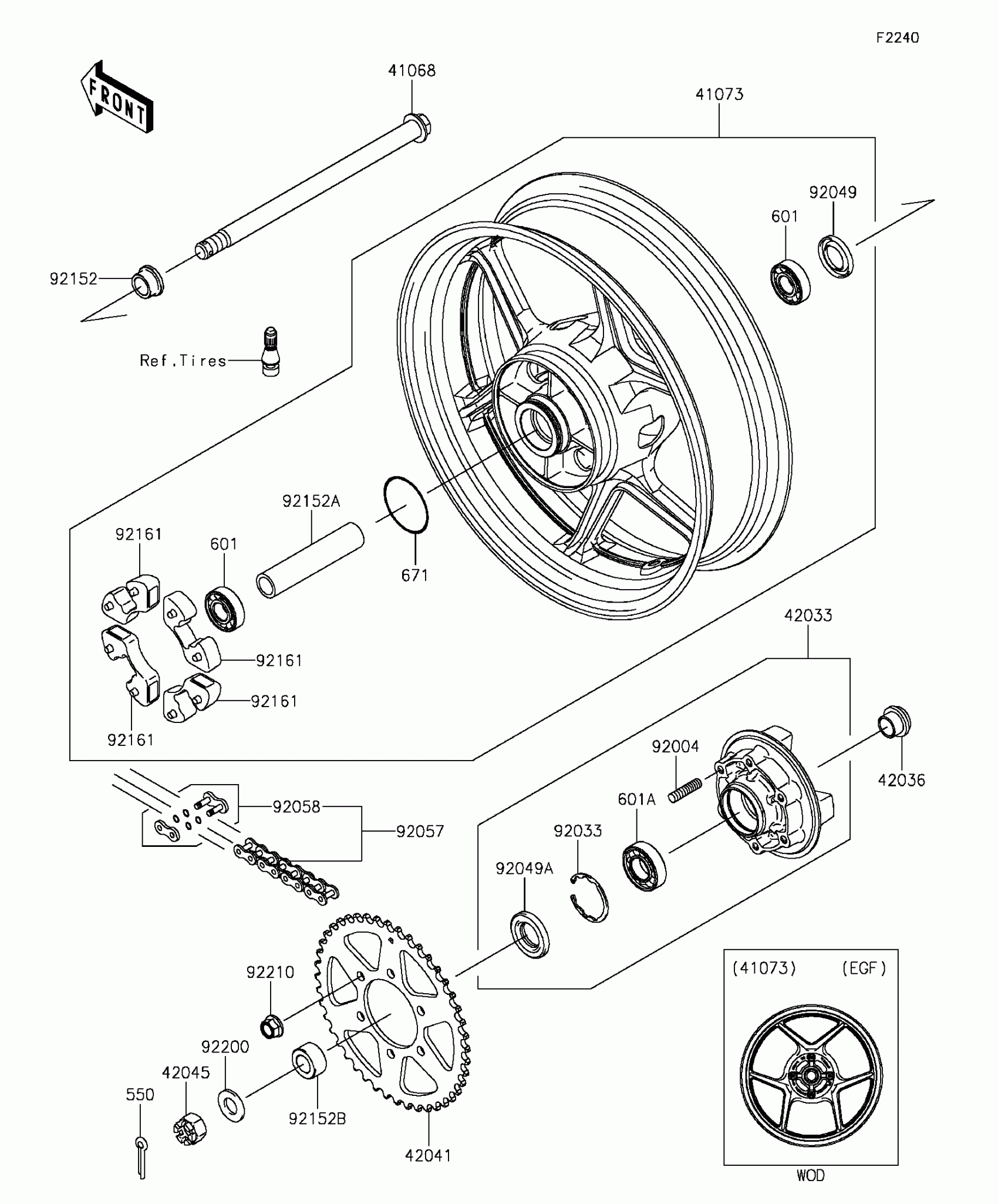

Kawasaki Ninja® 650 Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-0054

$48.01

41073

WHEEL-ASSY,RR,G.BLACK

41073-0568-QT

$897.17

42033

COUPLING-ASSY,RR HUB

42033-0570

$235.46

42036

SLEEVE,RR HUB,L=23

42036-1251

$21.23

42041

SPROCKET-HUB,46T

42041-0087

$69.55

42045

NUT,CASTLE,18MM

42045-018

$7.01

92004

STUD,10X19

92004-0048

$6.48

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,28 47 5

92049-0140

$6.44

92049A

SEAL-OIL

92049-1287

$9.95

92057

CHAIN,DRIVE,DID520VP2X114L

92057-0163

$240.29

92058

JOINT-CHAIN,DRIVE

92058-0018

$12.44

92152

COLLAR,RR AXLE,RH,L=17

92152-0302

$12.81

92152A

COLLAR,20.2X28X133

92152-0748

$24.78

92152B

COLLAR,20X35X18

92152-0751

$18.36

92161

DAMPER,SHOCK,RR HUB

92161-0303

$12.05

92200

WASHER,19X36X3.2

92200-0296

$1.85

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,6204UUC3

601B6204UU

$26.51

601A

BEARING-BALL

601B6205UU

$26.20

671

O RING,60MM

671B2560

$5.13
