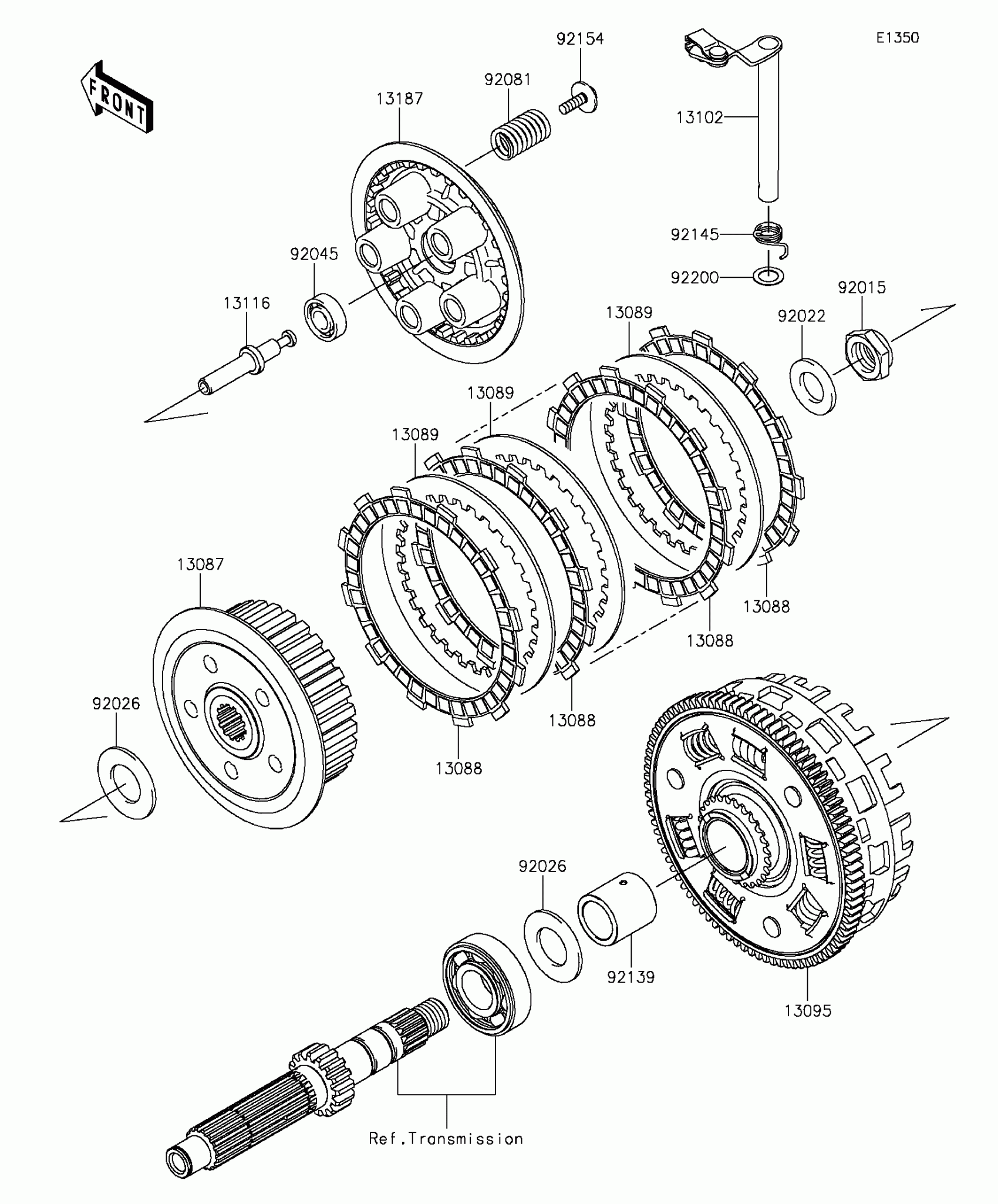

Kawasaki Ninja® 650 Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-0046

$149.30

13088

PLATE-FRICTION

13088-1105

$12.27

13089

PLATE-CLUTCH,T=2.3

13089-0016

$10.10

13095

HOUSING-COMP-CLUTCH

13095-0559

$435.07

13102

RELEASE-COMP-CLUTCH

13102-0037

$45.93

13116

ROD-PUSH

13116-0035

$20.41

13187

PLATE-CLUTCH OPERATING

13187-0017

$82.13

92015

NUT,20MM

92015-1555

$10.37

92022

WASHER,20.3X36X3.7

92022-1868

$7.55

92026

SPACER,25.5X47X2.5

92026-0716

$10.73

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.85

92081

SPRING,CLUTCH

92081-1033

$5.88

92139

BUSHING

92139-0710

$30.39

92145

SPRING,CLUTCH RELEASE

92145-0066

$6.02

92154

BOLT,UPSET-WP,6X20

92154-0079

$4.39

92200

WASHER,12X18.5X0.5

92200-1487

$2.25
