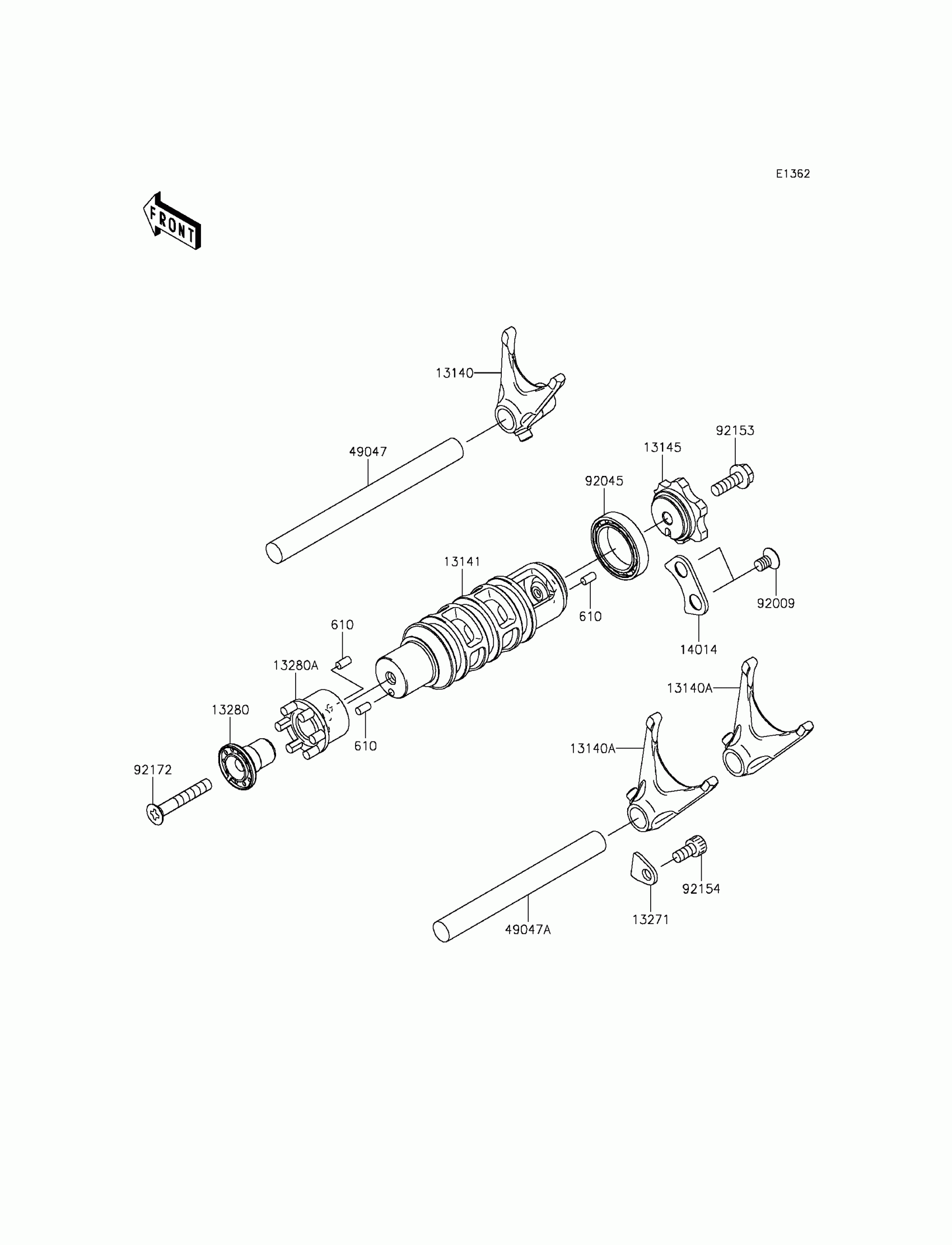

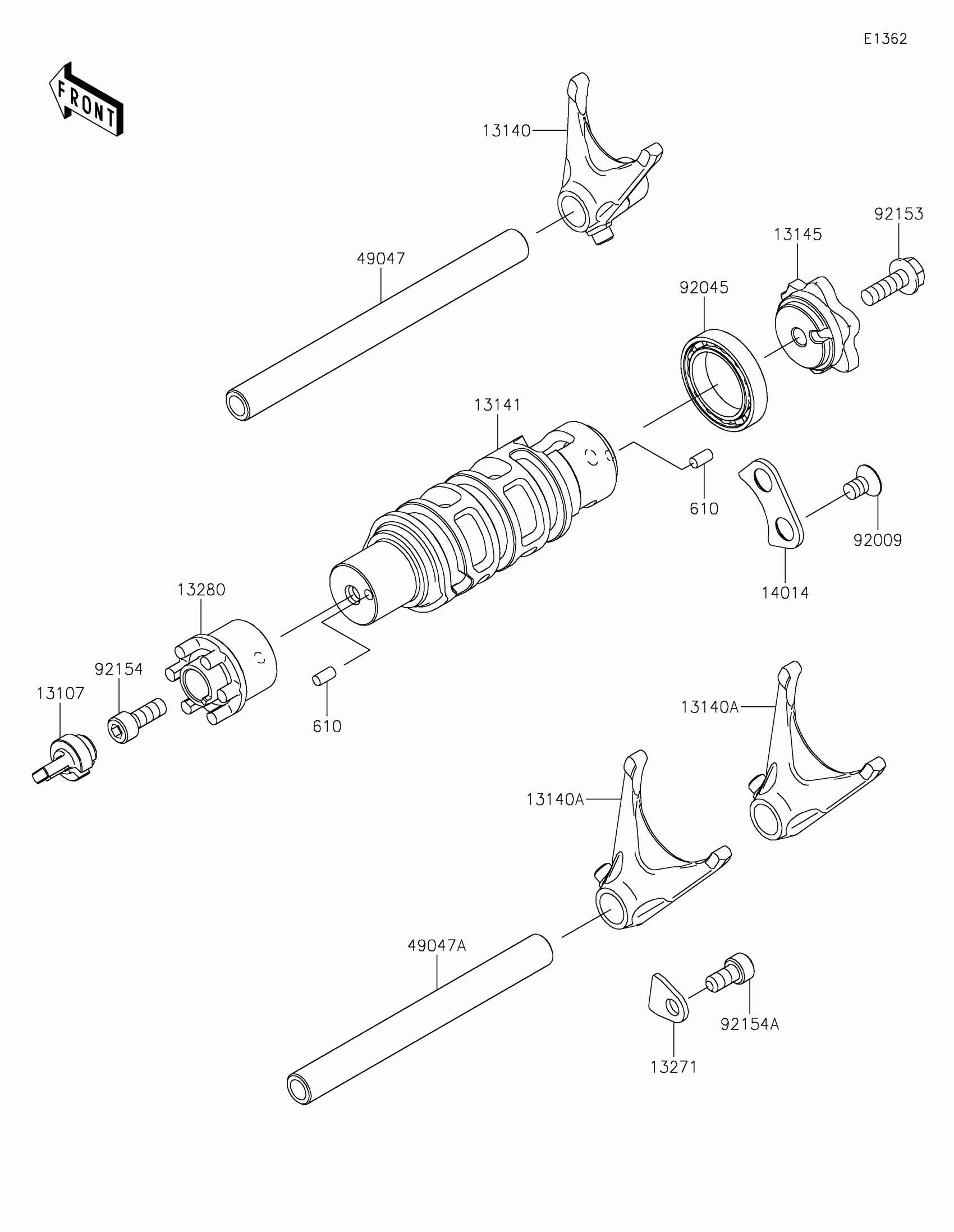

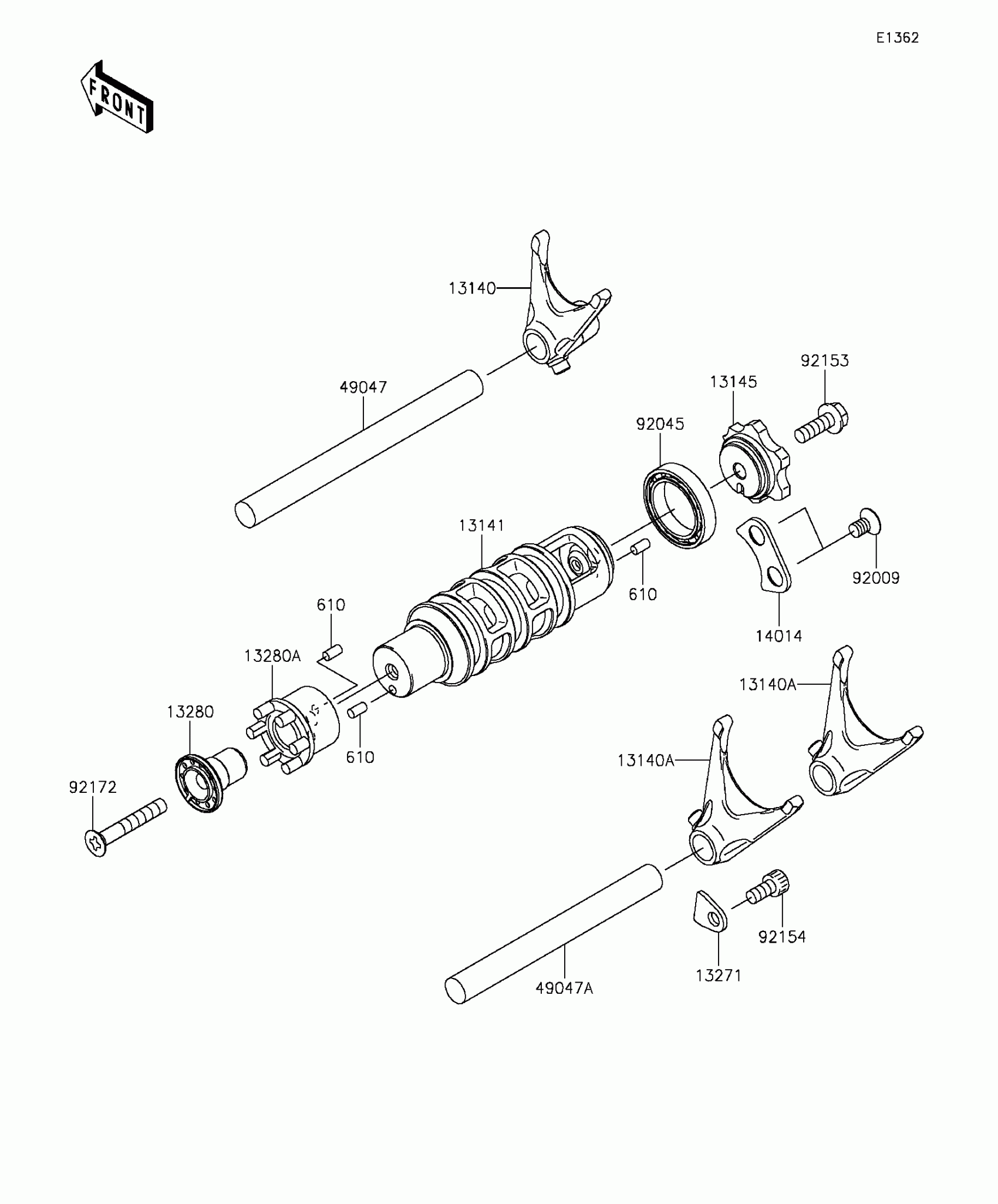

Kawasaki Ninja® 650 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,INPUT

13140-0025

$106.04

13140A

FORK-SHIFT,OUTPUT

13140-0026

$106.04

13141

DRUM-CHANGE

13141-0568

$86.21

13145

CAM-CHANGE DRUM

13145-0020

$38.57

13271

PLATE

13271-0626

$2.71

13280

HOLDER,NEUTRAL SWITCH

13280-0183

$32.44

13280A

HOLDER

13280-0192

$48.13

14014

PLATE-POSITION

14014-0018

$4.95

49047

ROD-SHIFT,INPUT

49047-0029

$25.24

49047A

ROD-SHIFT,OUTPUT

49047-0030

$21.90

92009

SCREW,6X10

92009-1375

$3.53

92045

BEARING-BALL,6805

92045-1122

$39.92

92153

BOLT,FLANGED,6X18

92153-0958

$2.15

92154

BOLT,SOCKET,6X12

92154-0812

$4.95

92172

SCREW-CSK-CROS,6X40

92172-0209

$2.15

610

ROLLER,4X8

610A0408

$3.29
