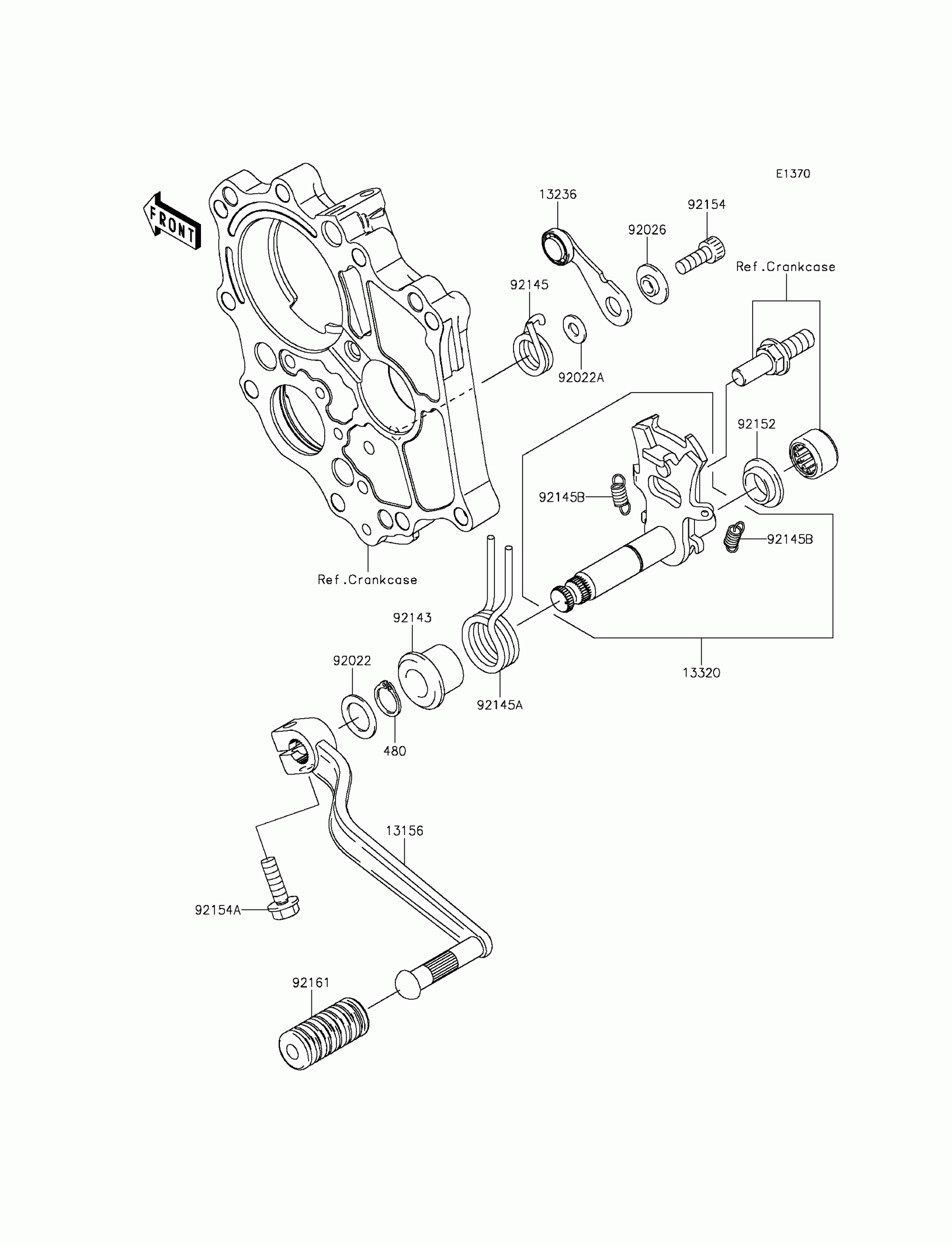

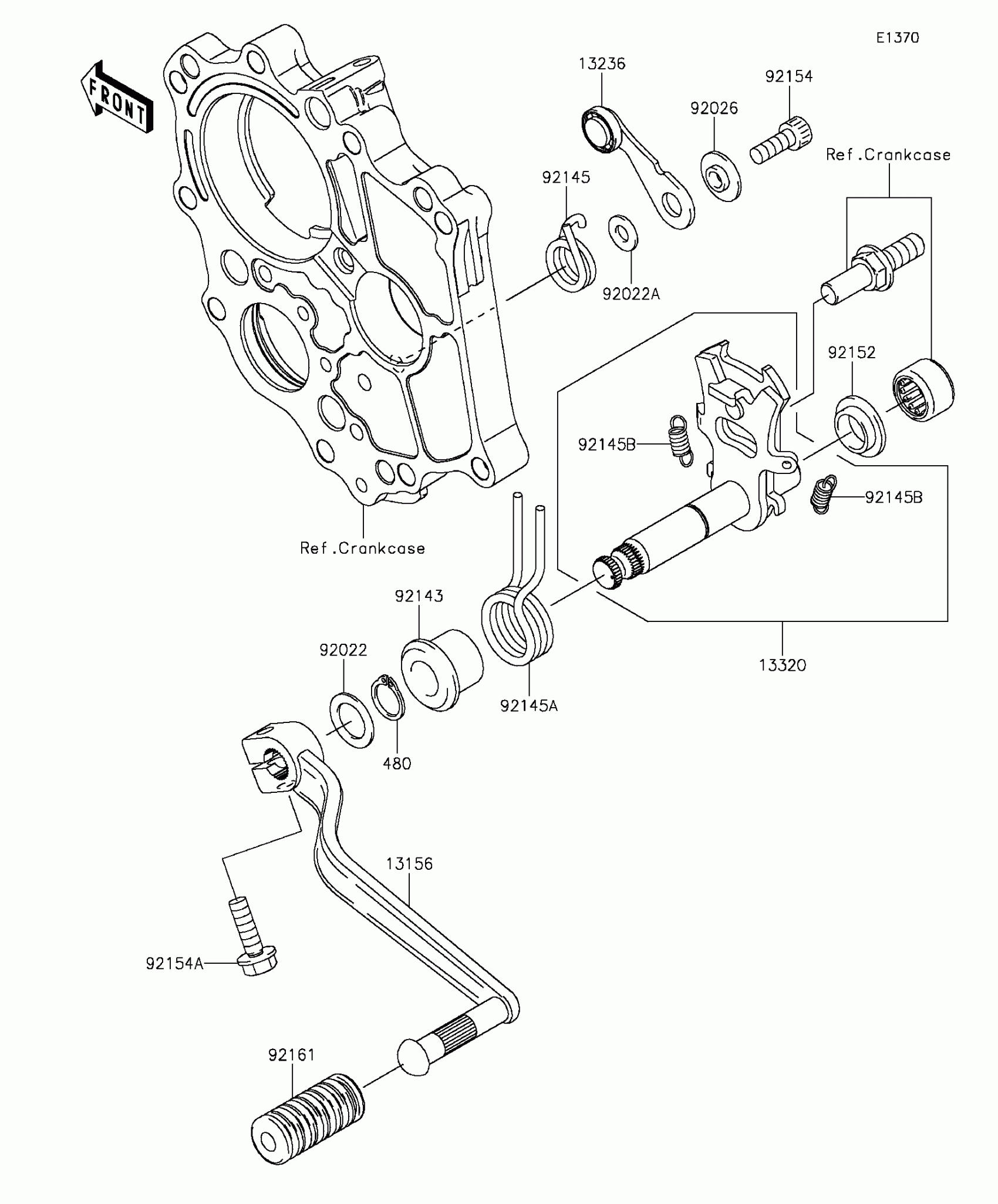

Kawasaki Ninja® 650 Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-0571

$45.16

13236

LEVER-COMP,POSITION

13236-0170

$9.03

13320

LEVER-ASSY,CHANGE SHAFT

13320-0019

$65.73

92022

WASHER,13.3X20X1

92022-1496

$3.12

92022A

WASHER,6X12.8X1.2

92022-1827

$3.72

92026

SPACER

92026-1217

$4.37

92143

COLLAR,RETURN SPRING

92143-1498

$8.44

92145

SPRING,POSITION

92145-0304

$3.08

92145A

SPRING,RETURN

92145-0326

$5.27

92145B

SPRING,5.5X0.7X18

92145-0703

$3.24

92152

COLLAR

92152-1075

$3.33

92154

BOLT,SOCKET,6X16

92154-0235

$2.41

92154A

BOLT,FLANGED,6X20

92154-0786

$2.44

92161

DAMPER,CHANGE PEDAL

92161-1300

$4.90

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.12
