2016 Kawasaki Ninja® 650 ABS Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

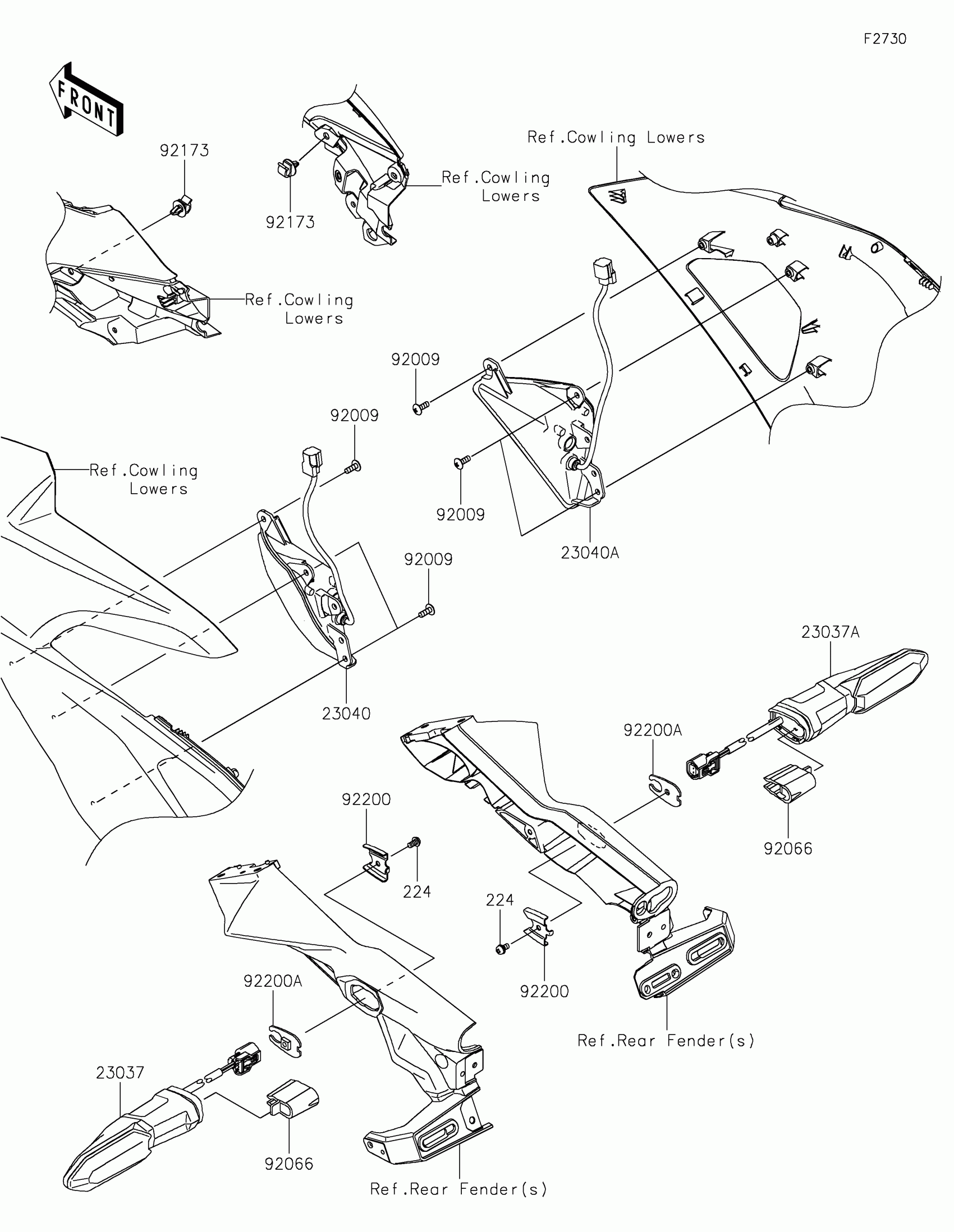

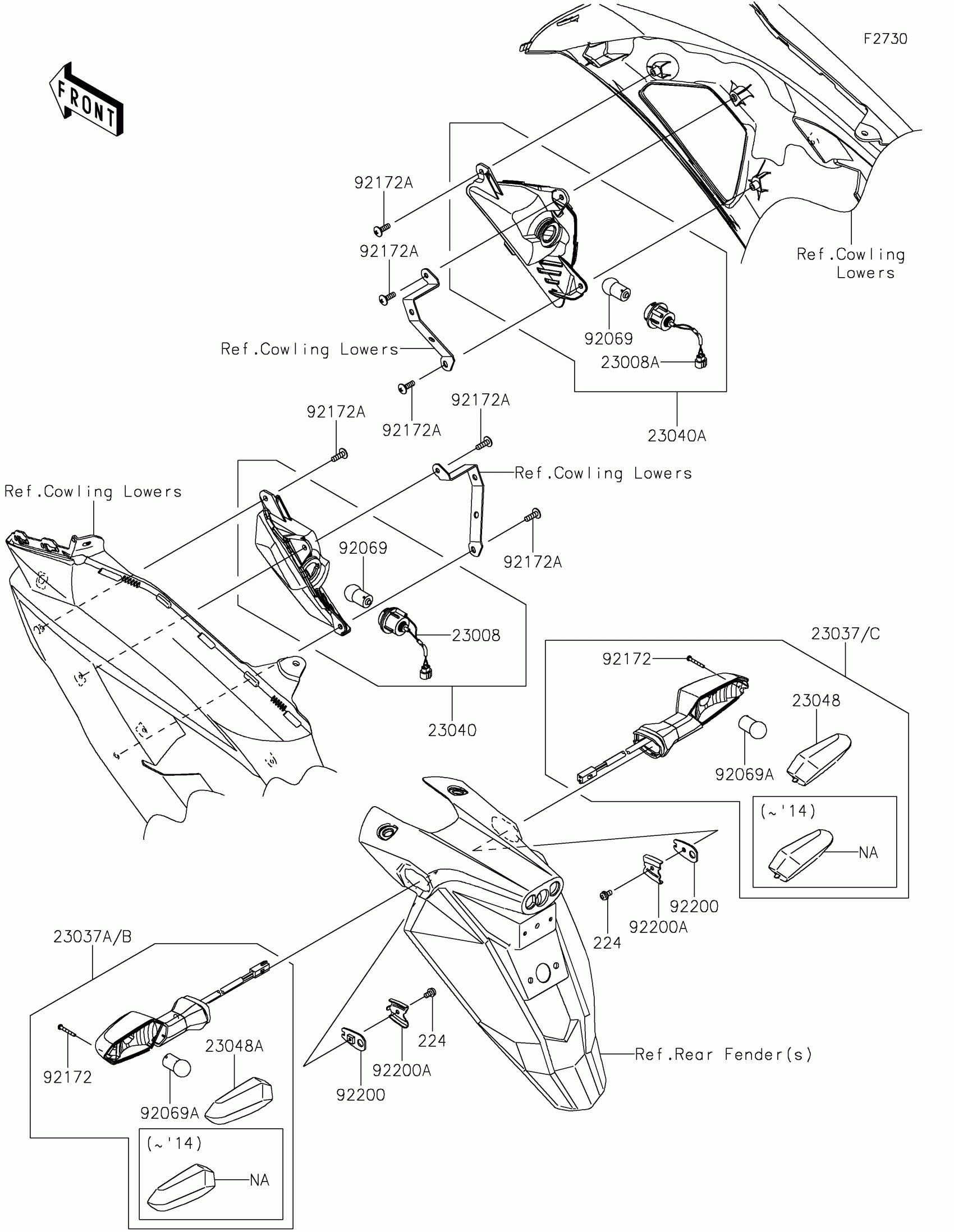

2016 Kawasaki Ninja® 650 ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23008

SOCKET-ASSY,FR,LH

23008-0128

1

$20.76

In stock

23008A

SOCKET-ASSY,FR RH

23008-0143

1

$20.76

In stock

23037B

1

$64.85

In stock

23037C

1

$64.85

In stock

23040

LAMP-SIGNAL,FR,LH

23040-0111

1

$68.60

In stock

23040A

LAMP-SIGNAL,FR,RH

23040-0112

1

$72.97

In stock

23048

LENS-SIGNAL LAMP

23048-0025

1

$11.98

In stock

23048A

LENS-SIGNAL LAMP

23048-0026

1

$11.98

In stock

92069

BULB,12V 10W

92069-0058

1

$6.15

In stock

92069A

BULB,12V 10W

92069-0076

1

$3.30

In stock

92172

SCREW,2.9X22

92172-0395

1

$3.27

In stock

92172A

SCREW,TAPPING,5X16

92172-0742

1

$1.66

In stock

92200

WASHER,SIGNAL LAMP

92200-0164

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-0165

1
Out of stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
