2016 Kawasaki Ninja® 650 ABS Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

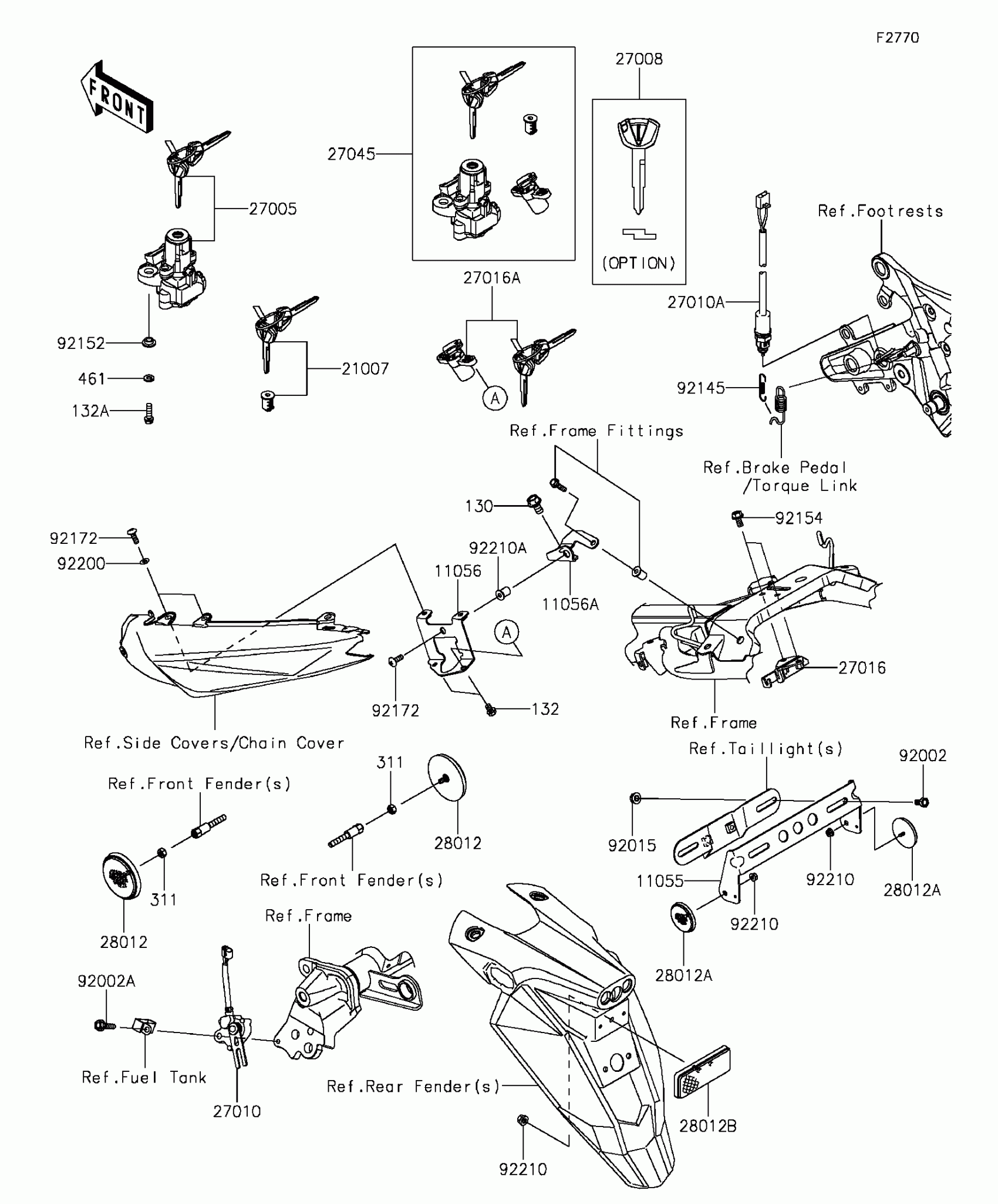

2016 Kawasaki Ninja® 650 ABS Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,REFLECTOR

11055-1092

1

$33.99

In stock

11056

BRACKET

11056-1923

1

$8.39

In stock

11056A

BRACKET

11056-1924

1

$5.42

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5068

1

$90.02

In stock

27005

1

$183.65

In stock

27008

KEY-LOCK,BLANK

27008-0069

1

$22.42

In stock

27010

SWITCH,SIDE STAND

27010-0722

1

$118.06

In stock

27010A

SWITCH,REAR BRAKE

27010-0723

1

$30.18

In stock

27016

1

$14.14

In stock

27016A

LOCK-ASSY,SEAT

27016-5372

1

$92.15

In stock

27045

SWITCH-ASSY

27045-5452

1

$418.08

In stock

28012

1

$22.37

In stock

28012A

REFLECTOR-REFLEX

28012-0002

1

$22.37

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

92002

BOLT,6X12

92002-1132

1

$1.32

In stock

92002A

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92145

SPRING,REAR BRAKE SWITCH

92145-0724

1
Out of stock

92152

COLLAR,6.15X10.15X6

92152-1535

1

$2.97

In stock

92154

BOLT,FLANGED,6X12

92154-1050

1

$1.68

In stock

92172

SCREW,5X16

92172-0322

1

$1.81

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

92210A

NUT,WELL,5MM

92210-0498

1
Out of stock

130

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock

132

1

$2.05

In stock

132A

1

$2.05

In stock

311

NUT-HEX,5MM

311AB0500

1

$0.49

In stock

461

WASHER-SPRING,6MM

461DA0600

1

$0.68

In stock
