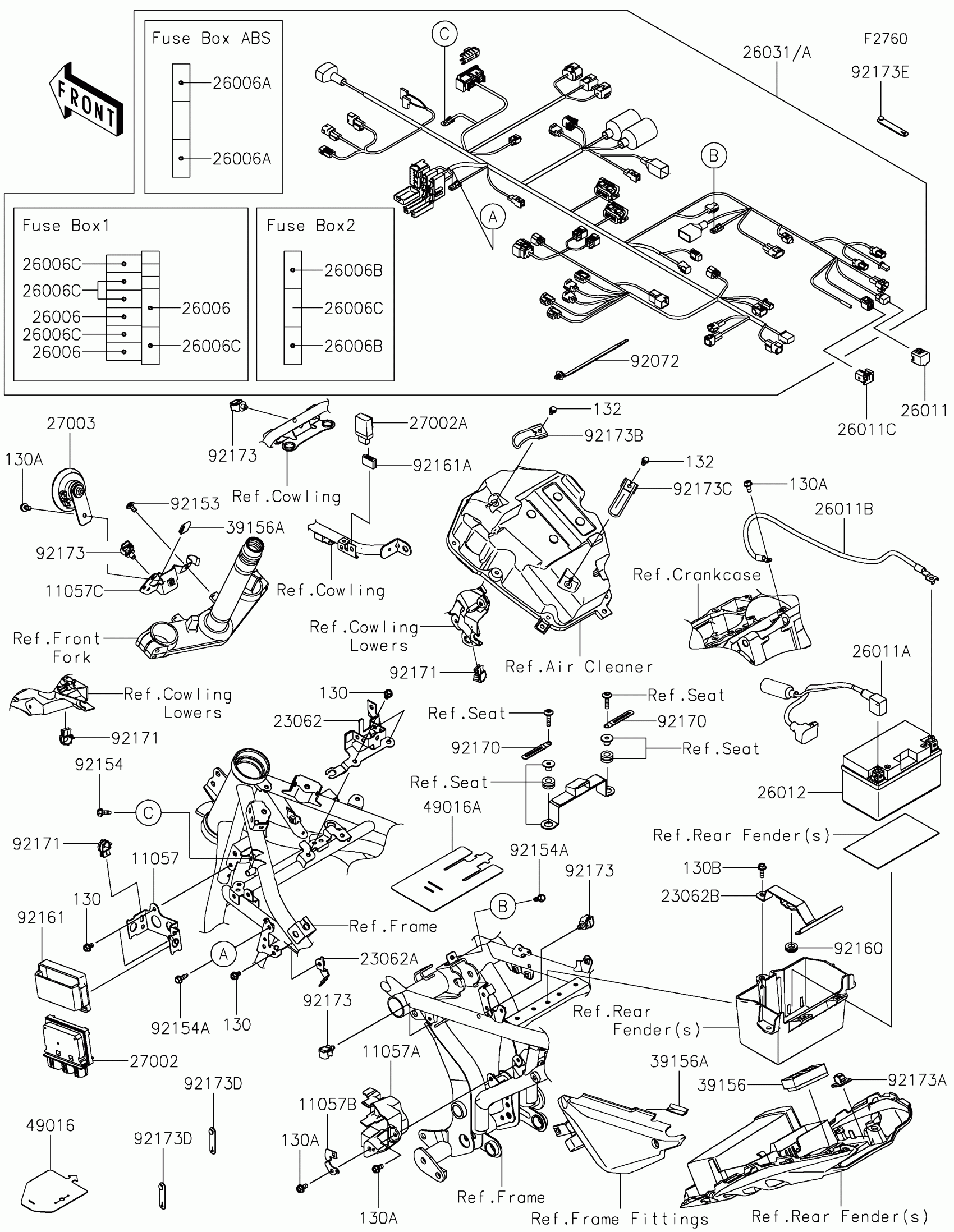

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

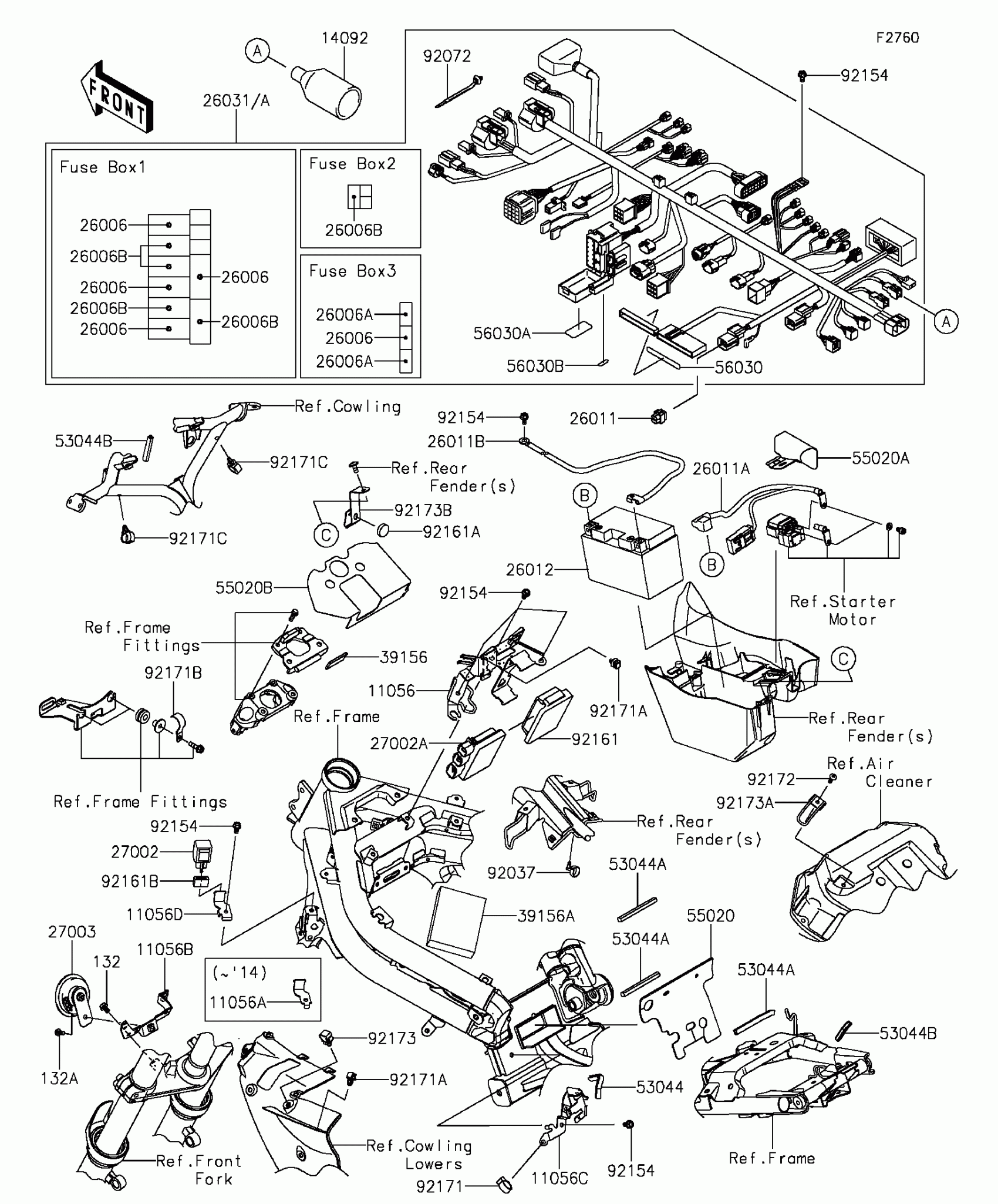

2025 Kawasaki Ninja® 650 ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RELAY BOX

11057-0122

1
Out of stock

11057A

BRACKET,MAGNETIC SW.

11057-0137

1
Out of stock

11057B

BRACKET,COUPLER

11057-0138

1
Out of stock

11057C

BRACKET,HORN

11057-0184

1
Out of stock

23062

BRACKET,VEHICLE DOWN SENSOR

23062-1258

1
Out of stock

23062A

BRACKET-COMP,FUSE BOX

23062-1259

1
Out of stock

23062B

BRACKET-COMP,BATTERY

23062-1269

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

1
Out of stock

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0980

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-0981

1
Out of stock

26011C

WIRE-LEAD,DIAG CONNECTOR

26011-1901

1
Out of stock

26012

BATTERY,YTZ10,12V 8.6AH

26012-1606

1
Out of stock

26031A

HARNESS,MAIN

26031-3996

1
Out of stock

27002

RELAY-ASSY

27002-0061

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0069

1
Out of stock

27003

HORN

27003-0065

1
Out of stock

39156

PAD,DIAGNOSTIC-CONNECTOR

39156-2627

1
Out of stock

39156A

PAD,40X15X2

39156-2639

1
Out of stock

49016

COVER-SEAL

49016-0645

1
Out of stock

49016A

COVER-SEAL,ECU CONNECTOR

49016-0672

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92153

BOLT,SOCKET,6X12

92153-1948

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92154A

BOLT,FLANGED,6X18

92154-4008

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92161

DAMPER,RELAY BOX

92161-0203

1
Out of stock

92161A

DAMPER,15X25X8.5

92161-1443

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92171

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP,DRAIN

92173-1055

1
Out of stock

92173B

CLAMP,A/C CASE,FR

92173-1586

1
Out of stock

92173C

CLAMP,A/C CASE,RR

92173-1587

1
Out of stock

92173D

CLAMP

92173-2198

1
Out of stock

92173E

CLAMP

92173-2199

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130B

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

132

1

$1.47

In stock
