2016 Kawasaki Ninja® 650 ABS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

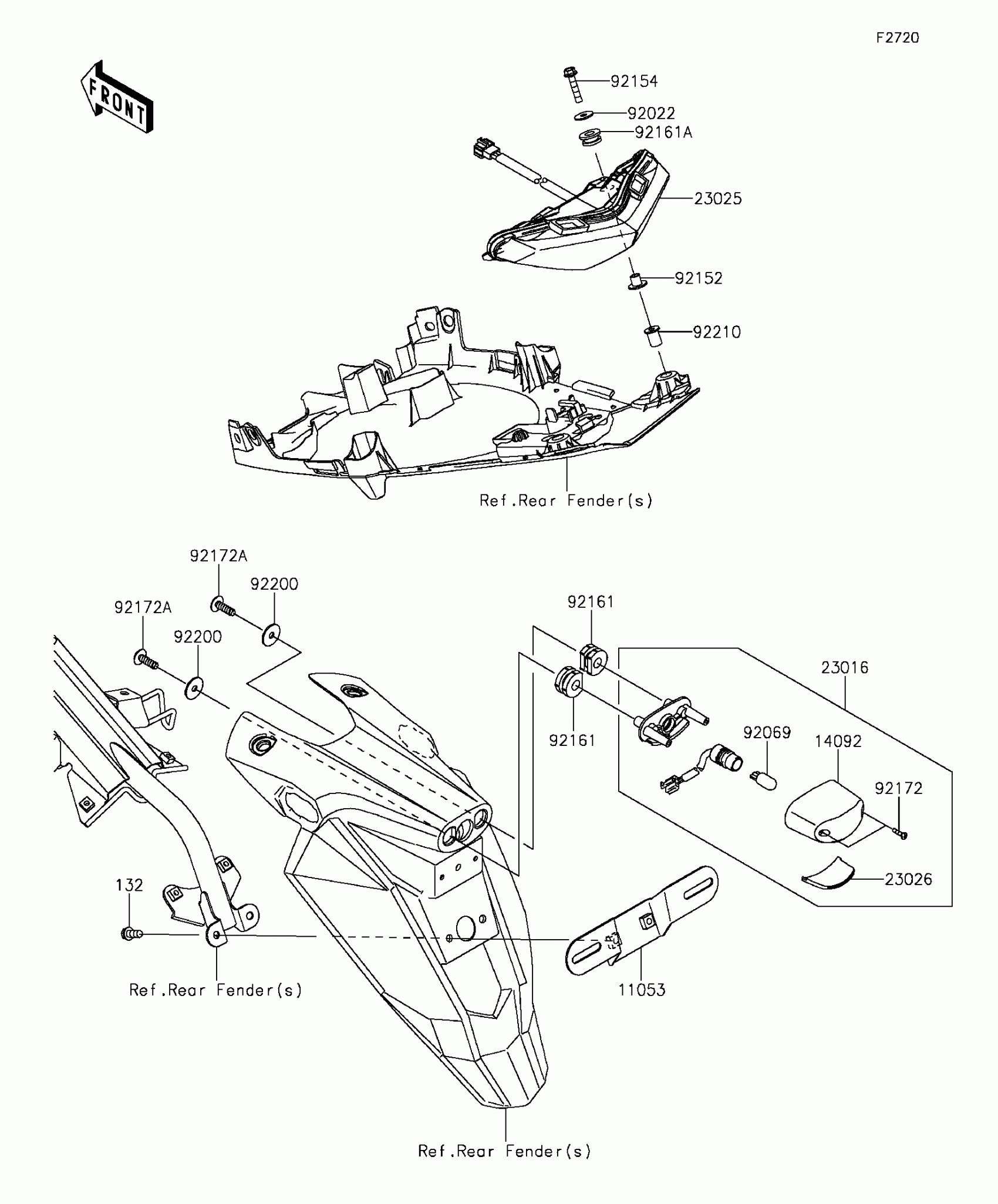

2016 Kawasaki Ninja® 650 ABS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,LICENSE

11053-0400

1

$13.08

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENSE

23016-0559

1

$73.13

In stock

23025

LAMP-TAIL

23025-0307

1

$162.21

In stock

23026

LENS,LICENSE LAMP

23026-0015

1

$29.34

In stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92152

COLLAR,5.6X8X9.3

92152-1527

1

$2.19

In stock

92154

BOLT,FLANGED,5X25

92154-0846

1

$1.10

In stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92161A

DAMPER,8X18X8.1

92161-1369

1

$1.44

In stock

92172

1

$1.53

In stock

92172A

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

132

1

$1.31

In stock
