1989 Kawasaki Ninja® 600R Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

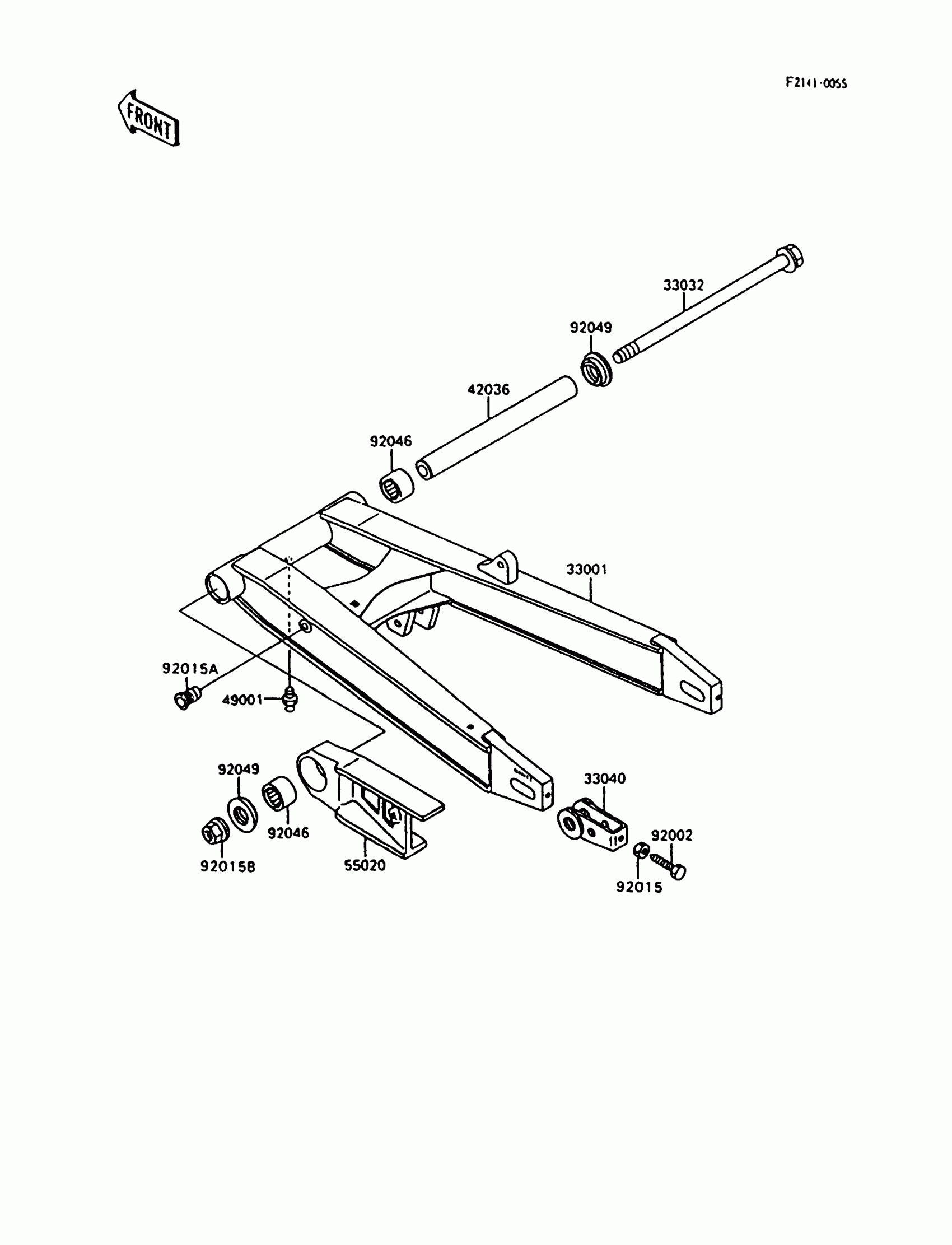

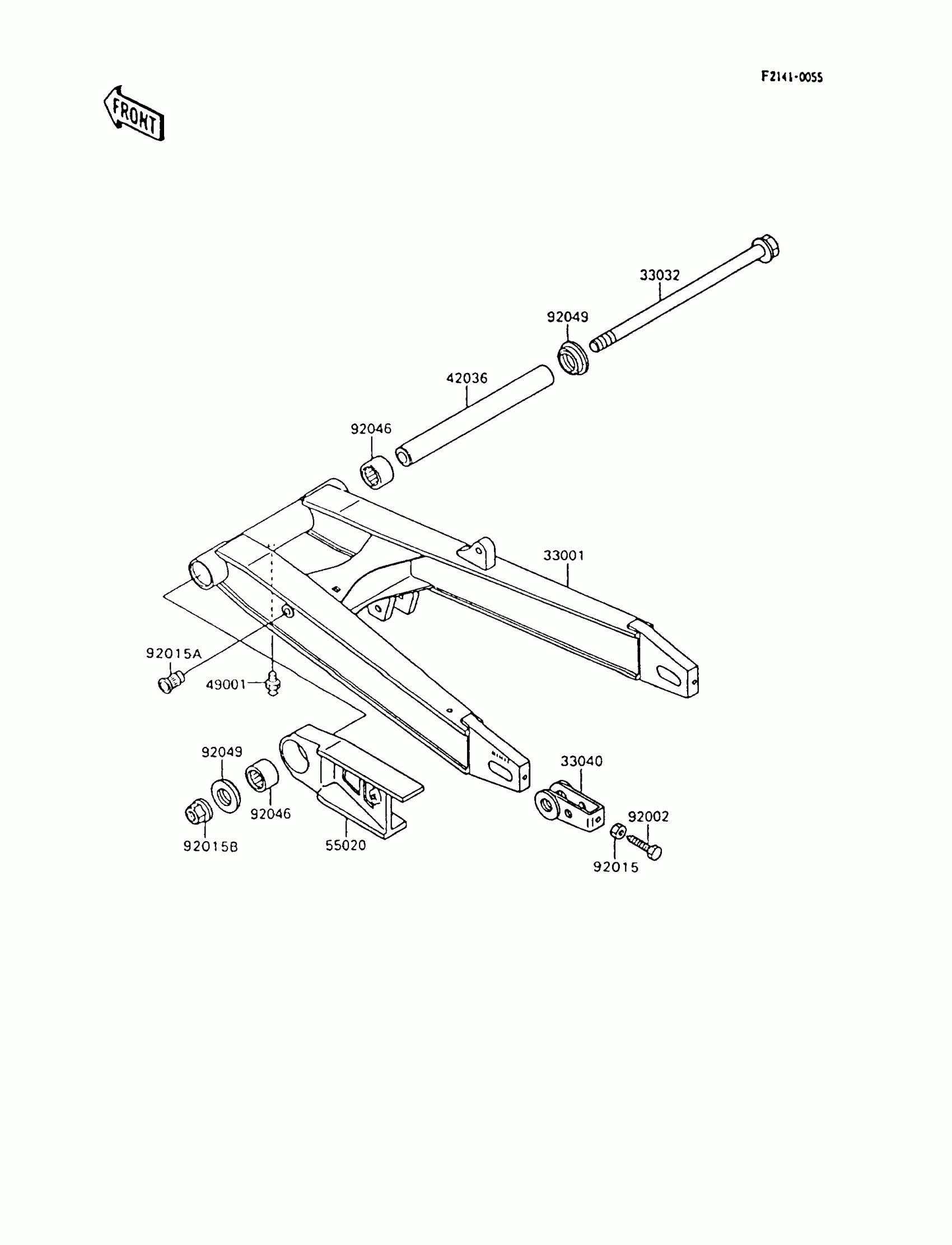

1989 Kawasaki Ninja® 600R Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,SILVER NO.25

33001-1288-CE

1
Out of stock

33032

SHAFT-SWING ARM

33032-1136

1
Out of stock

33040

ADJUSTER-CHAIN

33040-1063

1
Out of stock

42036

SLEEVE,17.1X25X230

42036-1220

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1

$2.44

In stock

55020

GUARD,CHAIN

55020-1267

1
Out of stock

92002

1

$7.52

In stock

92015

NUT,16MM

92015-1041

1
Out of stock

92015A

NUT,8MM

92015-1364

1

$3.12

In stock

92046

1

$23.73

In stock

92049

SEAL-OIL,MHA25X33X5.7F

92049-1166

1
Out of stock
