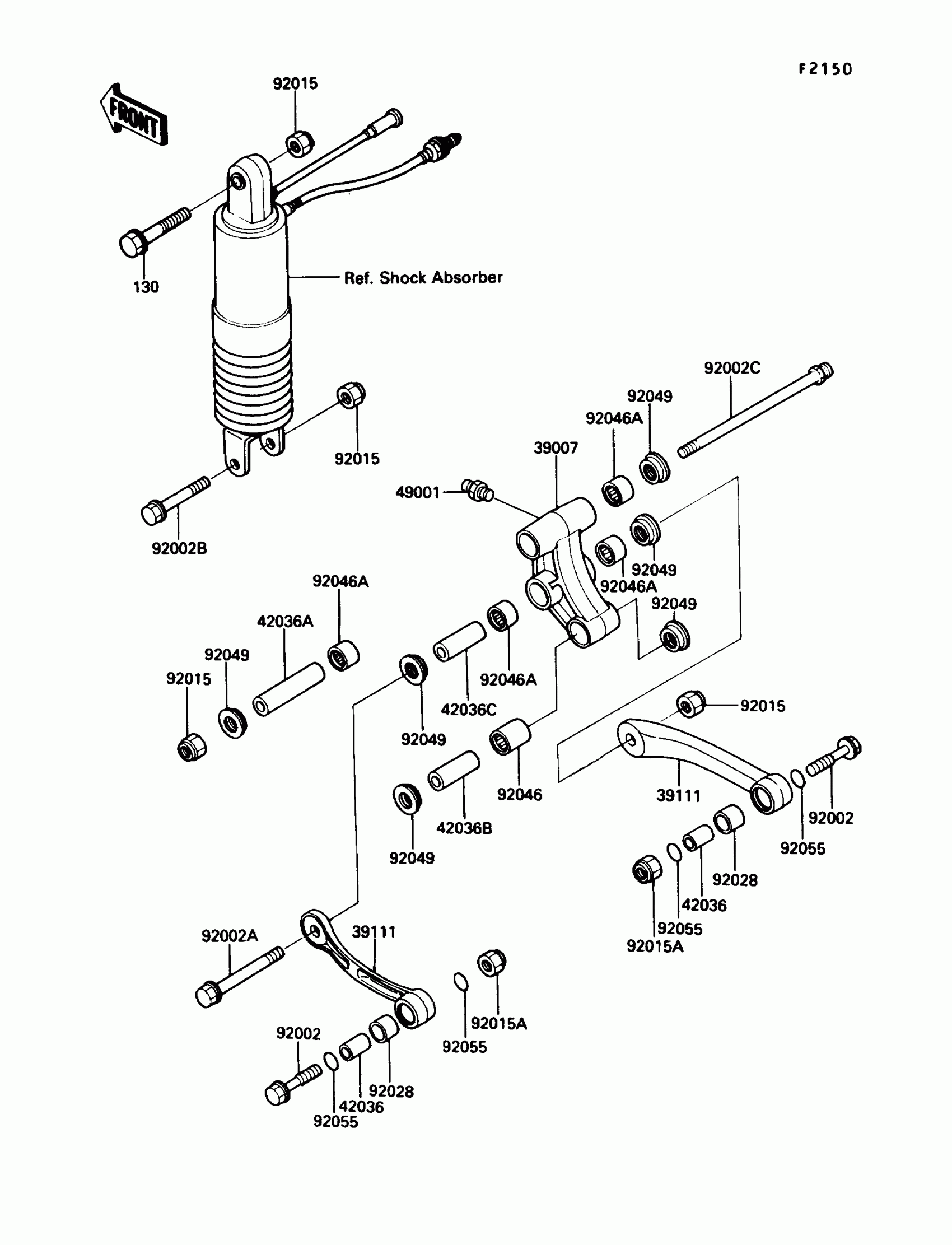

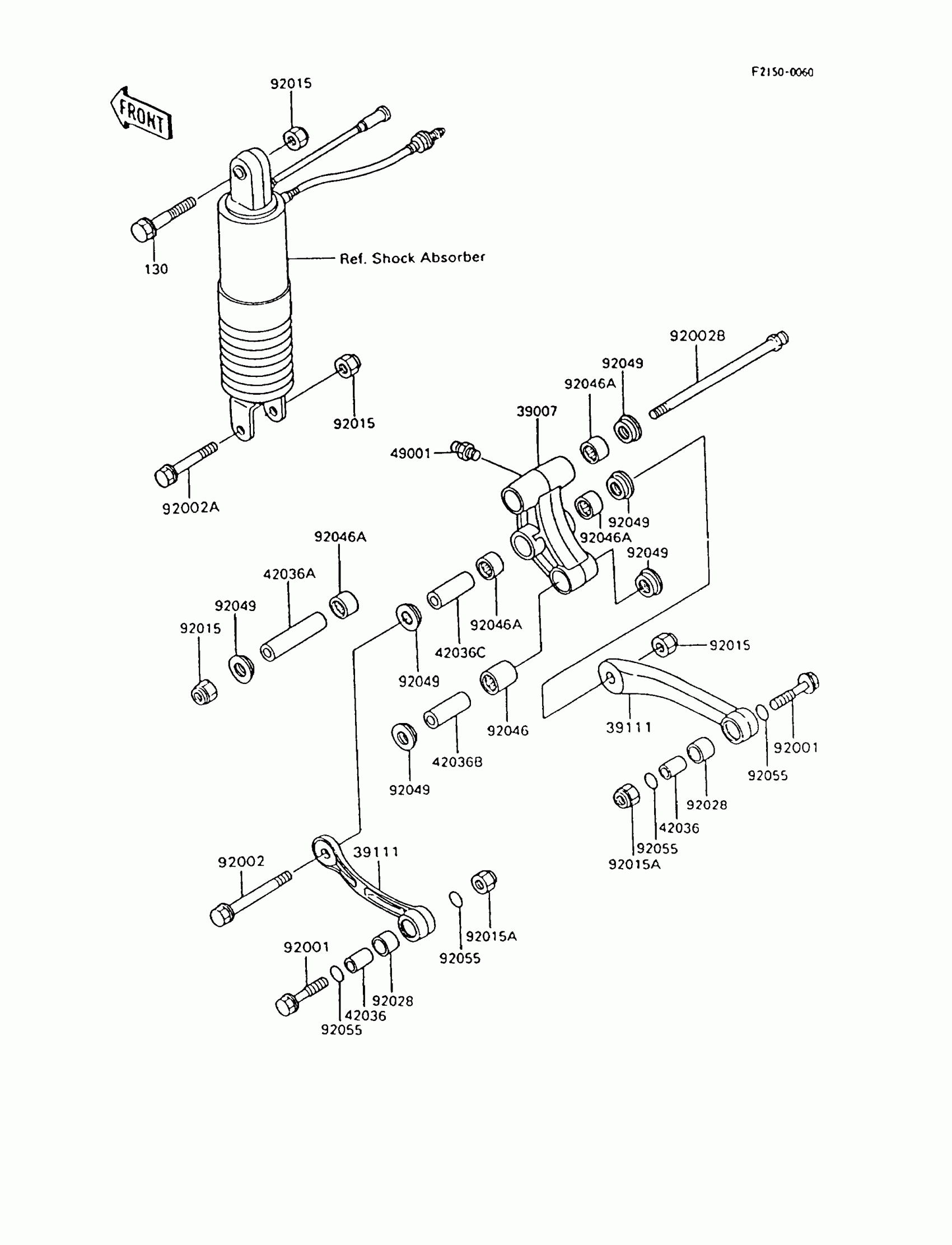

1989 Kawasaki Ninja® 600R Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 600R Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1126

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-1092

1
Out of stock

42036

SLEEVE,12.1X20X22

42036-1076

1
Out of stock

42036A

SLEEVE,12.1X20X74

42036-1102

1
Out of stock

42036B

SLEEVE,12.1X20X40

42036-1108

1
Out of stock

42036C

SLEEVE,12.1X20X50

42036-1111

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

92002

BOLT,12X45

92001-1939

1
Out of stock

92002A

BOLT,FLANGED,12X85

92002-1463

1
Out of stock

92002B

BOLT,FLANGED,12X60

92002-1464

1
Out of stock

92002C

BOLT,SUSPENSION ARM

92002-1490

1
Out of stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92015A

NUT,LOCK,12MM

92015-1375

1
Out of stock

92028

BUSHING,20X23X15

92028-1202

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92055

RING-O,19.8X2.2

92055-1215

1
Out of stock

130

BOLT-FLANGED

130G1250

1
Out of stock
