1989 Kawasaki Ninja® 600R Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

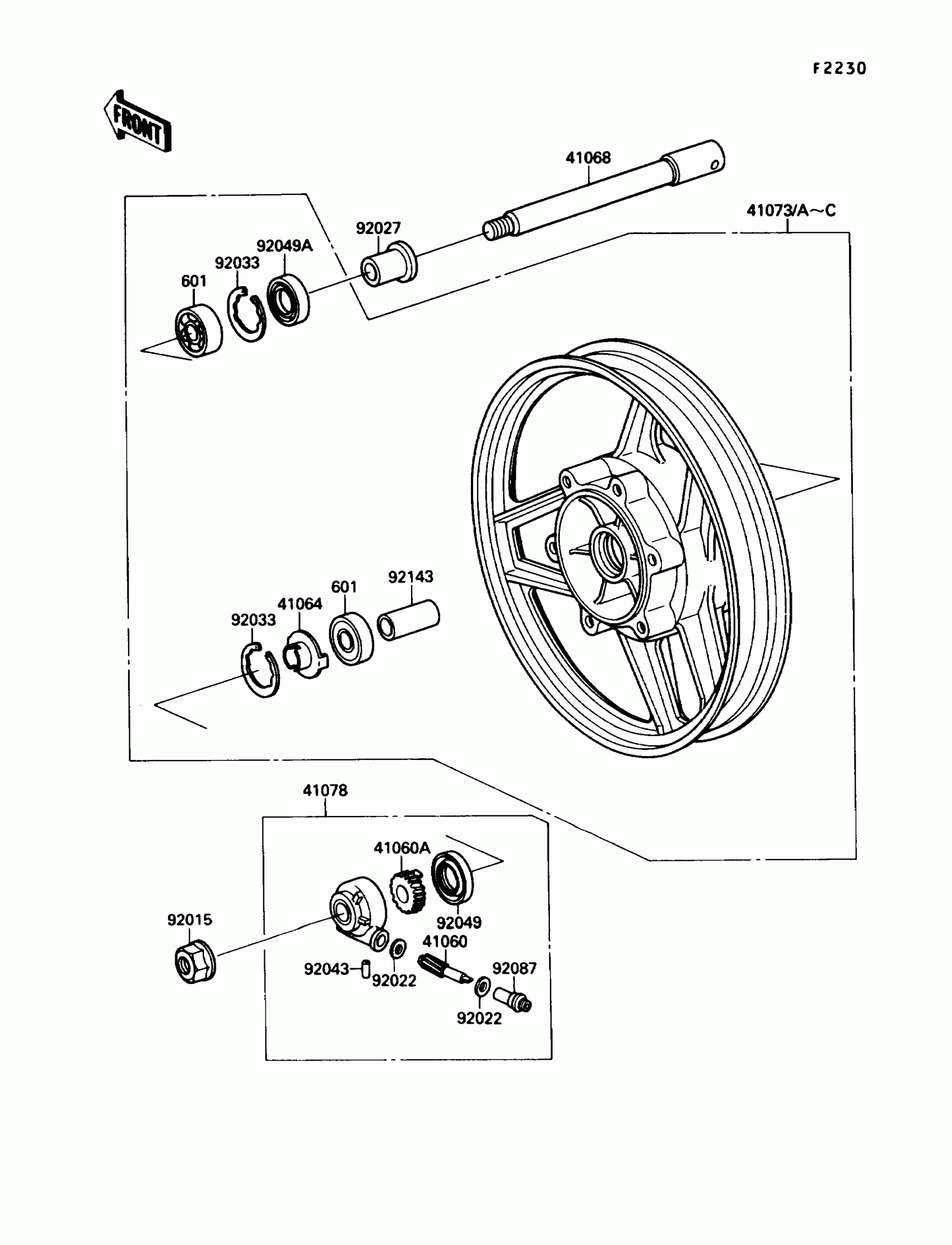

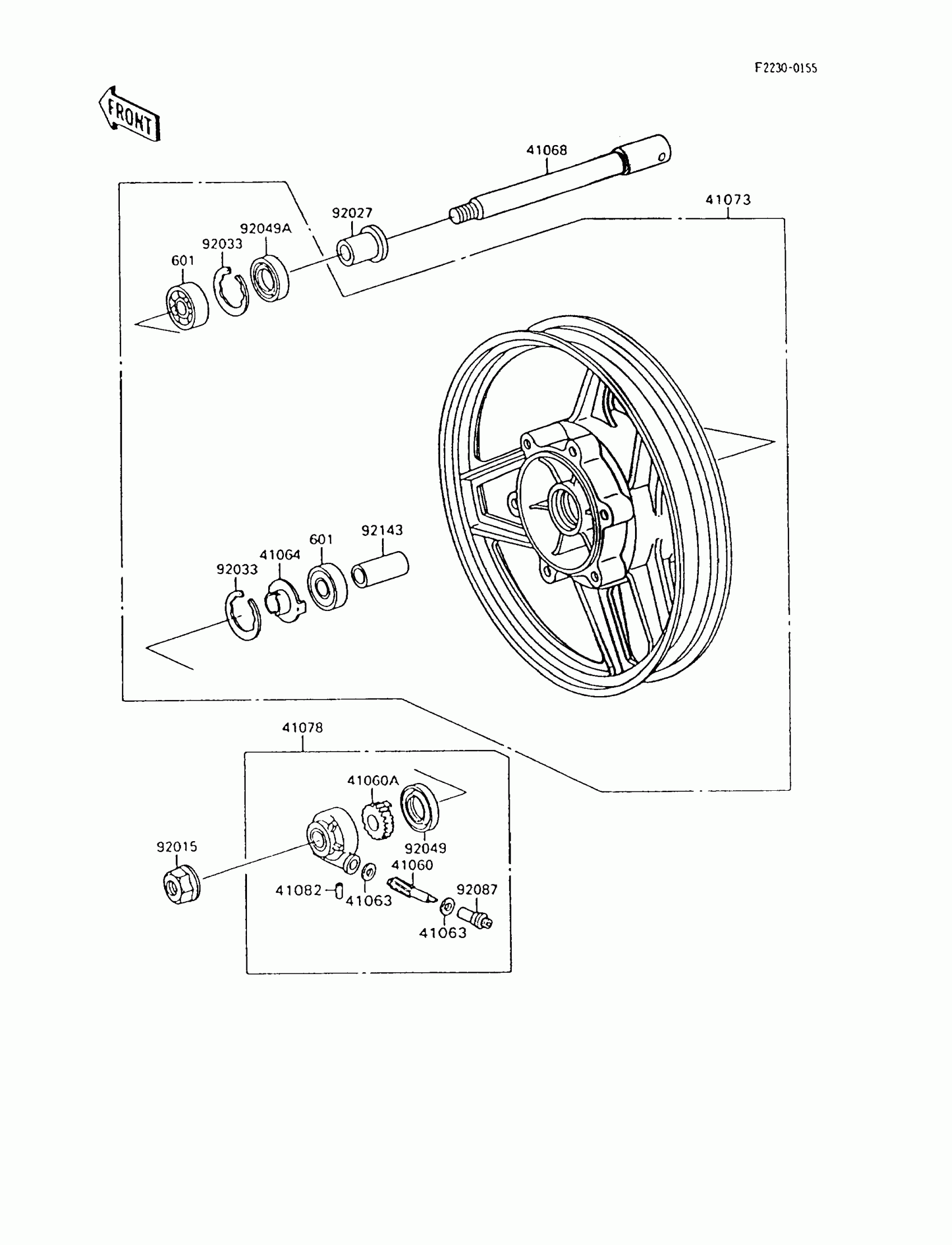

1989 Kawasaki Ninja® 600R Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41060

GEAR-METER SCREW,9T

41060-1106

1

$20.90

In stock

41060A

1

$20.90

In stock

41064

1

$11.81

In stock

41068

AXLE,FR

41068-1240

1
Out of stock

41073

WHEEL-ASSY,FR,F.RED

41073-1360-CW

1

$903.89

In stock

41073A

WHEEL-ASSY,FR,WHITE NO.1

41073-1360-DC

1

$603.16

In stock

41078

CASE-ASSY-METER GEAR

41078-1062

1
Out of stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92022

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92027

COLLAR,L=30

92027-1225

1

$16.49

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92043

PIN,SPRING

41082-001

1

$3.53

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,BJN22425

92049-1058

1
Out of stock

92087

BUSHING-METER GEAR

92087-1002

1

$22.34

In stock

92143

COLLAR,15.2X22X61

92143-1079

1
Out of stock

601

1

$38.63

In stock
