1989 Kawasaki Ninja® 600R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

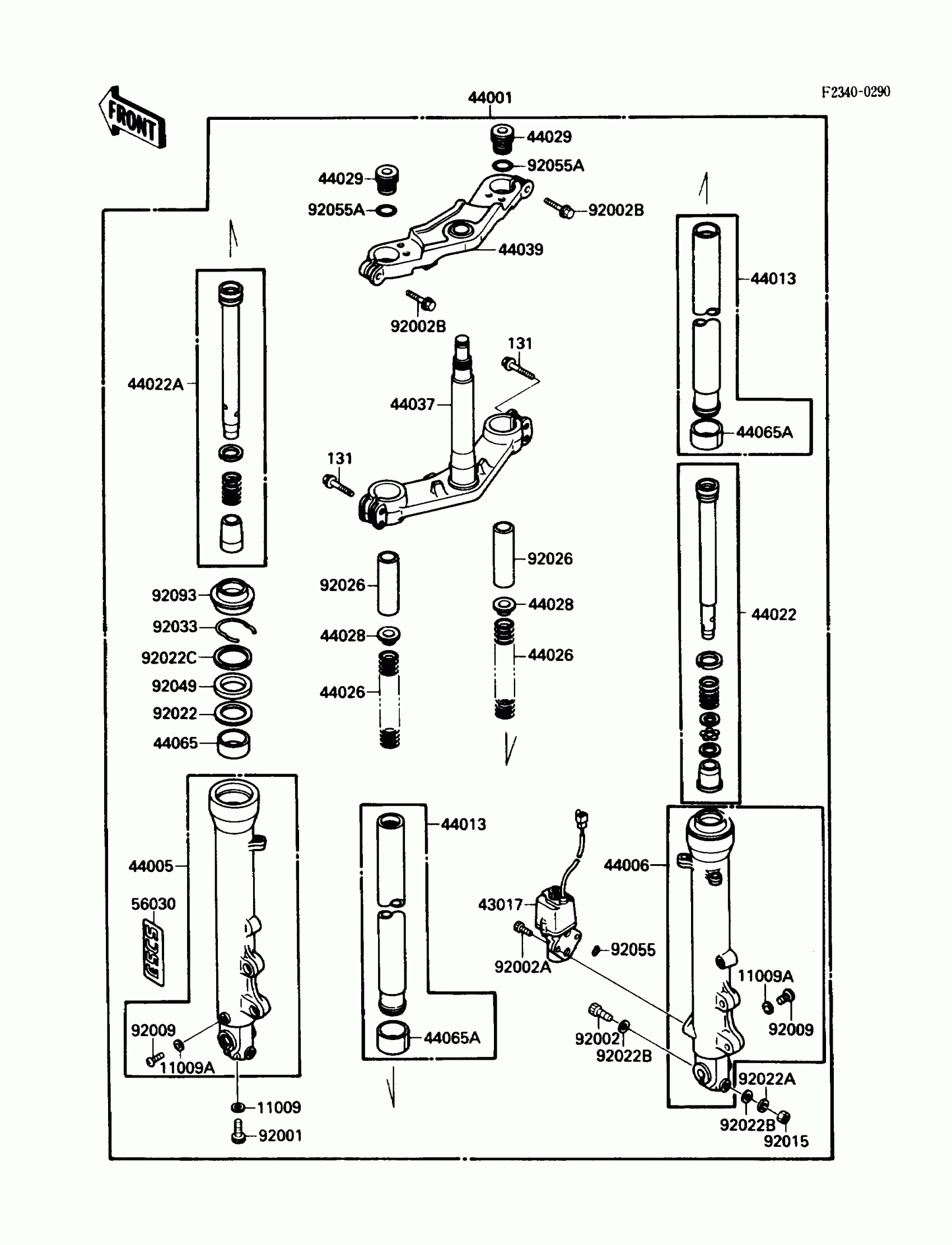

1989 Kawasaki Ninja® 600R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11009A

1

$4.12

In stock

43017

VALVE-COMP-BRAKE

43017-1067

1
Out of stock

44001

FORK-FRONT

44001-1653

1

$1,724.57

In stock

44005

1

$405.27

In stock

44006

1

$405.27

In stock

44013

PIPE-FORK INNER

44013-1260

1
Out of stock

44022

CYLINDER-FORK,RH

44022-1203

1

$127.84

In stock

44022A

CYLINDER-FORK

44022-1207

1
Out of stock

44026

SPRING-FRONT FORK

44026-1363

1

$65.86

In stock

44028

GUIDE-FORK SPRING

44028-1003

1
Out of stock

44029

SEAT-FORK SPRING

44029-1126

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1213

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1150

1
Out of stock

44065

BUSHING-FRONT FORK

44065-1012

1

$23.54

In stock

44065A

1

$44.61

In stock

56030

LABEL,ESCS MARK

56030-1095

1

$4.97

In stock

92001

BOLT,FORK CYLINDER

92001-1309

1

$6.06

In stock

92002

BOLT,8X60

92002-1163

1
Out of stock

92002A

BOLT,SOCKET,6X16

92002-1166

1

$5.74

In stock

92002B

BOLT,FLANGED,8X40

92002-1476

1
Out of stock

92009

SCREW,4X8

92009-1324

1
Out of stock

92015

NUT,8MM

92015-1400

1
Out of stock

92022

1

$8.39

In stock

92022A

WASHER,SPRING,8MM

92022-1552

1

$2.36

In stock

92022B

WASHER,PLAIN,8MM

92022-1554

1
Out of stock

92022C

WASHER,FORK OUTER PIPE,UPP

92022-1599

1
Out of stock

92026

SPACER,L=40

92026-1258

1
Out of stock

92033

RING-SNAP,FORK

92033-1047

1

$5.11

In stock

92049

SEAL-OIL,FORK

92049-1178

1
Out of stock

92055

RING-O

92055-1379

1

$1.08

In stock

92055A

RING-O,FORK TOP

92055-1380

1
Out of stock

92093

SEAL,FORK

92093-1162

1

$27.19

In stock

131

BOLT-FLANGED,8X40

131G0840

1
Out of stock
