1986 Kawasaki Ninja® 600 Swing Arm Diagram

← All diagrams

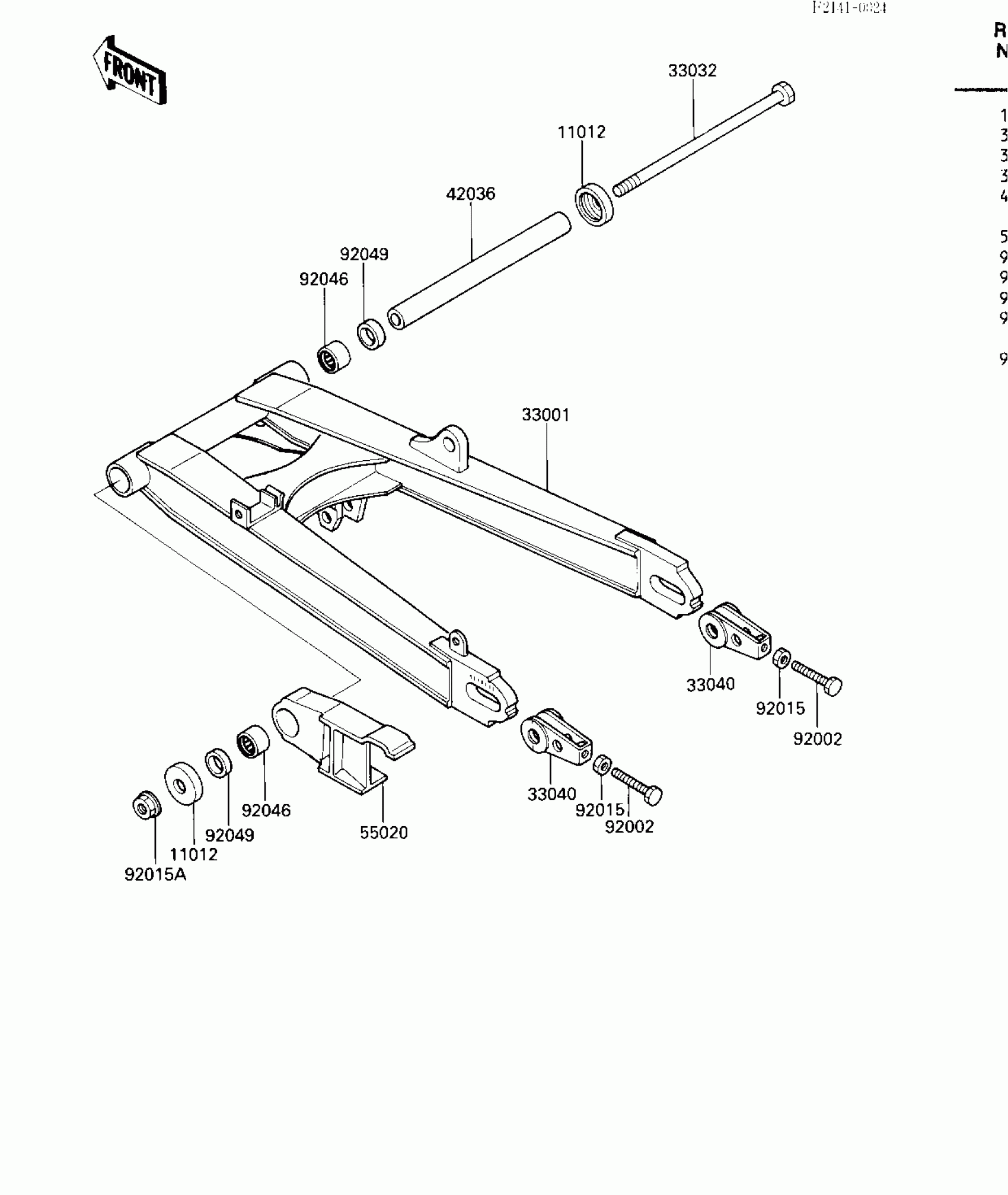

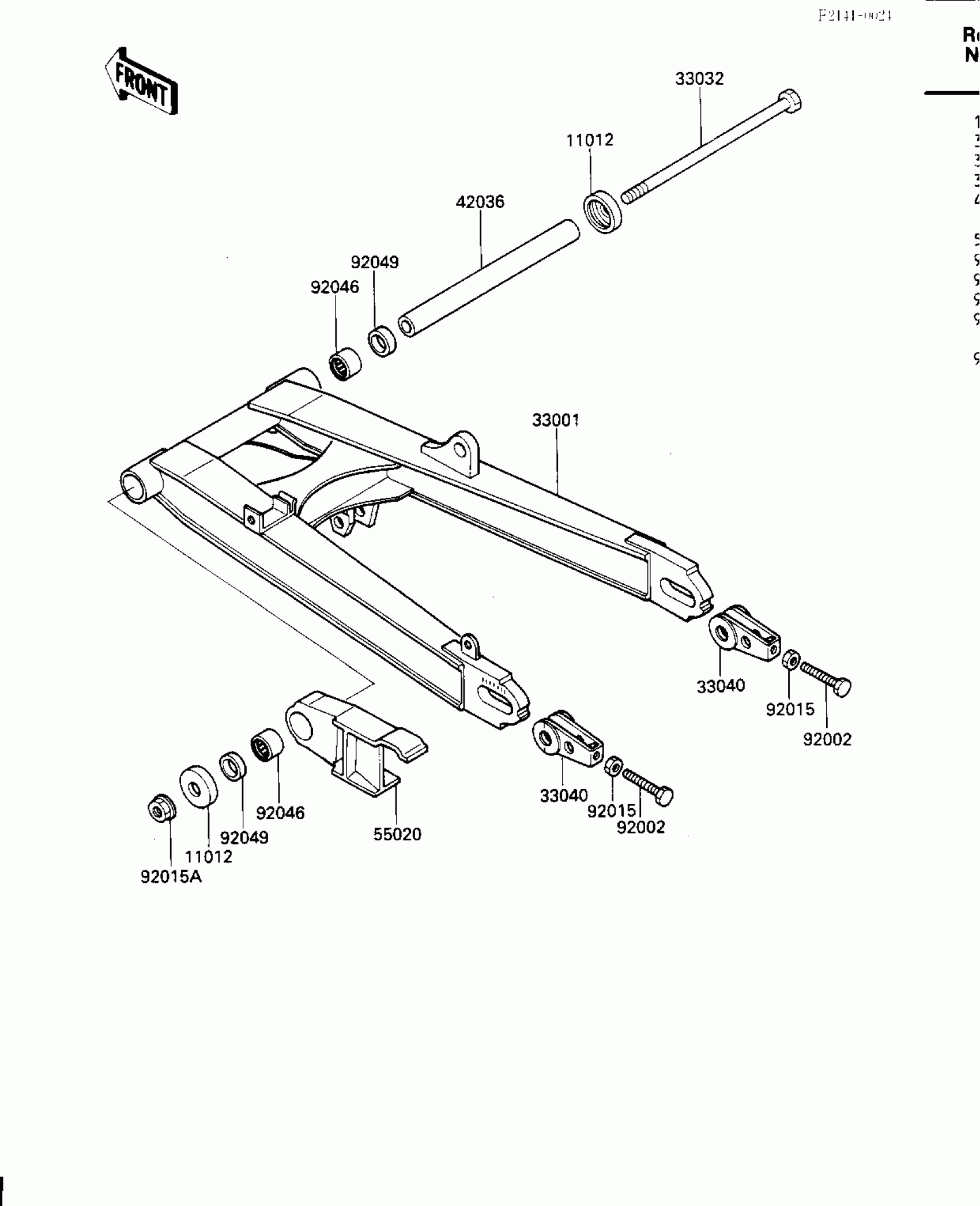

Find the part on the Swing Arm diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Swing Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1441

1
Out of stock

33001

ARM-COMP-SWING,SILVER

33001-1236-P1

1

$519.87

In stock

33032

SHAFT-SWING ARM

33032-1114

1

$62.81

In stock

33040

ADJUSTER-CHAIN

33040-1063

1
Out of stock

42036

SLEEVE,SWING ARM

42036-1018

1
Out of stock

55020

GUARD,CHAIN

55020-1188

1
Out of stock

92002

BOLT,8X50

92002-1060

1
Out of stock

92015

NUT,8MM

92015-1364

1

$3.12

In stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92046

BEARING-NEEDLE,TA2230

92046-1140

1
Out of stock

92049

SEAL-OIL,MHA22304

92049-1219

1
Out of stock
