1986 Kawasaki Ninja® 600 Rear Suspension Diagram

← All diagrams

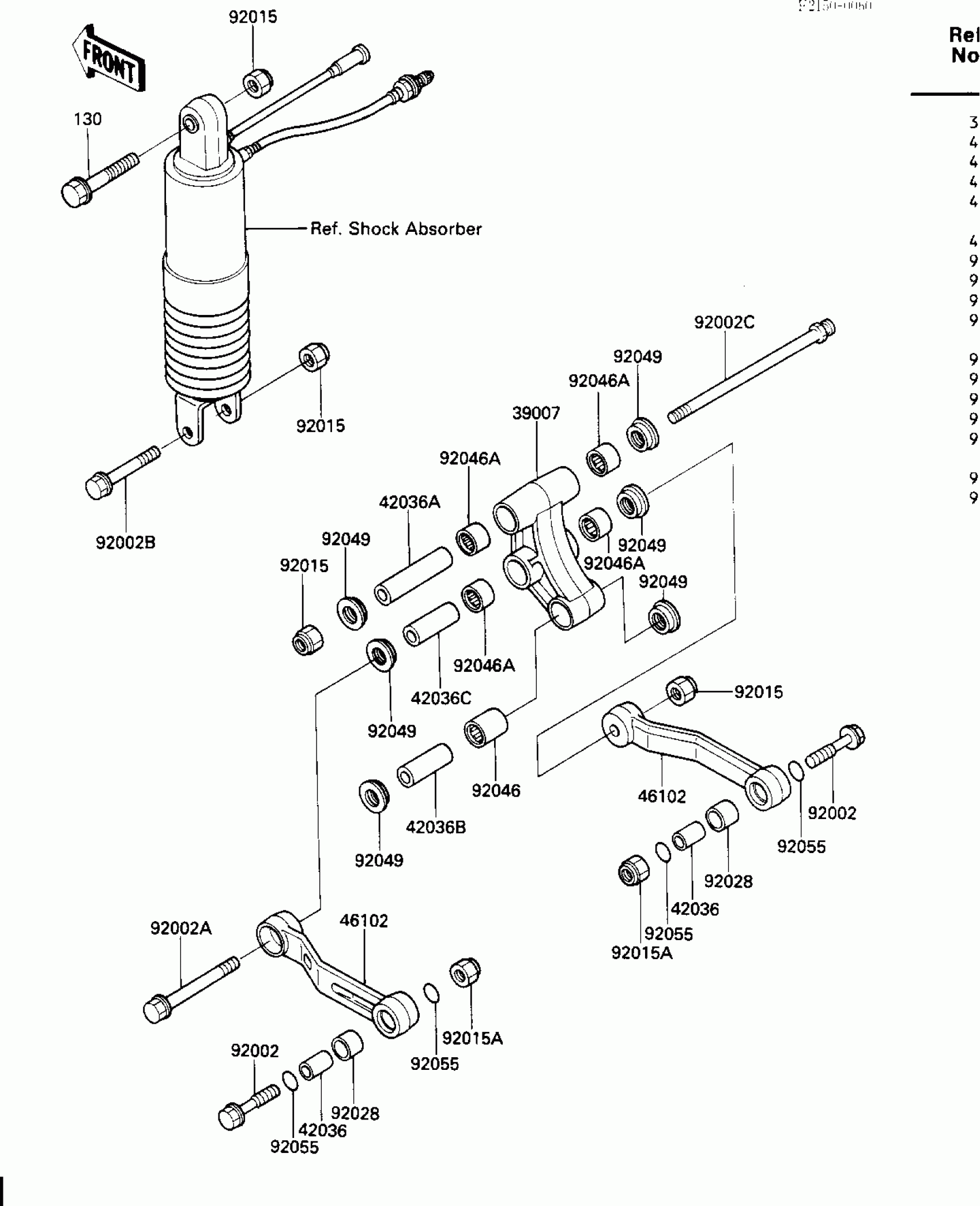

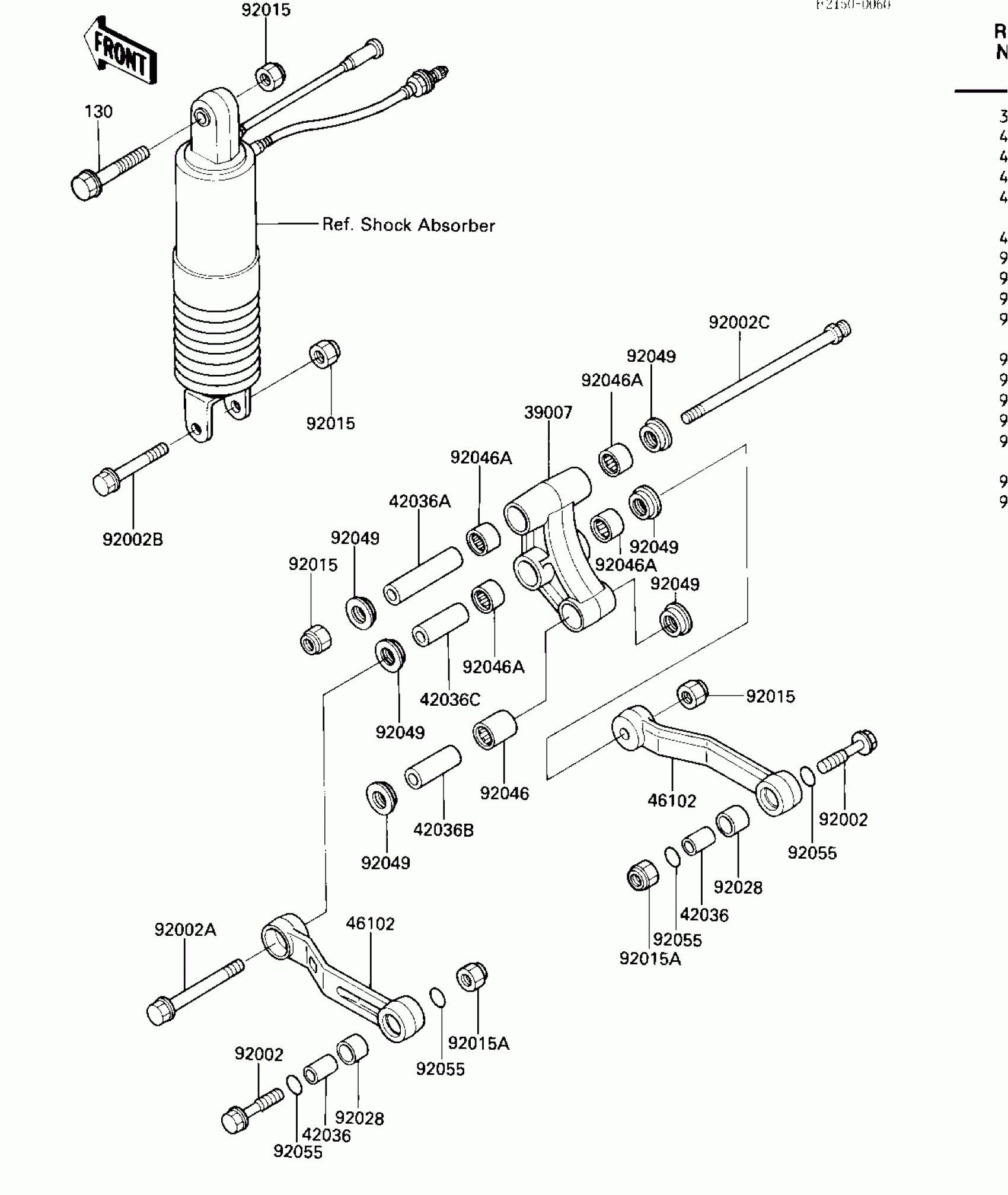

Find the part on the Rear Suspension diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1127

1

$169.36

In stock

42036

SLEEVE,12.1X20X22

42036-1076

1

$17.56

In stock

42036A

SLEEVE,12.1X20X74

42036-1102

1

$29.28

In stock

42036B

SLEEVE,12.1X20X40

42036-1108

1

$20.37

In stock

42036C

SLEEVE,12.1X20X50

42036-1111

1

$20.61

In stock

46102

ROD,UNI TRAK

46102-1140

1

$95.66

In stock

92002

BOLT,12X45

92001-1939

1
Out of stock

92002A

BOLT,FLANGED,12X85

92002-1463

1

$18.36

In stock

92002B

BOLT,FLANGED,12X60

92002-1464

1

$12.19

In stock

92002C

BOLT,SUSPENSION ARM

92002-1490

1

$38.17

In stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92015A

NUT,LOCK,12MM

92015-1375

1

$7.58

In stock

92028

BUSHING

92028-1599

1

$26.08

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92055

RING-O,19.8X2.2

92055-1215

1

$3.43

In stock

130

BOLT-FLANGED

130G1250

1
Out of stock
