Front Fork

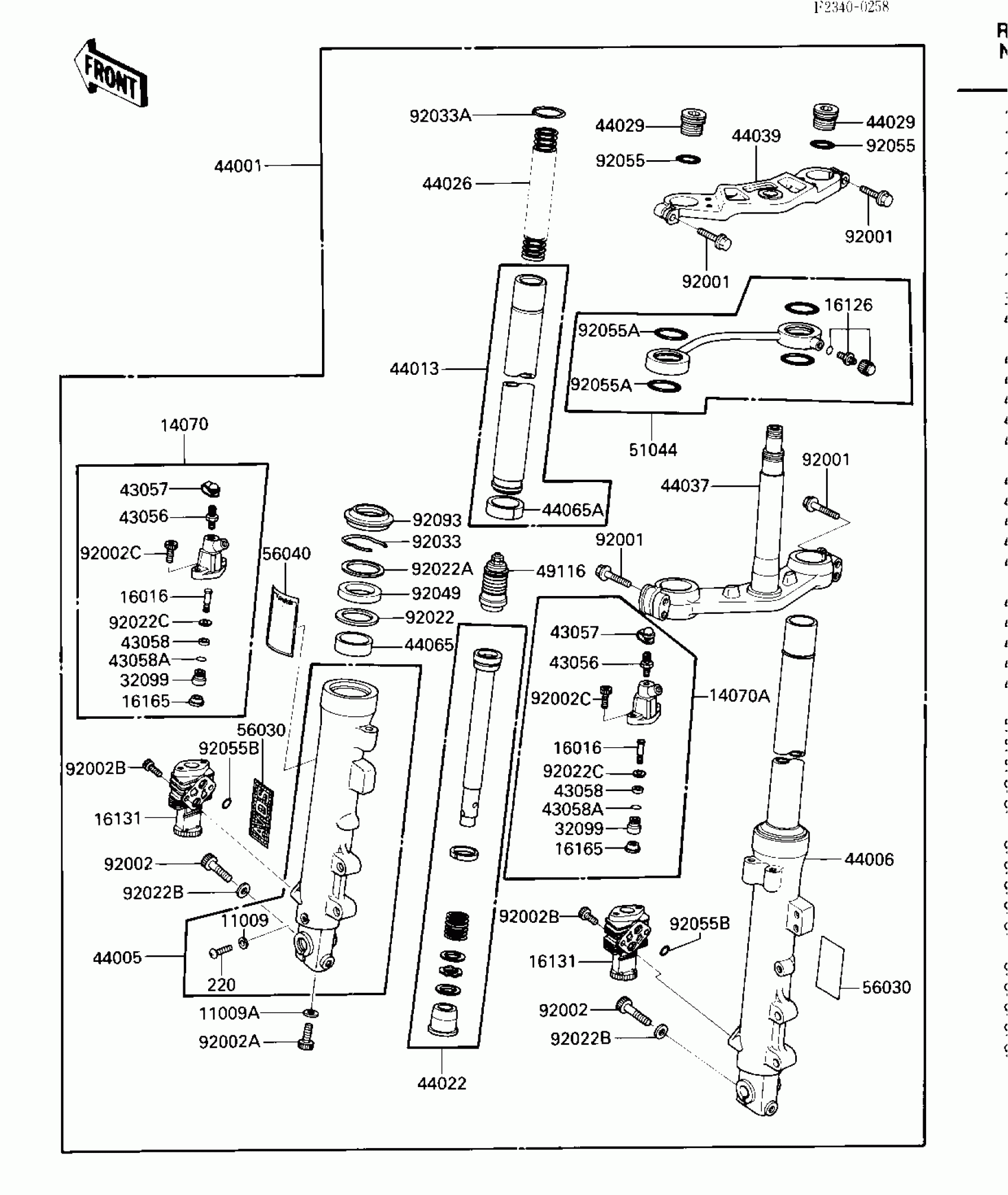

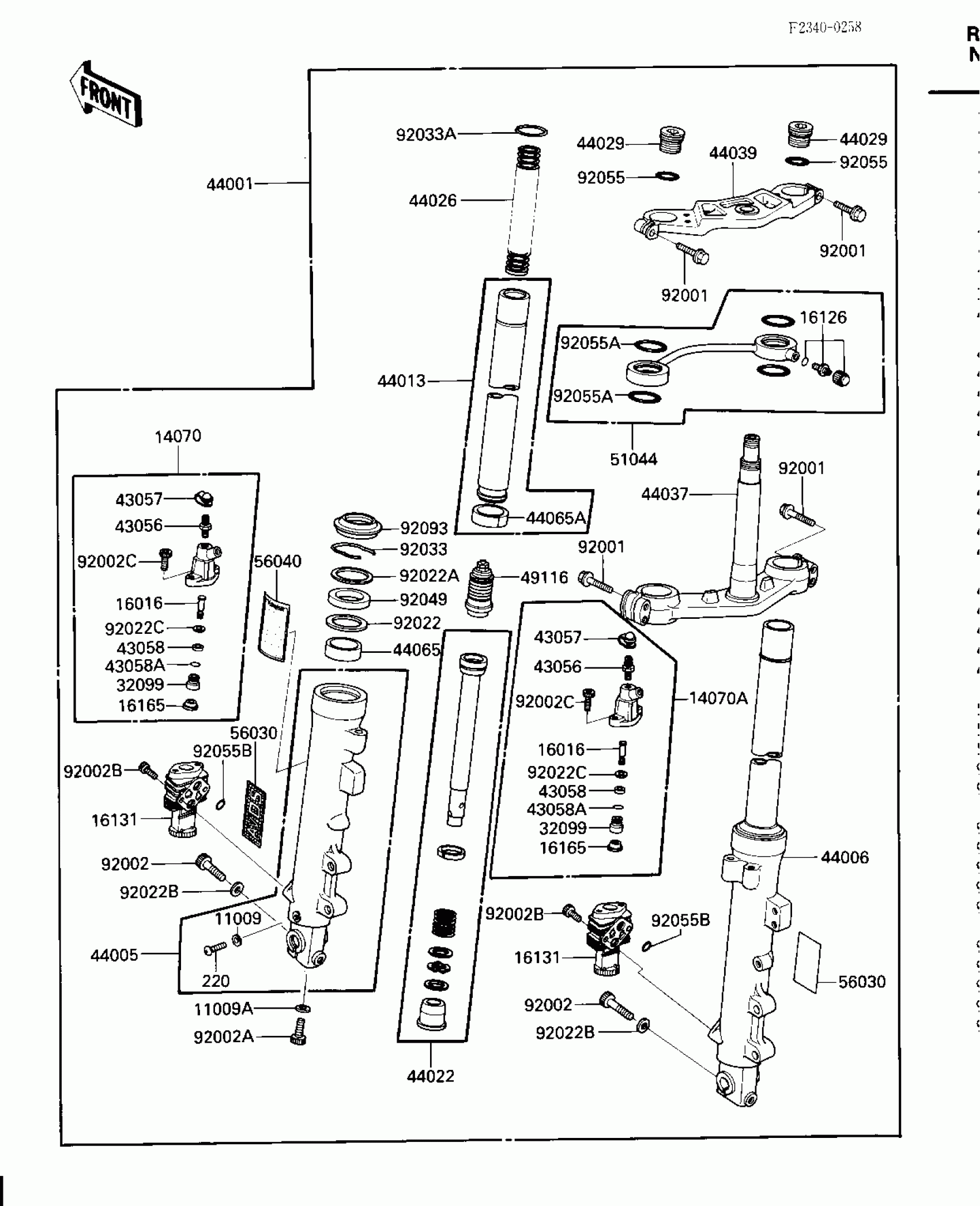

1986 Kawasaki Ninja® 600 Front Fork Diagram
Find the part on the Front Fork diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
16165
SEPARATOR
16165-1051
32099
CASE
32099-1067
43058
RING
43058-1052
43058A
RING
43058-1053
56030
LABEL,AVDS MARK
56030-1057
56040
LABEL-WARNING,AIR SUSPENSION
56040-1117
92001
BOLT,FLANGED,8X40
92001-1188
92002
BOLT,SOCKET,8X38
92002-1316
92002A
BOLT
92002-1317
92002B
BOLT
92002-1564
92002C
BOLT
92002-1565
92022A
WASHER,FORK OUTER PIP
92022-1524
92022C
WASHER
92022-1636
92033A
RING-SNAP
92033-1202
92049
SEAL-OIL,FORK OUTER T
92049-1372
92055A
RING-O,TUBE ASSY
92055-1164
220
SCREW-PAN-CROS,4X8
220E0408
