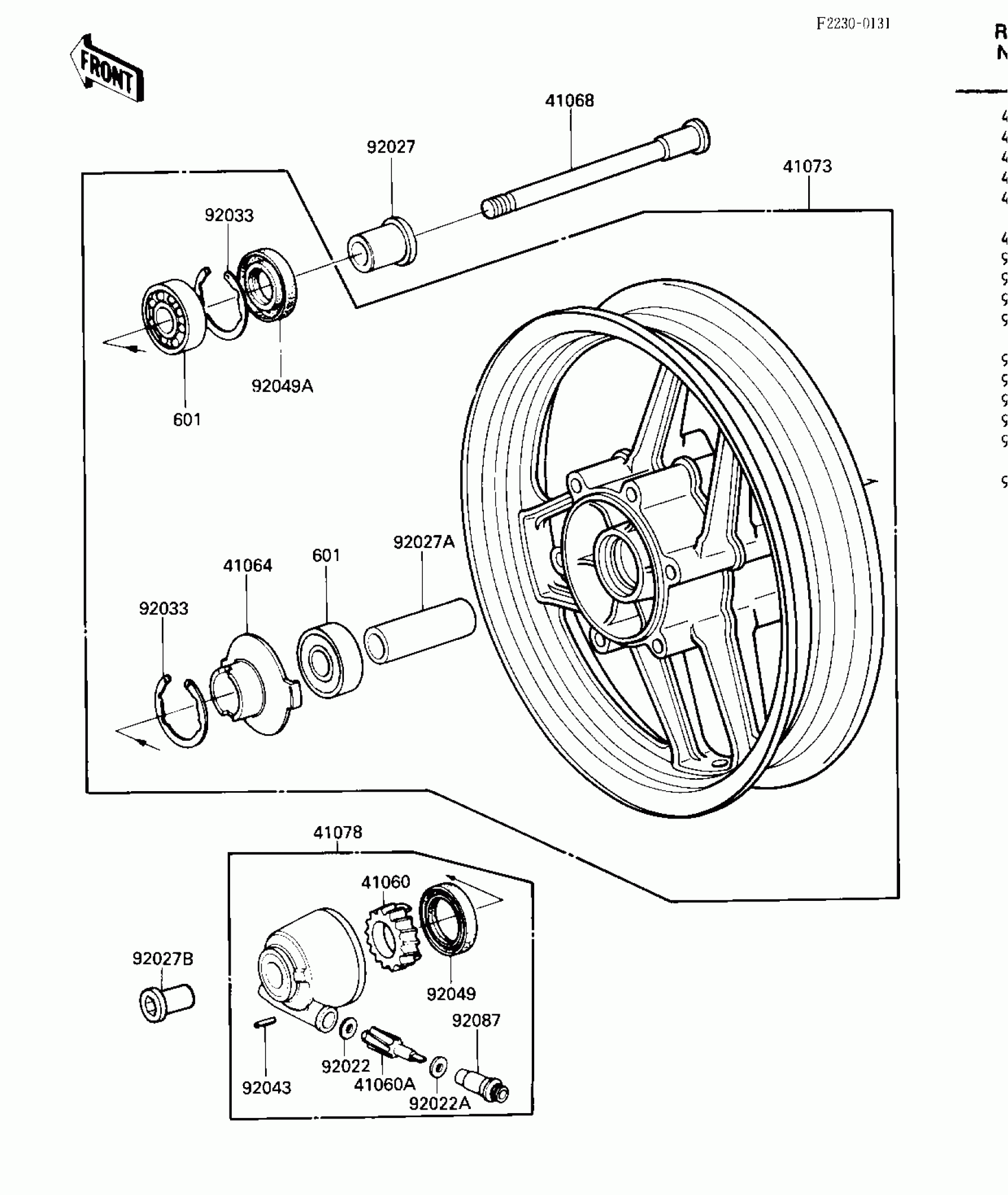

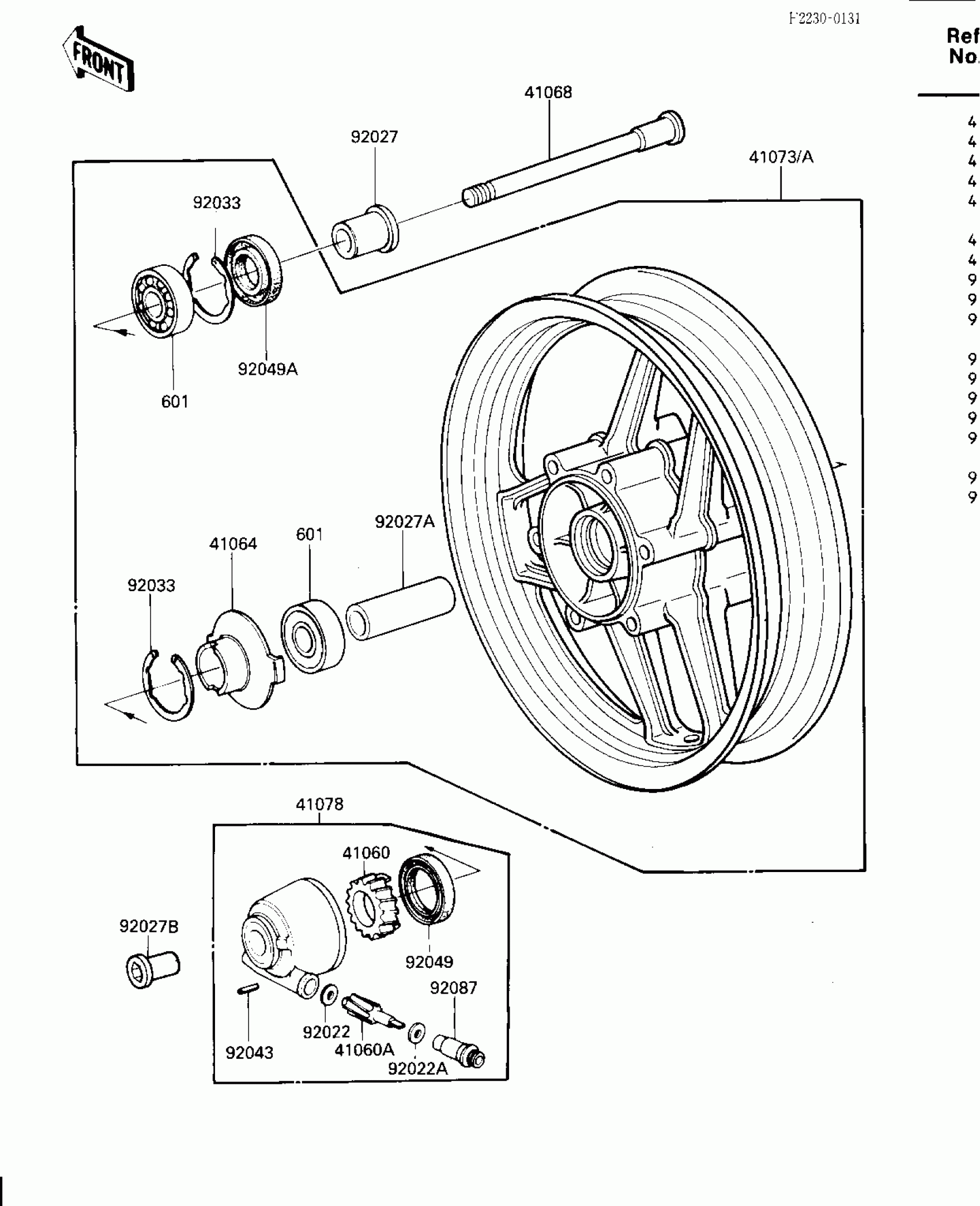

Kawasaki Ninja® 600 FRONT WHEEL/HUB Diagram

Description

Price

41060

GEAR-METER SCREW,24T

41060-1025

$20.37

41060A

GEAR-METER SCREW,9T

41060-1035

Unavailable

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FR

41068-1164

Unavailable

41073A

WHEEL-ASSY,FR,BLACK

41073-1340-R2

$604.27

41078

CASE-ASSY-METER GEAR

41078-1057

$135.73

92022

WASHER,5.1X9X0.4

41063-001

$4.17

92022A

WASHER,5.1X9X0.4

41063-001

$4.17

92027

COLLAR,L=30

92027-1225

$16.49

92027A

COLLAR,L=71

92027-1725

$13.39

92027B

COLLAR,FR AXLE,L=36.5

92027-1726

$25.36

92033

RING-SNAP,42MM

92033-1041

$4.64

92043

PIN,SPRING

41082-001

$3.53

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,BJN22425

92049-1058

$7.41

92087

BUSHING-METER GEAR

92087-1002

$22.34

601

BEARING-BALL

601B6302U

$38.63
