1986 Kawasaki Ninja® 600 Secondary Shaft Diagram

← All diagrams

Find the part on the Secondary Shaft diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

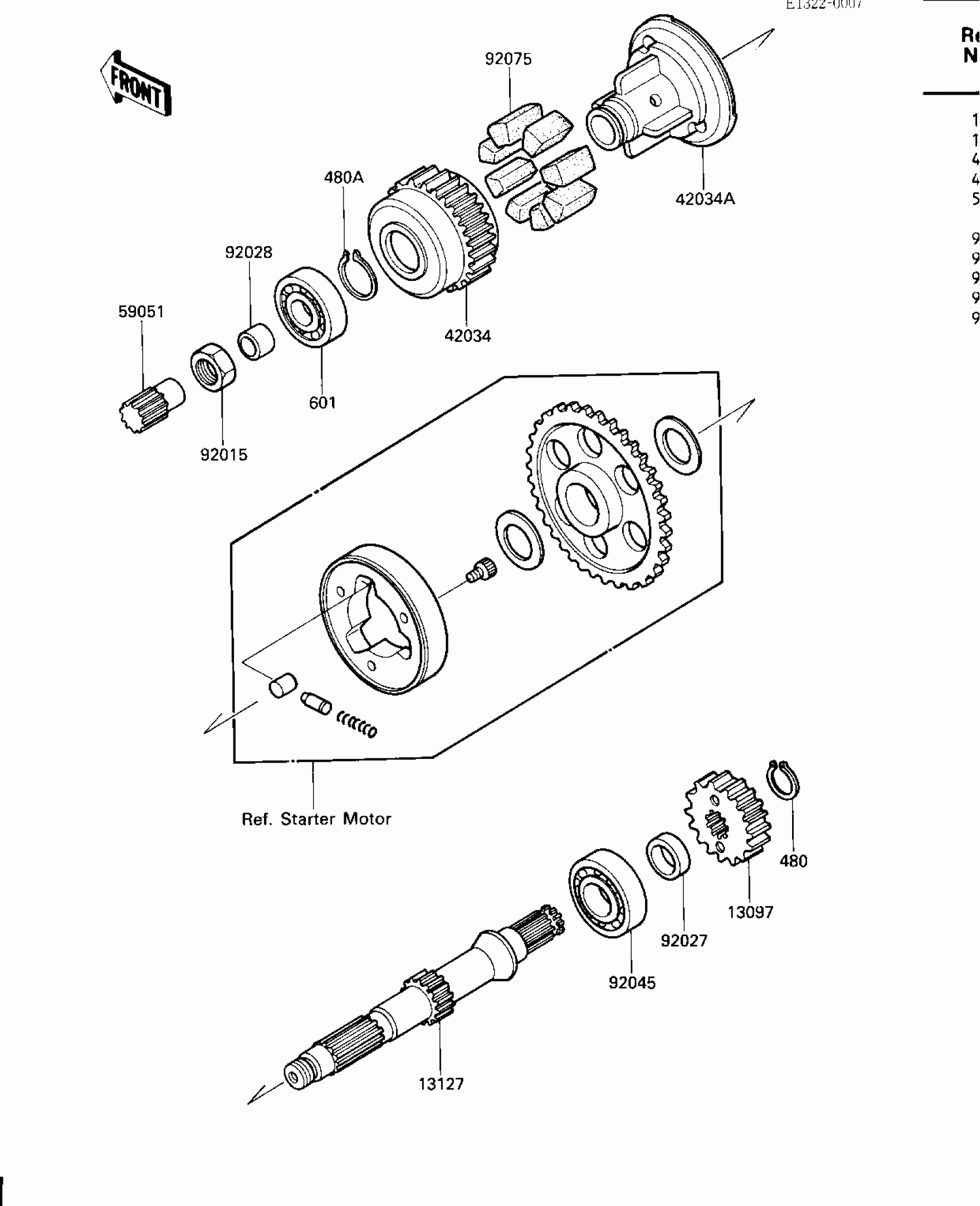

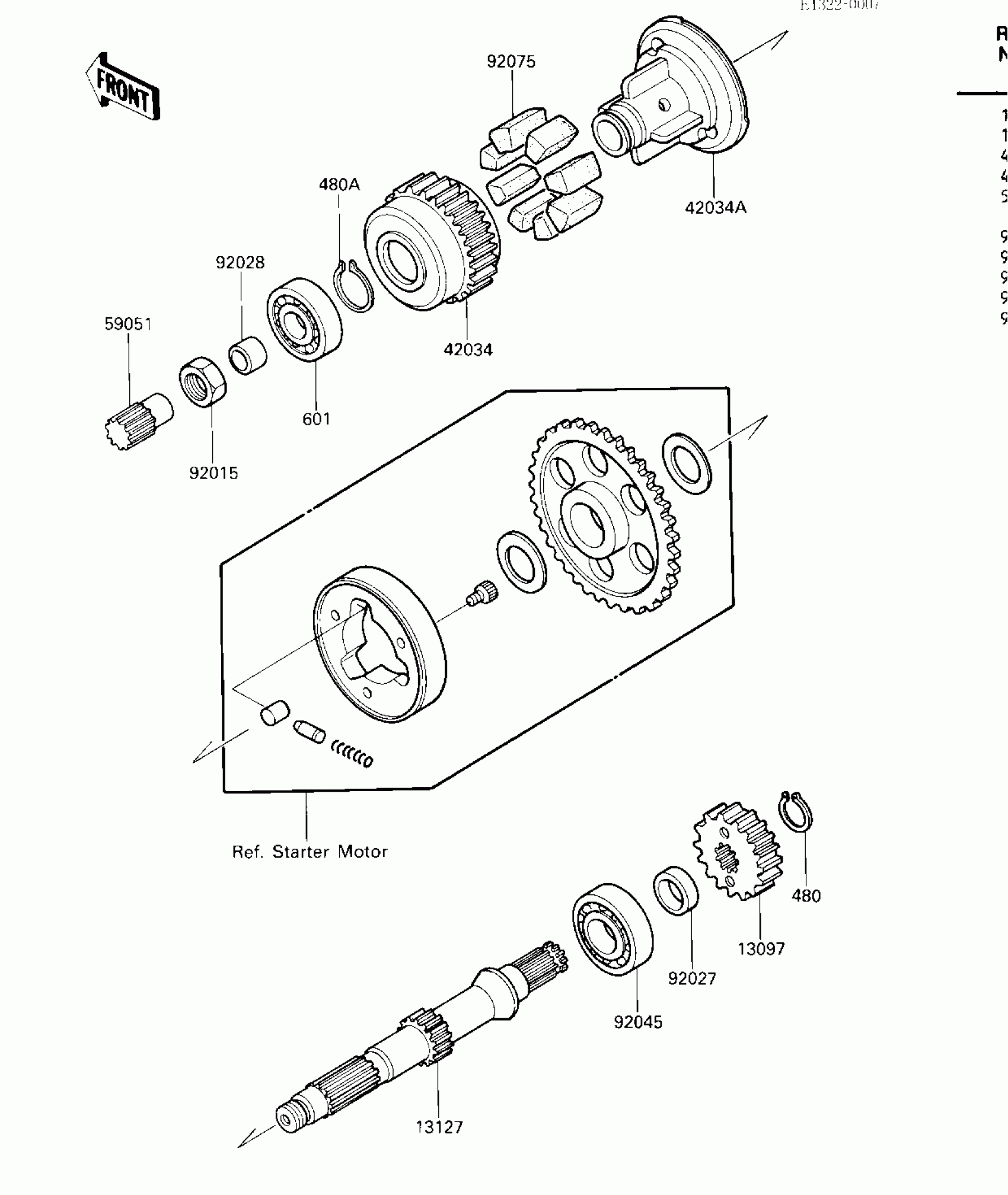

1986 Kawasaki Ninja® 600 Secondary Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13097

GEAR-PRIMARY SPUR,28T

13097-1141

1
Out of stock

13127

SHAFT,SECONDARY

13127-1123

1
Out of stock

42034

COUPLING,OUTER,SECONDARY SHAFT

42034-1004

1
Out of stock

42034A

COUPLING,INNER,SECONDARY SHAFT

42034-1005

1
Out of stock

59051

GEAR-SPUR,10T,SECONDARY

59051-1137

1
Out of stock

92015

NUT,20MM

92016-028

1

$7.86

In stock

92027

COLLAR,22X34X7.3

92027-1438

1

$8.03

In stock

92028

BUSHING,20X25X16.6

92028-1037

1

$32.44

In stock

92045

1

$34.80

In stock

92075

DAMPER,COUPLING

92075-1070

1
Out of stock

480

1

$3.97

In stock

480A

1

$3.73

In stock

601

1

$15.38

In stock
← Rear Wheel/hub/chain Side Covers/chain Cover →
