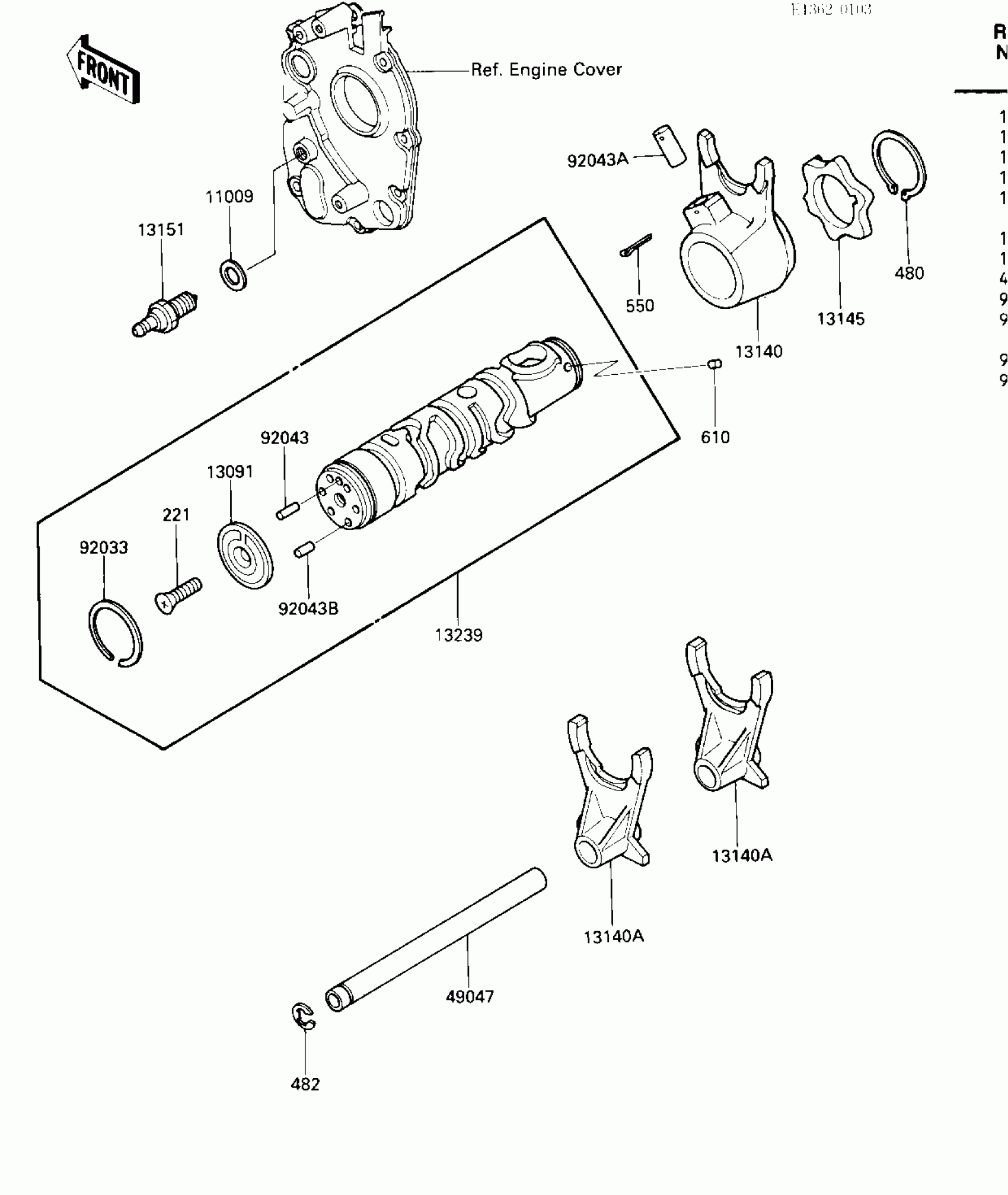

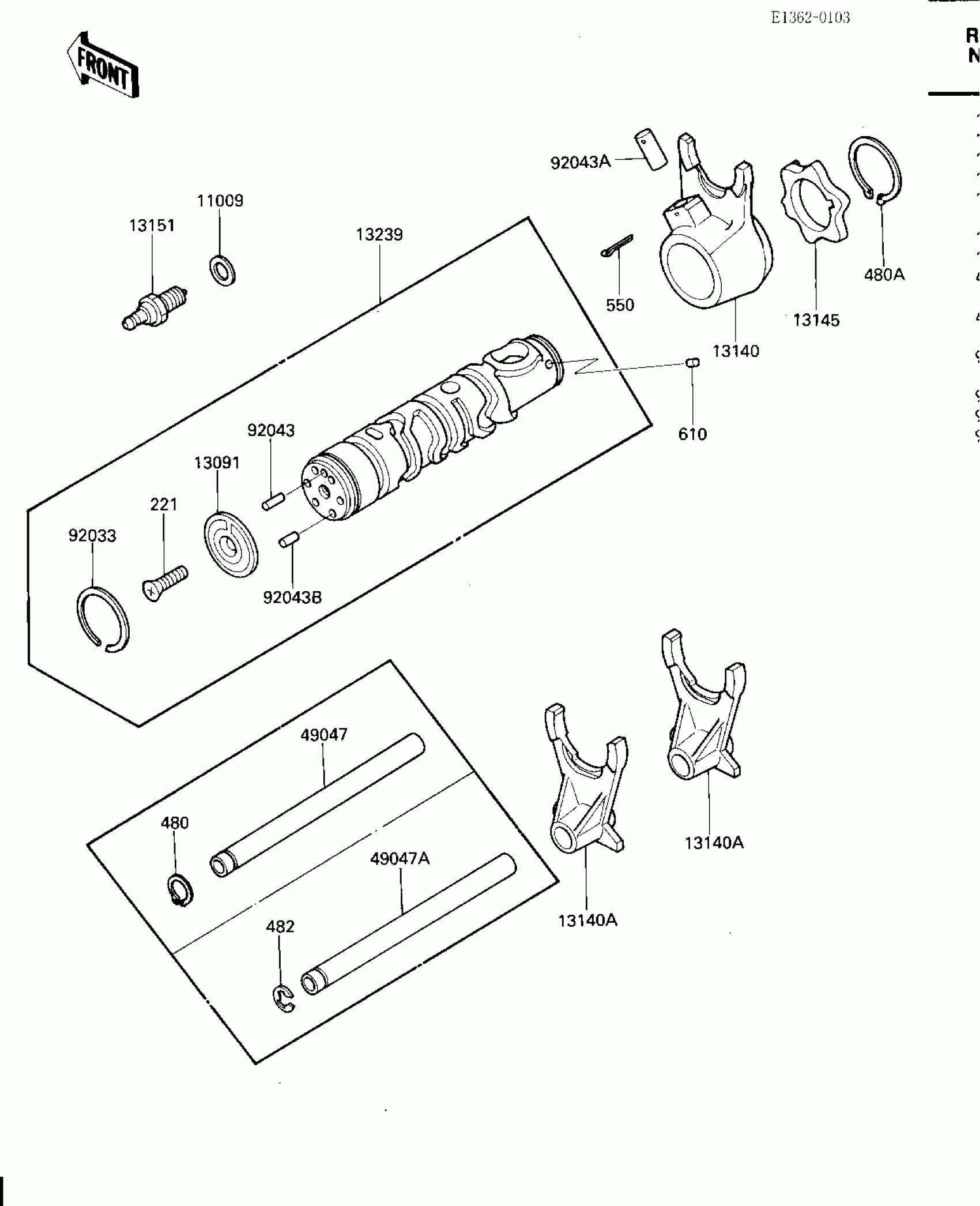

Kawasaki Ninja® 600 GEAR CHANGE DRUM & FORKS Diagram

Description

Price

11009

GASKET,10.5X16X1

92065-058

$3.03

13091

HOLDER,CHANGE DRUM PIN

13091-1104

$24.63

13140

FORK-SHIFT,DRIVE

13140-1016

$112.11

13140A

FORK-SHIFT,OUTPUT

13140-1062

$112.11

13145

CAM-CHANGE DRUM

13145-1058

$22.71

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1119

Unavailable

49047

ROD-SHIFT

49047-5003

$22.90

49047A

ROD-SHIFT

49047-1069

$28.92

92033

RING-SNAP,37MM

92033-035

$7.44

92043

PIN,DOWEL,4X15.8

92042-014

$0.46

92043A

PIN,DOWEL,8X18

92042-021

$8.75

92043B

PIN,DOWEL,4X13.8

92042-030

$2.99

221

SCREW-CSK-CROS,6X20

221B0620

$1.71

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

480A

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

550

PIN-COTTER,3.0X20

550D3020

$1.32

610

ROLLER,4X6

610A0406

$3.29
