1986 Kawasaki Ninja® 600 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

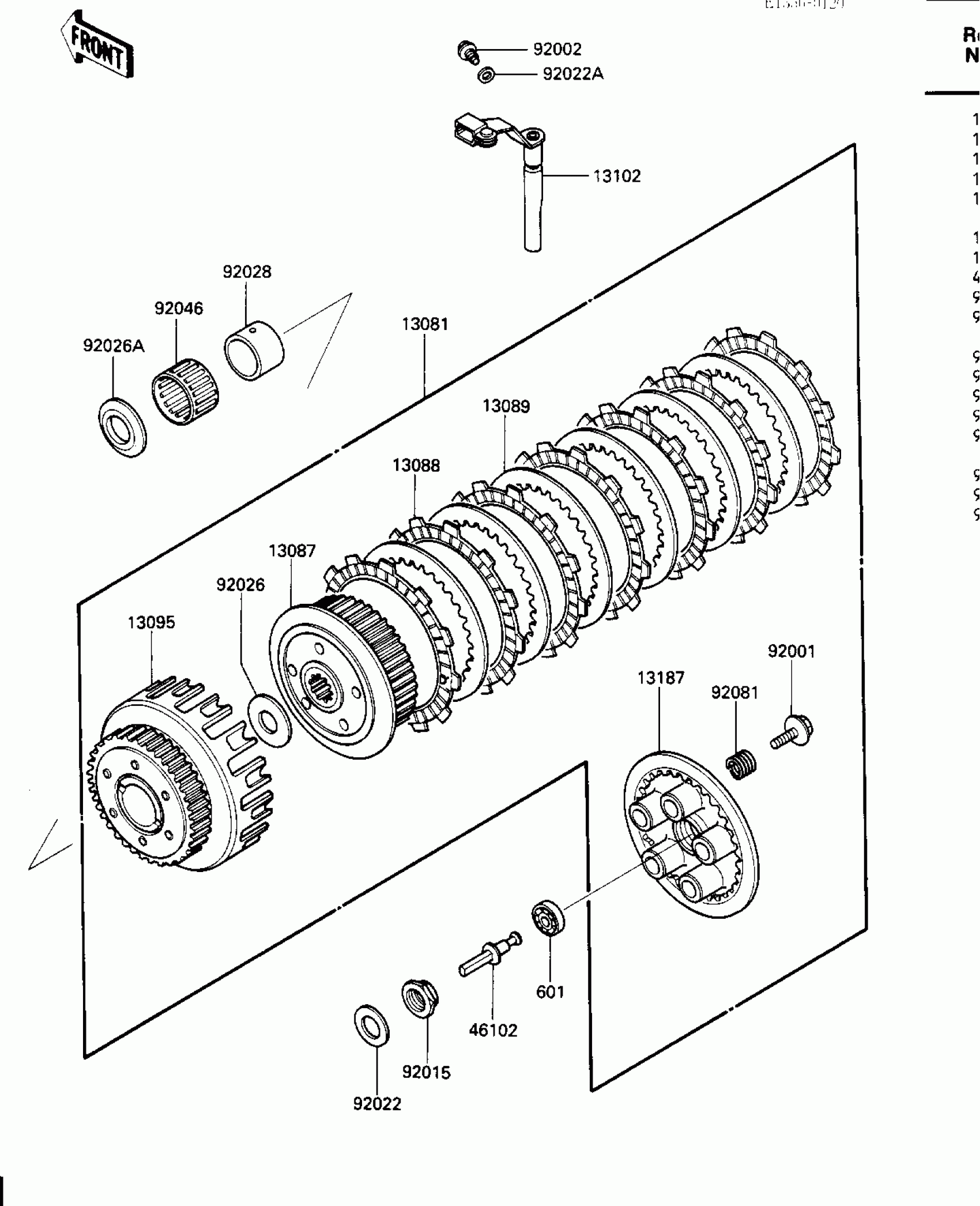

1986 Kawasaki Ninja® 600 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1198

1
Out of stock

13087

HUB-CLUTCH

13087-1067

1
Out of stock

13088

PLATE-FRICTION

13088-040

1

$9.95

In stock

13089

PLATE-CLUTCH,T=2.0

13089-026

1

$10.14

In stock

13095

HOUSING-COMP-CLUTCH

13095-1128

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1072

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1012

1
Out of stock

46102

ROD,CLUTCH

46102-1146

1

$34.75

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92002

BOLT,FLANGED,6X9.5

92002-1356

1

$5.64

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92046

1

$19.92

In stock

92081

SPRING,CLUTCH

92081-139

1

$6.75

In stock

601

1

$12.85

In stock
