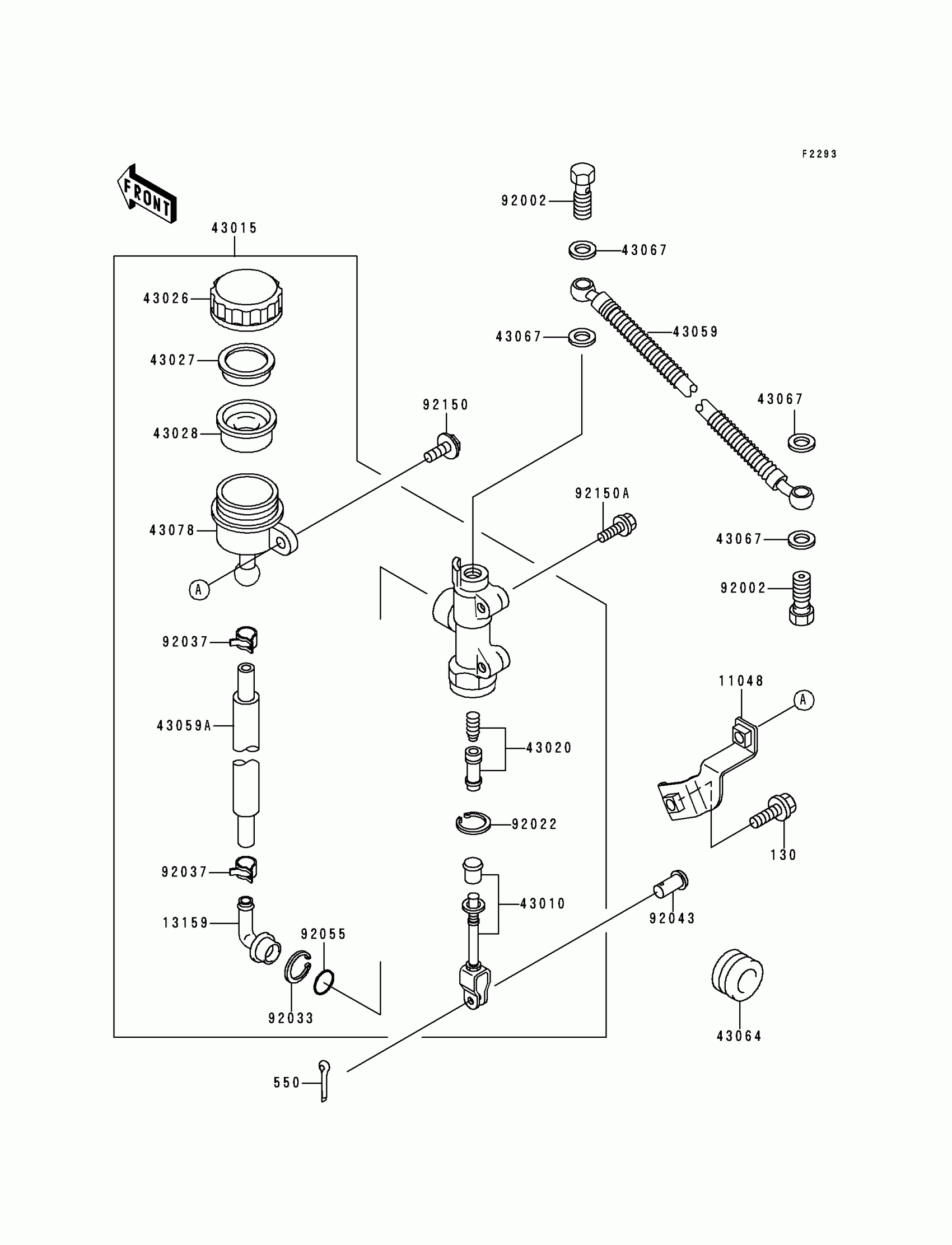

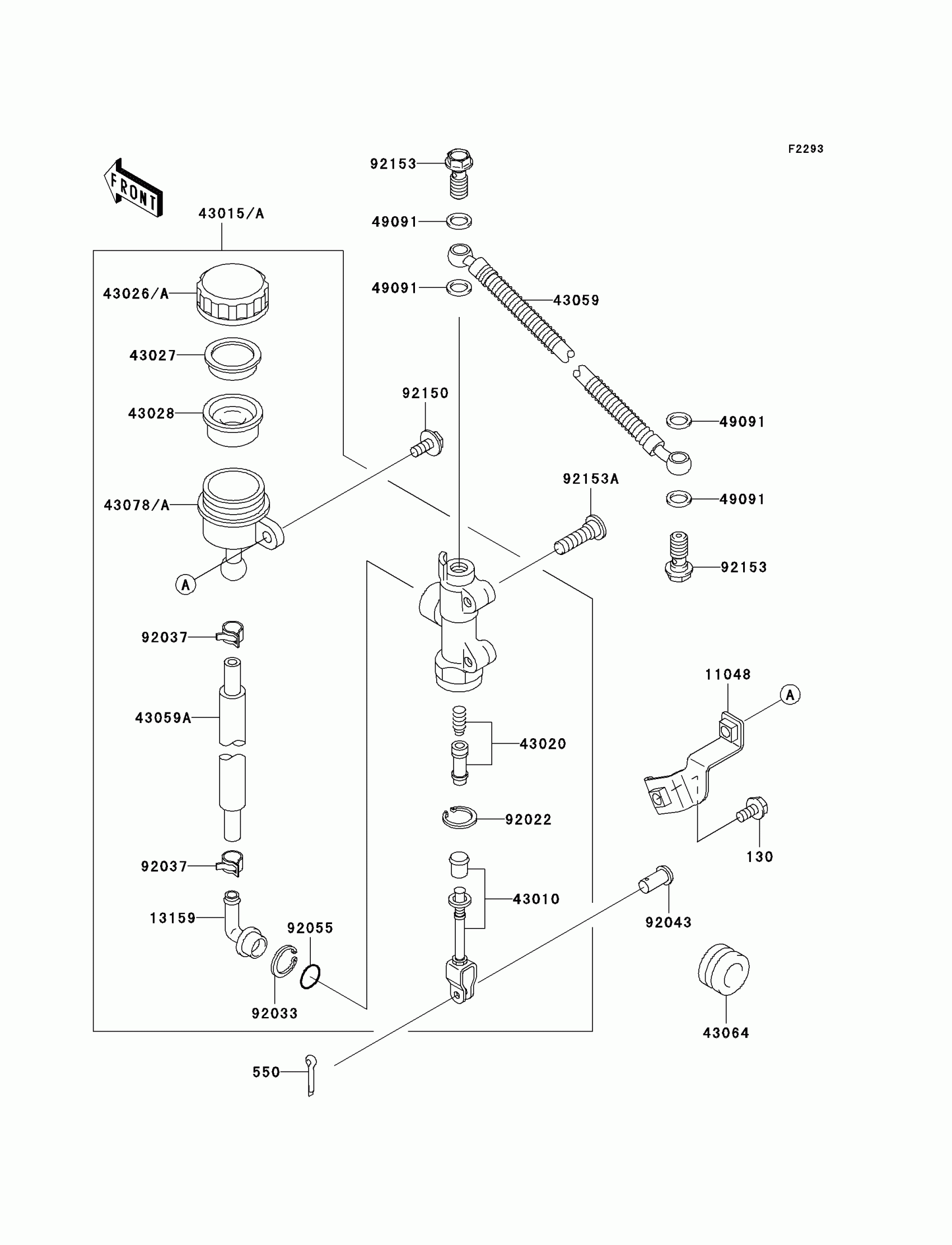

Kawasaki Ninja® 500R Rear Master Cylinder Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

11048

BRACKET,RESERVOIR TANK

11048-1363

$13.56

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-1055

$70.35

43015

CYLINDER-ASSY-MASTER,RR

43015-1555

Unavailable

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1077

$38.89

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43059

HOSE-BRAKE,RR

43059-1779

$101.89

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1780

$21.59

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR

43078-1080

$28.80

92002

BOLT,OIL,L=23

92002-1907

$4.15

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP

92037-1710

$7.54

92043

PIN,8MM

92043-1303

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT,6X16

92150-1198

$3.69

92150A

BOLT,SOCKET,8X30

92150-1843

$2.98
