1998 Kawasaki Ninja® 500R Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1998 Kawasaki Ninja® 500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

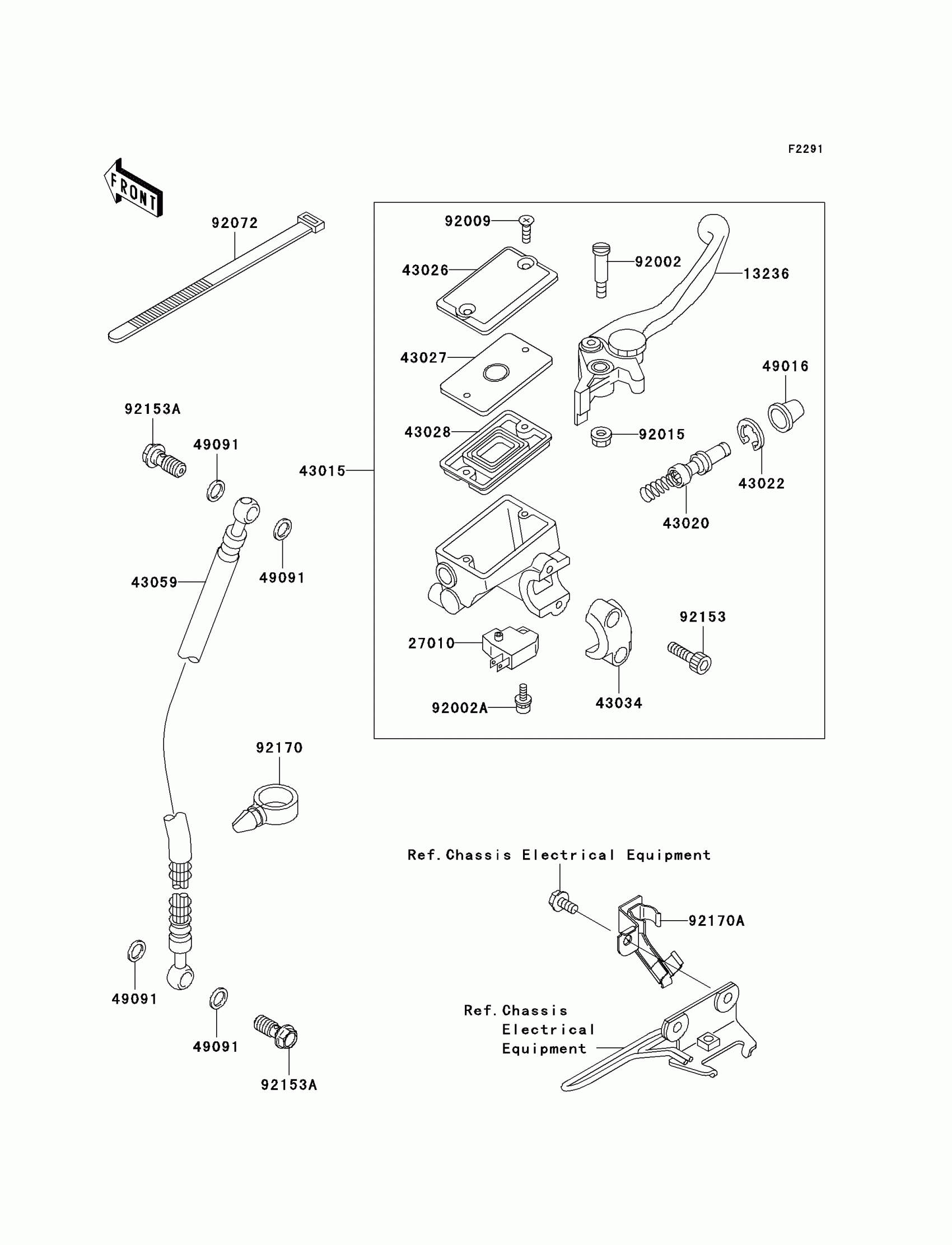

1998 Kawasaki Ninja® 500R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,FRONT BRAKE

13236-1185

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1479

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

43020-1056

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1076

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1055

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

1
Out of stock

43059A

HOSE-BRAKE,FR

43059-1860

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

1
Out of stock

92002C

BOLT,OIL,L=23

92002-1907

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92170

CLAMP

92170-1067

1

$5.93

In stock

92170A

CLAMP,HOSE

92170-1499

1

$11.12

In stock
