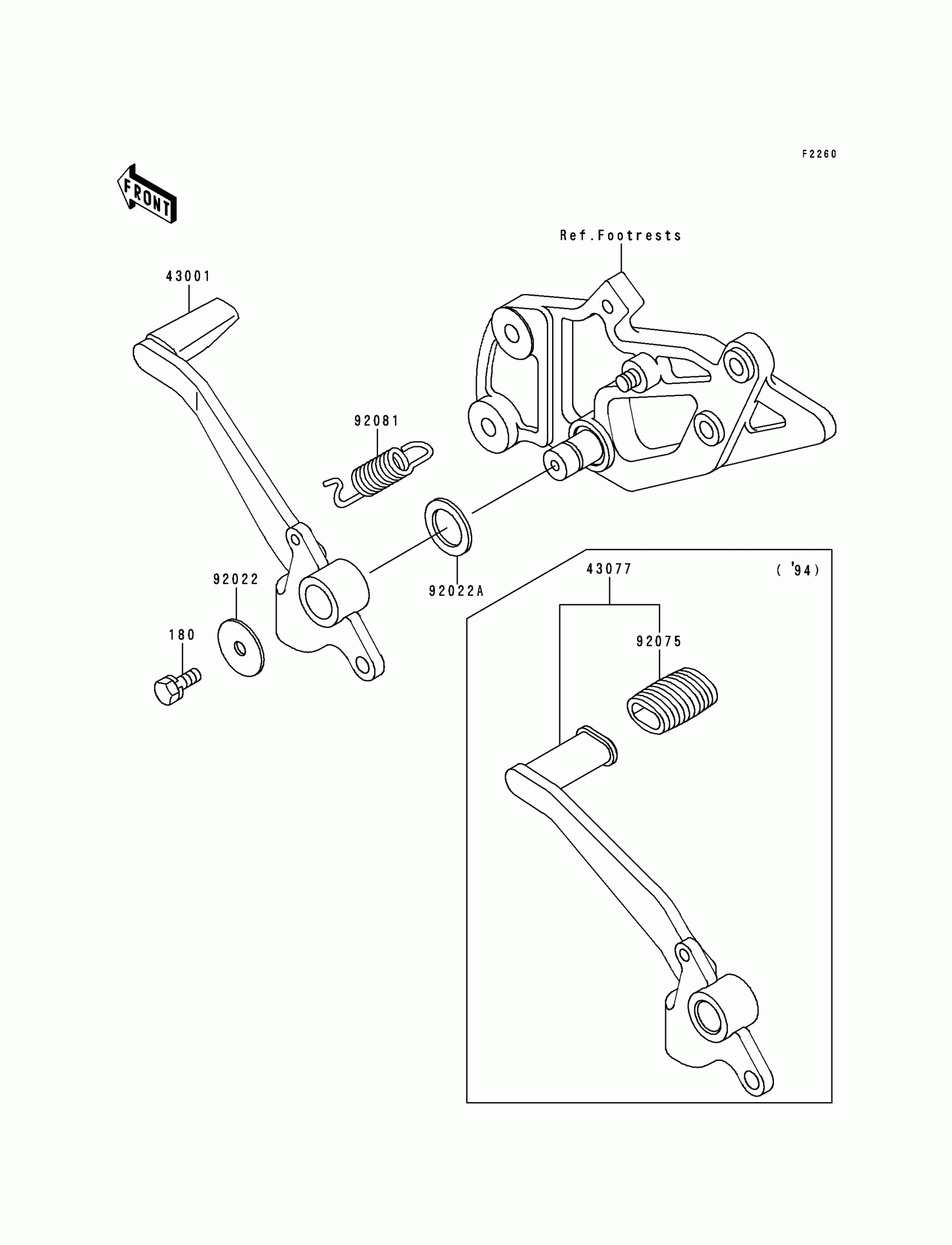

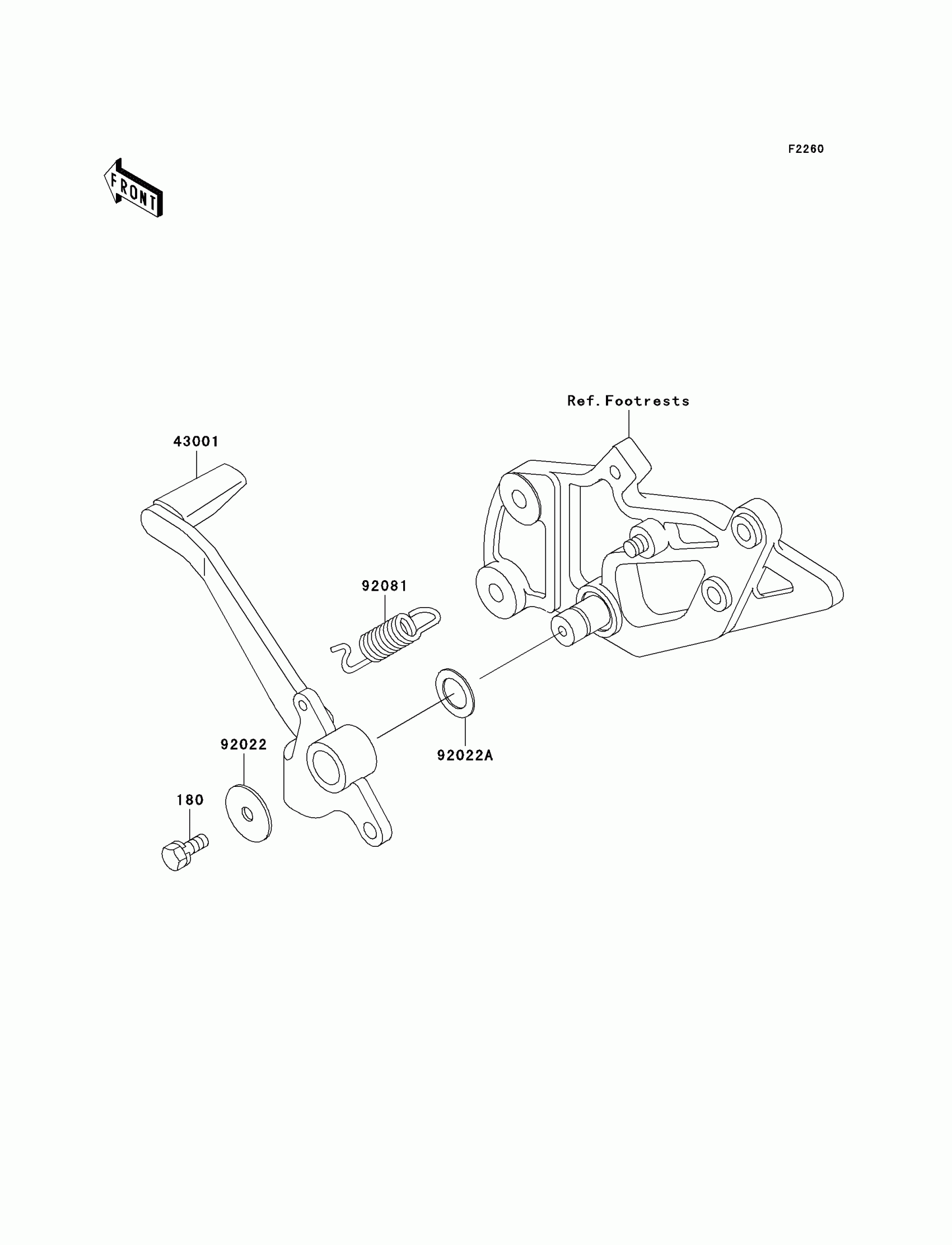

Kawasaki Ninja® 500R Brake Pedal/Torque Link Diagram

#

Description

Price

180

BOLT-UPSET-WS,6X16

180D0616

Unavailable

43001

LEVER-BRAKE,PEDAL

43001-1355

Unavailable

92022

WASHER,7X28X1.6

92022-1282

$3.57

92022A

WASHER,15.3X24X1

92022-326

$2.99

92081

SPRING,BRAKE PEDAL

92081-1833

$7.76
