1998 Kawasaki Ninja® 500R Rear Brake Diagram

← All diagrams

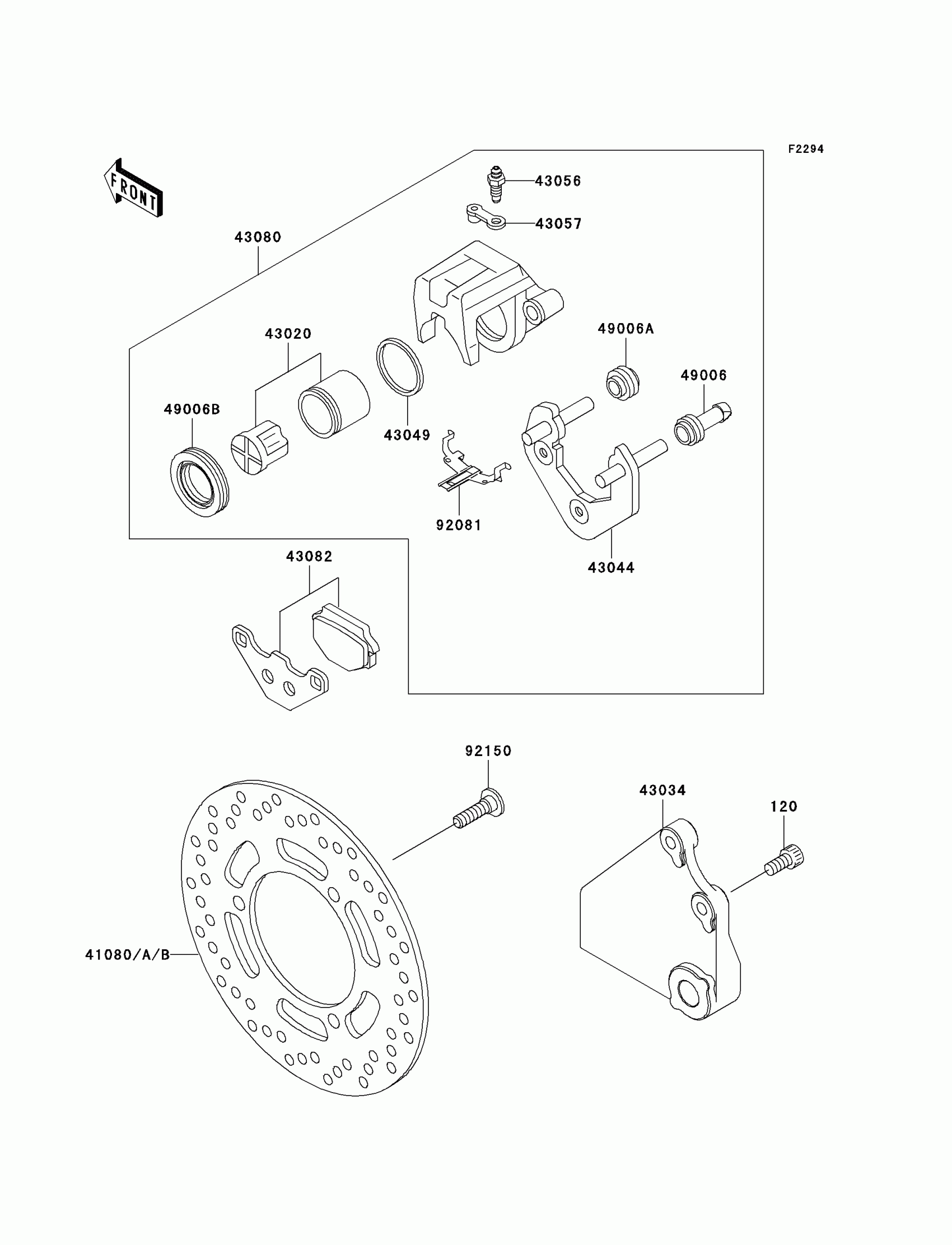

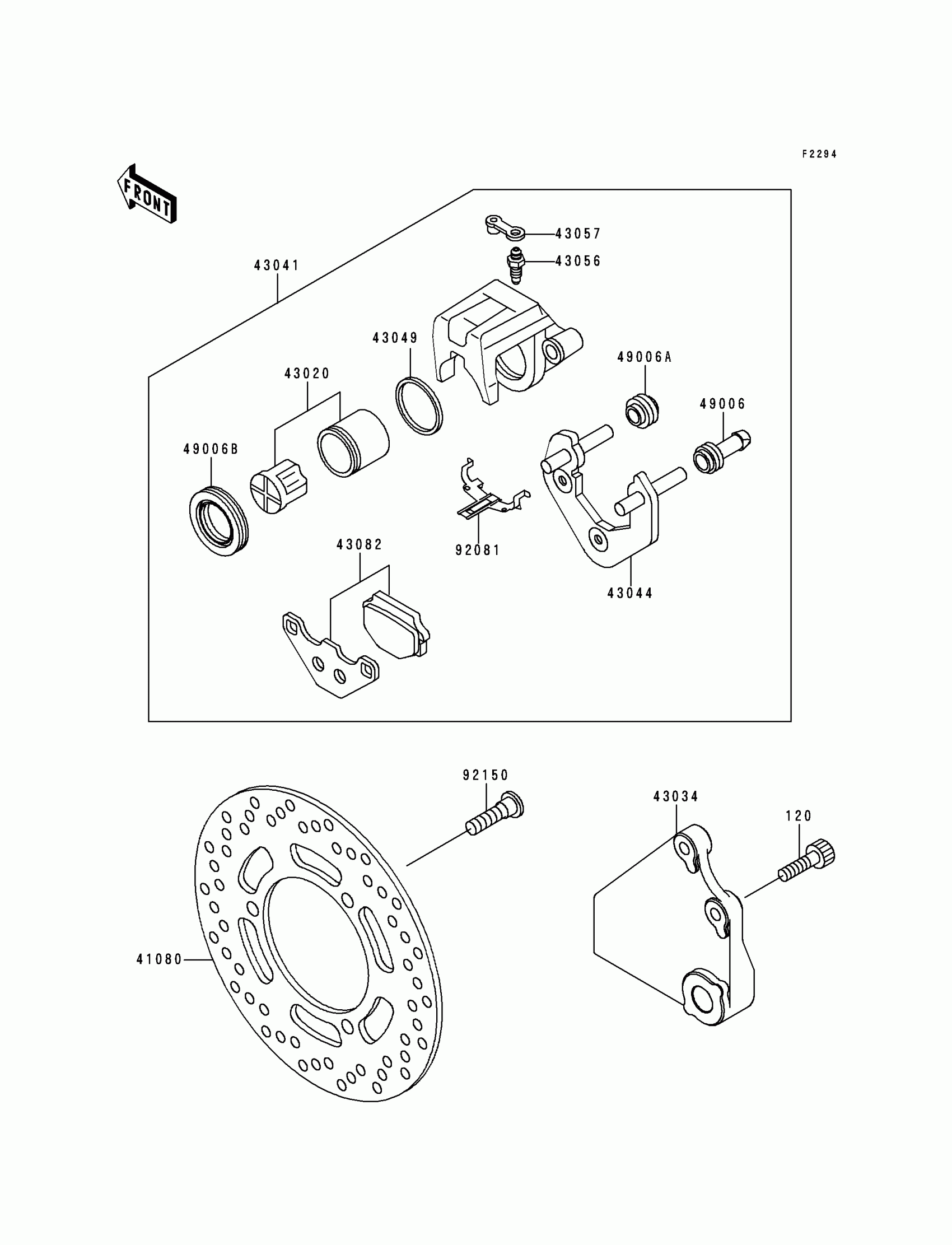

Find the part on the Rear Brake diagram for your 1998 Kawasaki Ninja® 500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Kawasaki Ninja® 500R Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock

41080

DISC,RR,C.GRAY

41080-1251-FB

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1082

1
Out of stock

43034

HOLDER-BRAKE,REAR CALIPER

43034-1131

1
Out of stock

43041

CALIPER-ASSY,RR,BLACK

43041-1529-DJ

1
Out of stock

43044

HOLDER-COMP-CALIPER,RR

43044-1075

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1026

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1163

1
Out of stock

49006

BOOT,CALIPER

49006-1054

1
Out of stock

49006A

BOOT,CALIPER

49006-1055

1
Out of stock

49006B

BOOT,PISTON

49006-1091

1
Out of stock

92081

SPRING,PAD

92081-1341

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock
