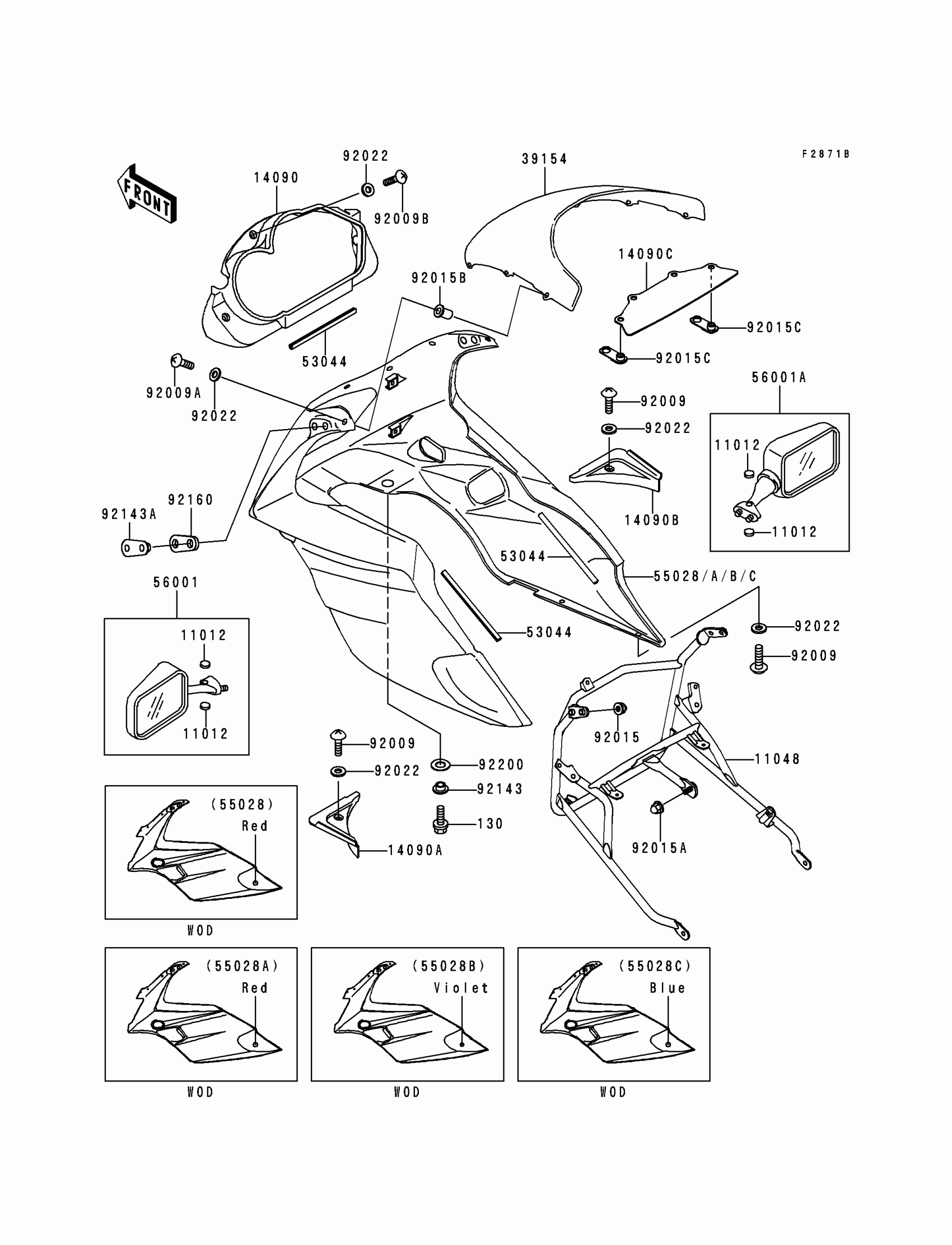

Kawasaki Ninja® 500R Cowling(EX500-D3/D4) Diagram

#

Description
Price

130

BOLT-FLANGED

130J0620

Unavailable

11012

CAP,MIRROR

11012-1818

$2.75

11048

BRACKET,UPP COWLING

11048-1368

Unavailable

14090

COVER,INNER COWLING,CNT

14090-1397

$132.11

14090A

COVER,INNER COWLING,LH

14090-1398

$69.79

14090B

COVER,INNER COWLING,RH

14090-1399

$69.79

14090C

COVER,WINDSHIELD

14090-1488

$22.41

39154

WINDSHIELD

39154-1125

$251.77

53044

TRIM,L=157

53044-1276

$8.63

55028

COWLING,UPP,F.RED

55028-1318-B1

Unavailable

55028C

COWLING,UPP,L.P.BLUE

55028-1318-35

$901.40

56001

MIRROR-ASSY,LH,EBONY

56001-1376-6C

$85.41

56001A

MIRROR-ASSY,RH,EBONY

56001-1377-6C

$85.41

92009

SCREW,TAPPING,5X15

92009-1479

$3.34

92009A

SCREW,5X16,BLACK

92009-1654

$2.17

92009B

SCREW,5X22

92009-1660

$3.66

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.60

92015A

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92015B

NUT,WELL,5MM

92015-1757

$5.58

92015C

NUT

92015-1949

$8.95

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92143

COLLAR,L=6.6

92143-1088

$4.68

92143A

COLLAR

92143-1699

$3.93

92160

DAMPER,MIRROR

92160-1089

$5.81

92200

WASHER,10.3X20X1

92200-1013

$3.43
