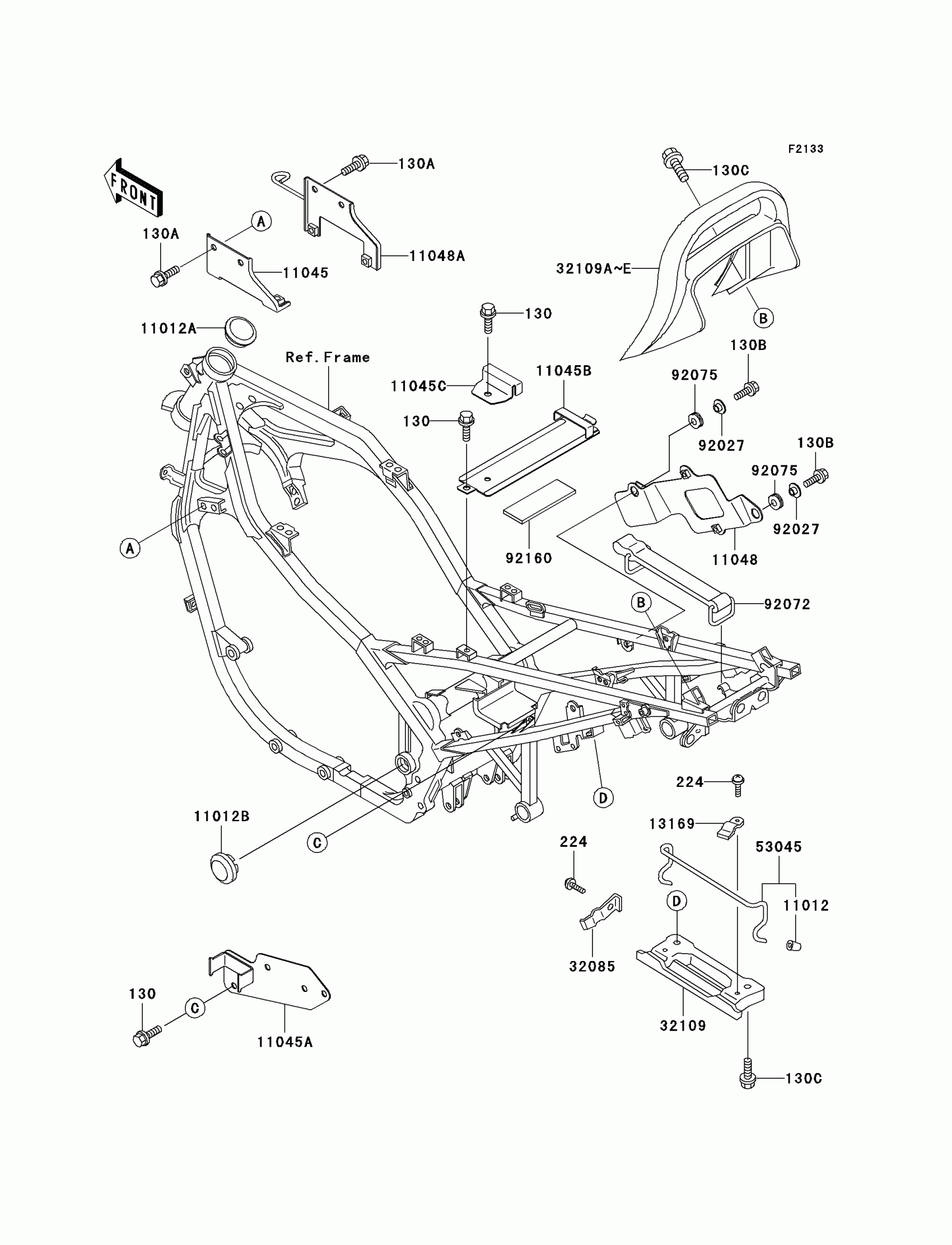

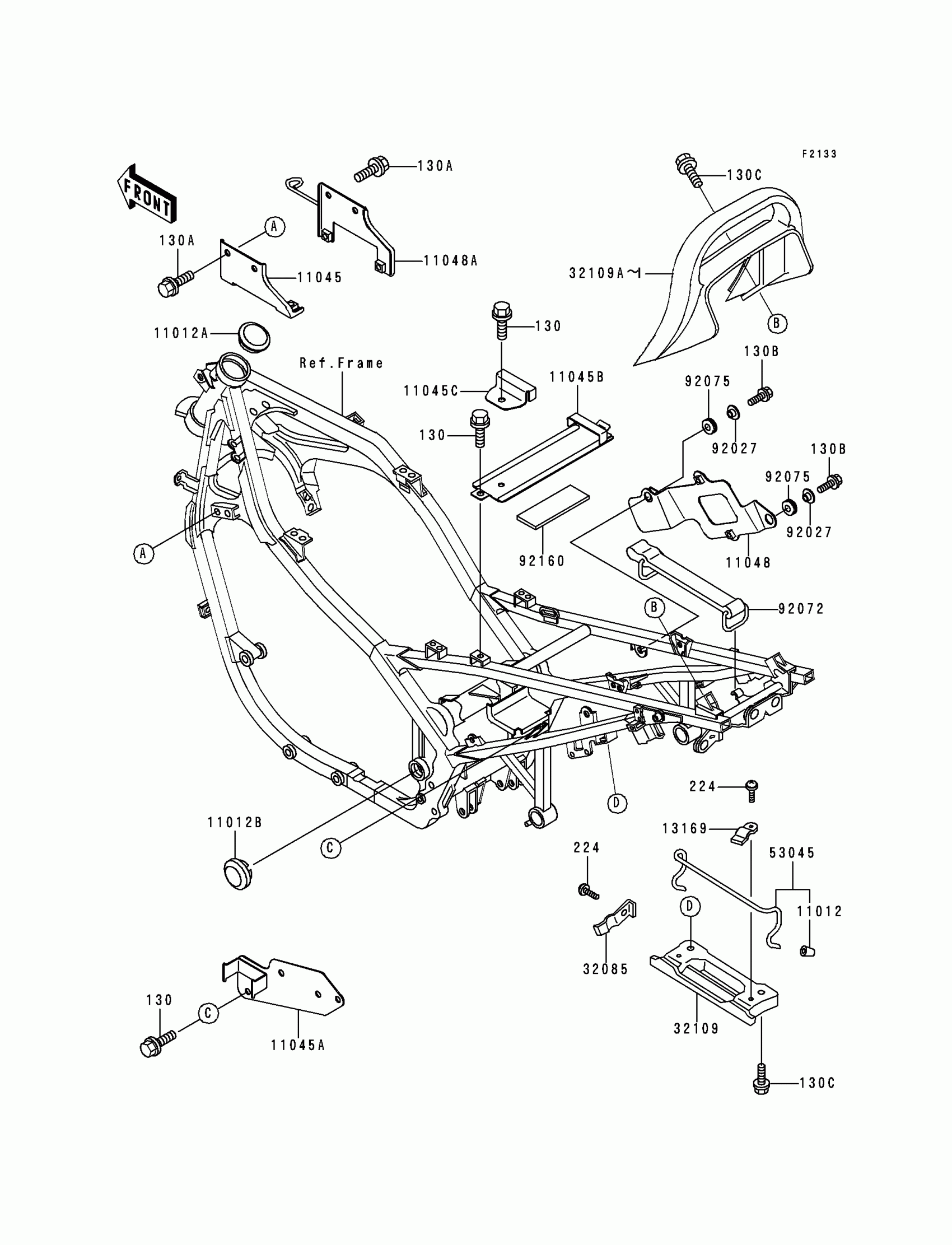

Kawasaki Ninja® 500R Electro Bracket Diagram

#

Description
Price

130

BOLT-FLANGED,6X8

130J0608

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130B

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130C

BOLT-FLANGED,8X16

130J0816

Unavailable

224

SCREW-PAN-WP-CROS

224C0508

Unavailable

11012

CAP,BUNGEE CORD HOOK

11012-1589

$7.63

11012A

CAP

11012-1688

$13.89

11012B

CAP,BLACK

11012-1717-10

$9.20

11045

BRACKET,IGNITION COIL,LH

11045-1419

$13.88

11045A

BRACKET,REGULATOR

11045-1421

$20.66

11045B

BRACKET,BATTERY BAND

11045-1423

$19.69

11045C

BRACKET,JUNCTION BOX

11045-1424

Unavailable

11048

BRACKET,IGNITER

11048-1343

$17.68

11048A

BRACKET,IGNITION COIL,RH

11048-1665

$18.44

13169

PLATE,GRIP

13169-1760

$10.24

32085

STOPPER,HOOK

32085-1187

$11.41

32109

GRIP-FRAME

32109-1108

$87.65

53045

HOOK-ASSY,BUNGEE CORD

53045-1062

$32.74

92027

COLLAR

92027-1166

$4.67

92072

BAND

92072-1085

$13.69

92075

DAMPER RUBBER

92075-051

$2.34

92160

DAMPER,BATTERY

92160-1094

Unavailable

32109A

GRIP-FRAME,TAIL,C.P.RED

32109-1245-A5

Unavailable

32109C

GRIP-FRAME,TAIL,BLACK PEARL

32109-1245-B5

Unavailable
