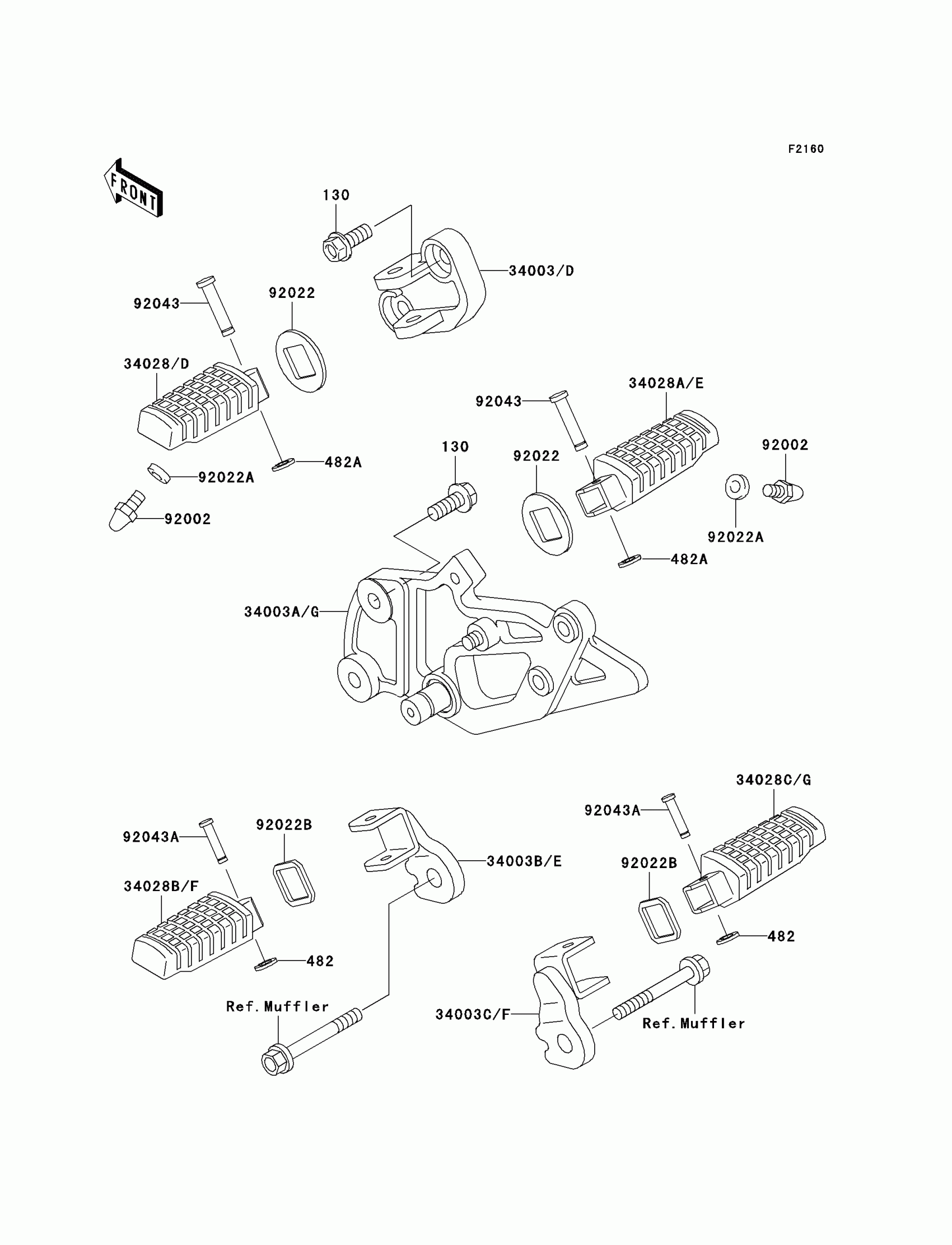

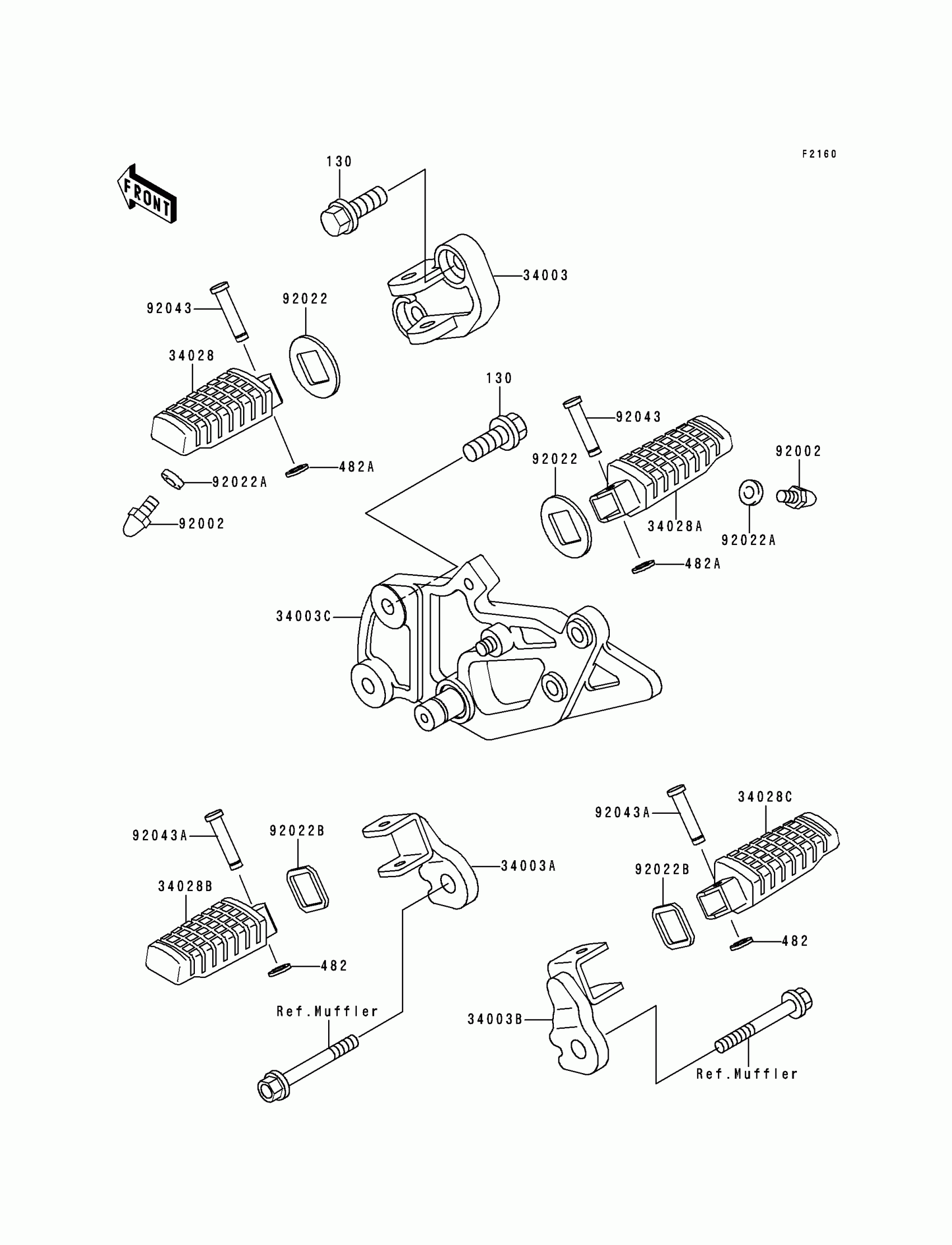

Kawasaki Ninja® 500R Footrests Diagram

Description

Price

130

BOLT-FLANGED,8X20

130J0820

Unavailable

482

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

482A

CIRCLIP-TYPE-E

482L7000

$2.99

34003

HOLDER-STEP,FR,LH

34003-1319

$97.98

34003A

HOLDER-STEP,RR,LH

34003-1321

$43.33

34003B

HOLDER-STEP,RR,RH

34003-1322

$43.33

34003C

HOLDER-STEP,FR,RH

34003-1394

Unavailable

34028

STEP,FR,LH

34028-1193

Unavailable

34028A

STEP,FR,RH

34028-1194

Unavailable

34028B

STEP,RR,LH

34028-1195

Unavailable

34028C

STEP,RR,RH

34028-1196

Unavailable

92002

BOLT,BANK SENSOR

92002-1995

$10.80

92022

WASHER,STEP FITTING

92022-1314

$3.98

92022A

WASHER,6.5X13X2.0

92022-1523

$0.88

92022B

WASHER,STEP FITTING

92022-1797

$4.61

92043

PIN,8X40.5

92043-1326

$4.46

92043A

PIN,6X30

92043-1327

$4.46
