2026 Kawasaki Ninja 500 Se ABS Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

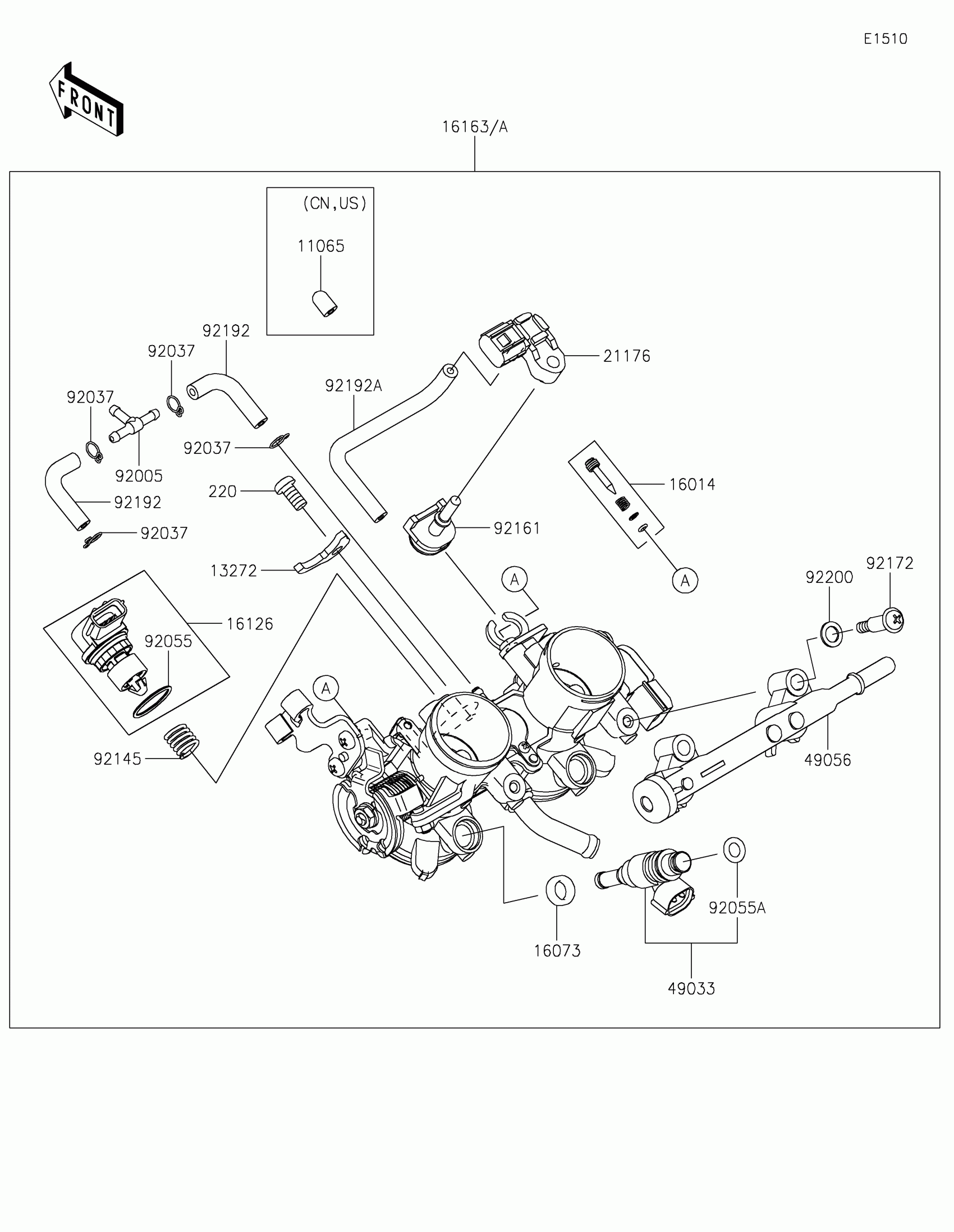

2026 Kawasaki Ninja 500 Se ABS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2558

1

$21.07

In stock

16014

SCREW-PILOT AIR

16014-0022

1

$23.64

In stock

16073

INSULATOR

16073-0866

1

$5.25

In stock

16126

VALVE,ISC

16126-0748

1

$118.86

In stock

21176

SENSOR,PRESSURE

21176-0906

1

$226.99

In stock

49033

NOZZLE-INJECTION

49033-0047

1

$135.75

In stock

49056

PIPE-INJECTION

49056-0050

1

$79.99

In stock

92055

RING-O

92055-0907

1

$8.37

In stock

92055A

1

$2.42

In stock

92145

SPRING

92145-1826

1

$5.02

In stock

92161

DAMPER

92161-2438

1

$1.49

In stock

92172

SCREW

92172-1257

1

$2.29

In stock

92192A

TUBE

92192-1906

1

$25.78

In stock

92200

WASHER

92200-3807

1
Out of stock

220

1

$1.10

In stock
