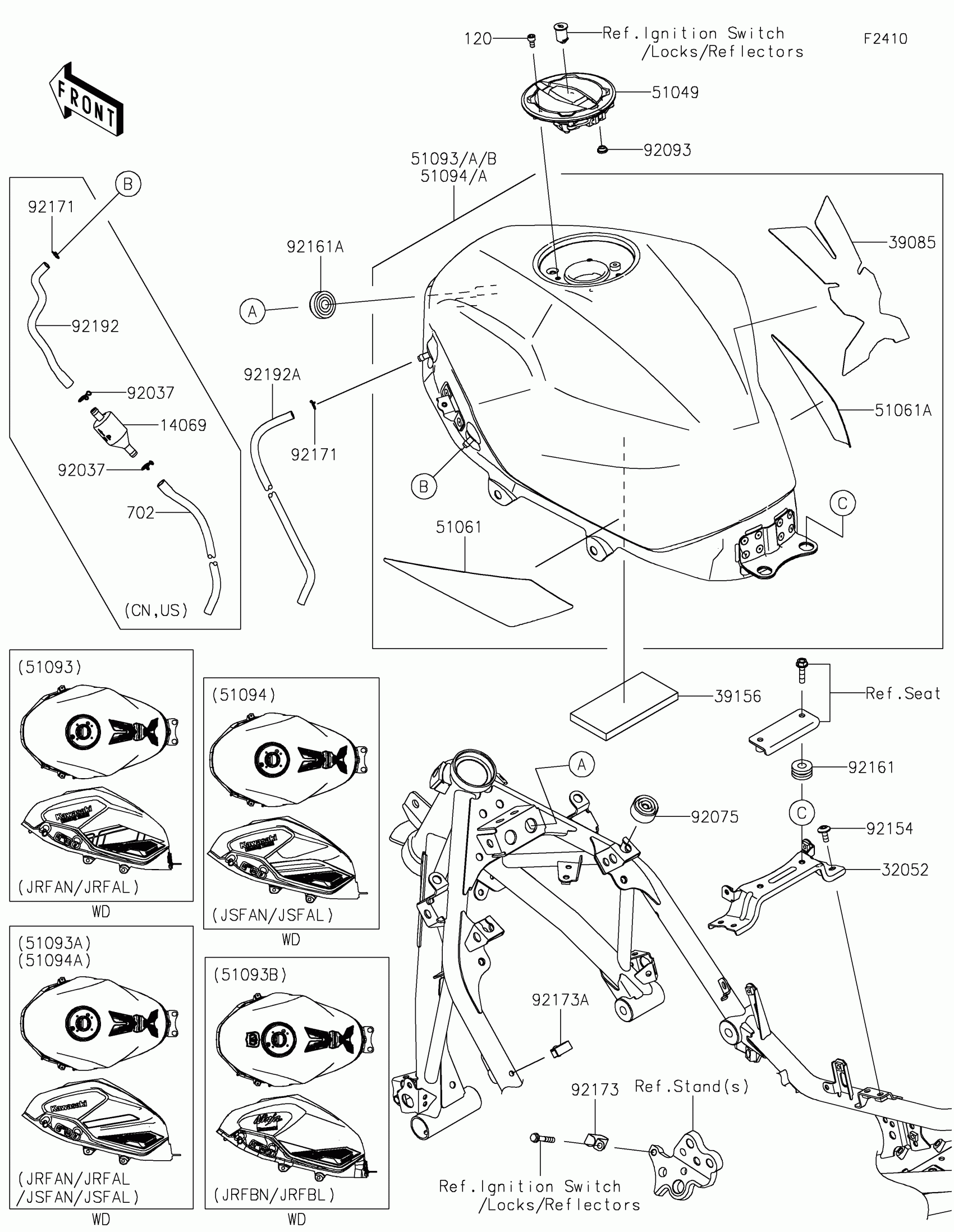

Kawasaki Ninja 500 SE ABS Fuel Tank(JRFAN-JSFAL) Diagram

Description

Price

32052

BRACKET-TANK

32052-0809

Unavailable

39085

PAD-TANK

39085-0021

$30.71

39156

PAD,60X120X10

39156-2388

$10.20

51049

CAP-TANK,FUEL

51049-0756

$139.17

51061

PAD-KNEE,LH

51061-0020

$31.51

51061A

PAD-KNEE,RH

51061-0021

$31.51

51093A

TANK-COMP-FUEL,M.F.S.BLACK

51093-5339-739

$933.30

51094

TANK-COMP-FUEL,L.GREEN

51094-5008-777

$1,068.28

51094A

TANK-COMP-FUEL,M.S.BLACK

51094-5010-660

$950.93

92075

DAMPER

92075-015

$3.81

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92154

BOLT,SOCKET,6X14

92154-0932

$1.44

92161

DAMPER,10X24X12

92161-0927

$4.53

92161A

DAMPER,10X32X17

92161-1980

$3.29

92173

CLAMP

92173-0833

$3.29

92173A

CLAMP,HOLDER CLIP

92173-0868

$2.11

92192A

TUBE,DRAIN,6X9X810

92192-1860

$5.93

120

BOLT-SOCKET,5X12

120CA0512

$1.19
