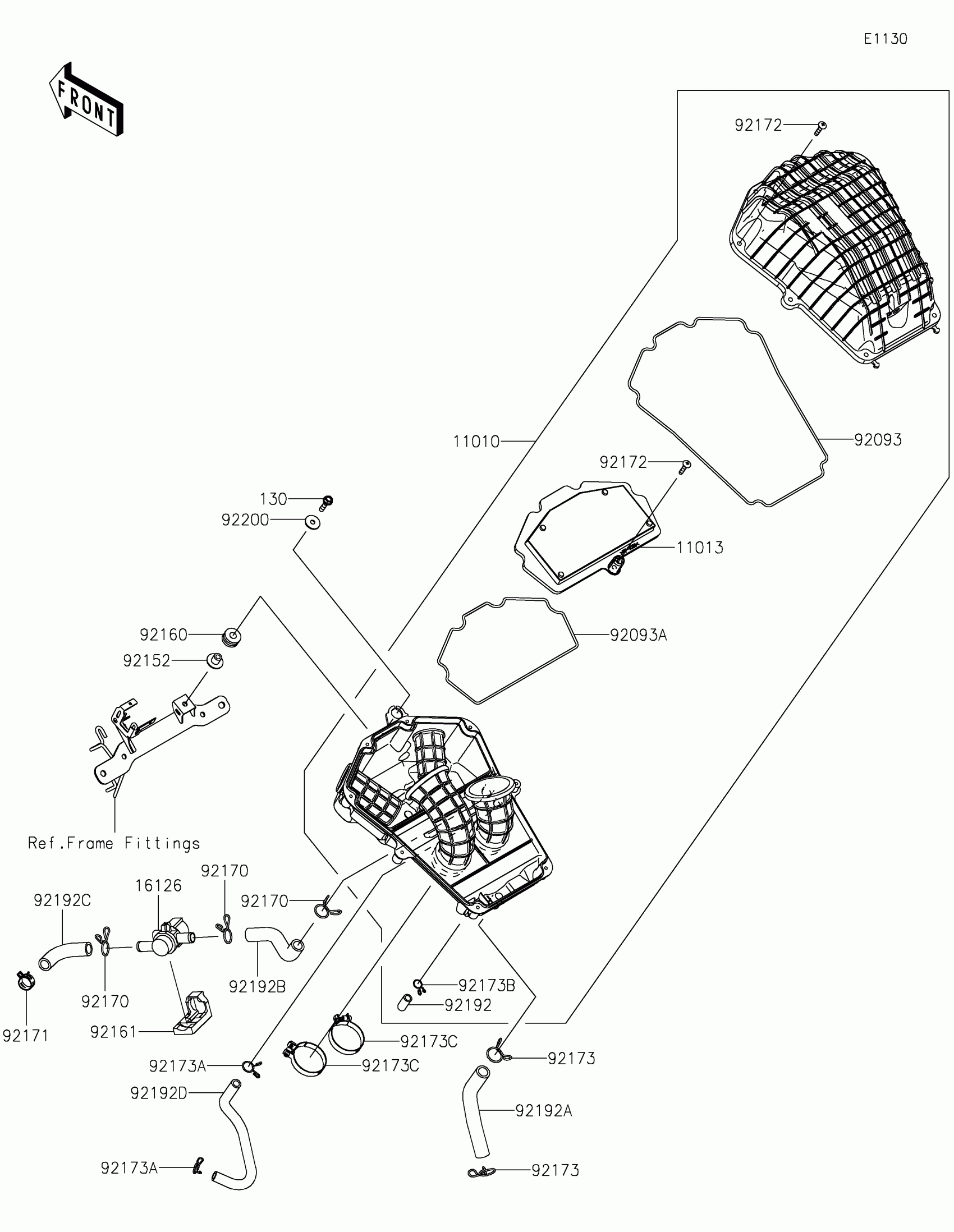

Kawasaki Ninja 500 SE ABS Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-1858

$413.26

11013

ELEMENT-AIR FILTER

11013-0767

$46.30

16126

VALVE,AIR CUT

16126-0744

Unavailable

92093

SEAL,CASE

92093-0706

$4.86

92093A

SEAL,ELEMENT

92093-0707

$4.07

92152

COLLAR,6.5X10.5X13.1

92152-0547

$4.27

92160

DAMPER

92160-1162

$3.81

92161

DAMPER

92161-1933

$13.81

92170

CLAMP

92170-1017

$3.57

92171

CLAMP,18.8MM

92171-2056

$1.27

92172

SCREW,5X25

92172-0891

$1.43

92173

CLAMP,20MM

92173-0190

$4.68

92173A

CLAMP,14MM

92173-0192

$3.29

92173B

CLAMP

92173-1714

$7.15

92173C

CLAMP

92173-2714

$7.29

92192

TUBE,DRAIN CLEAN

92192-1744

$4.10

92192A

TUBE,BREATHER

92192-1810

$7.27

92192B

TUBE,AIR CUT VALVE-AIR CLEANER

92192-1811

$7.47

92192C

TUBE,AIR CUT VALVE-HEAD CAP

92192-1812

$5.10

92192D

TUBE,ISC-AIR CLEANER

92192-1813

$8.90

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

130

BOLT-FLANGED,6X25

130BB0625

$1.84
