2026 Kawasaki Ninja 500 Se ABS Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

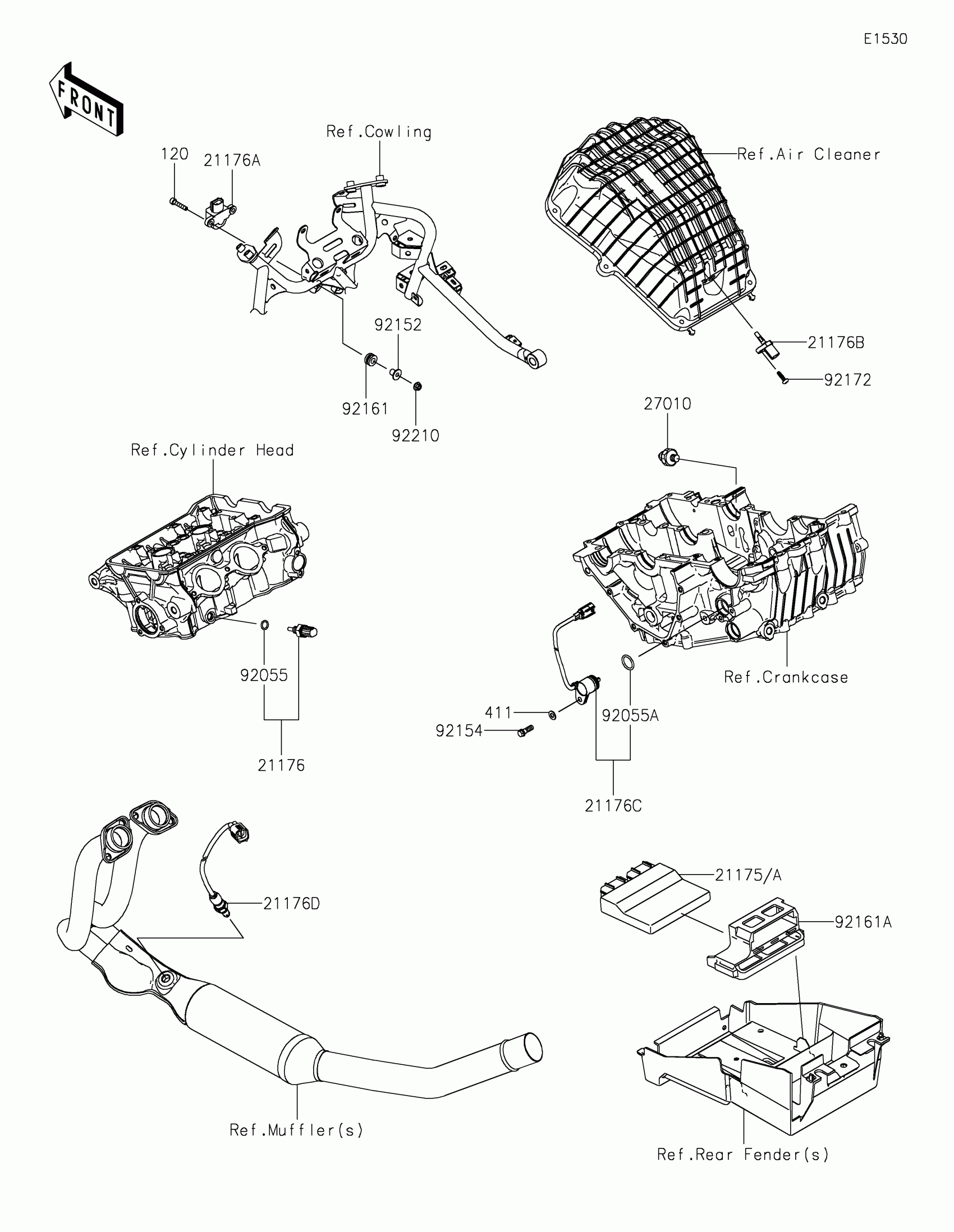

2026 Kawasaki Ninja 500 Se ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,GEAR POSITION

21176-0852

1
Out of stock

21176D

SENSOR,OXYGEN

21176-1202

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-0917

1
Out of stock

92152

COLLAR,5.6X8X11.2

92152-1562

1
Out of stock

92154

BOLT

92154-3764

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92161A

DAMPER

92161-2437

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0790

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

120

BOLT-SOCKET,5X25

120CA0525

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
