2025 Kawasaki Ninja® 500 ABS OIL PAN Diagram

← All diagrams

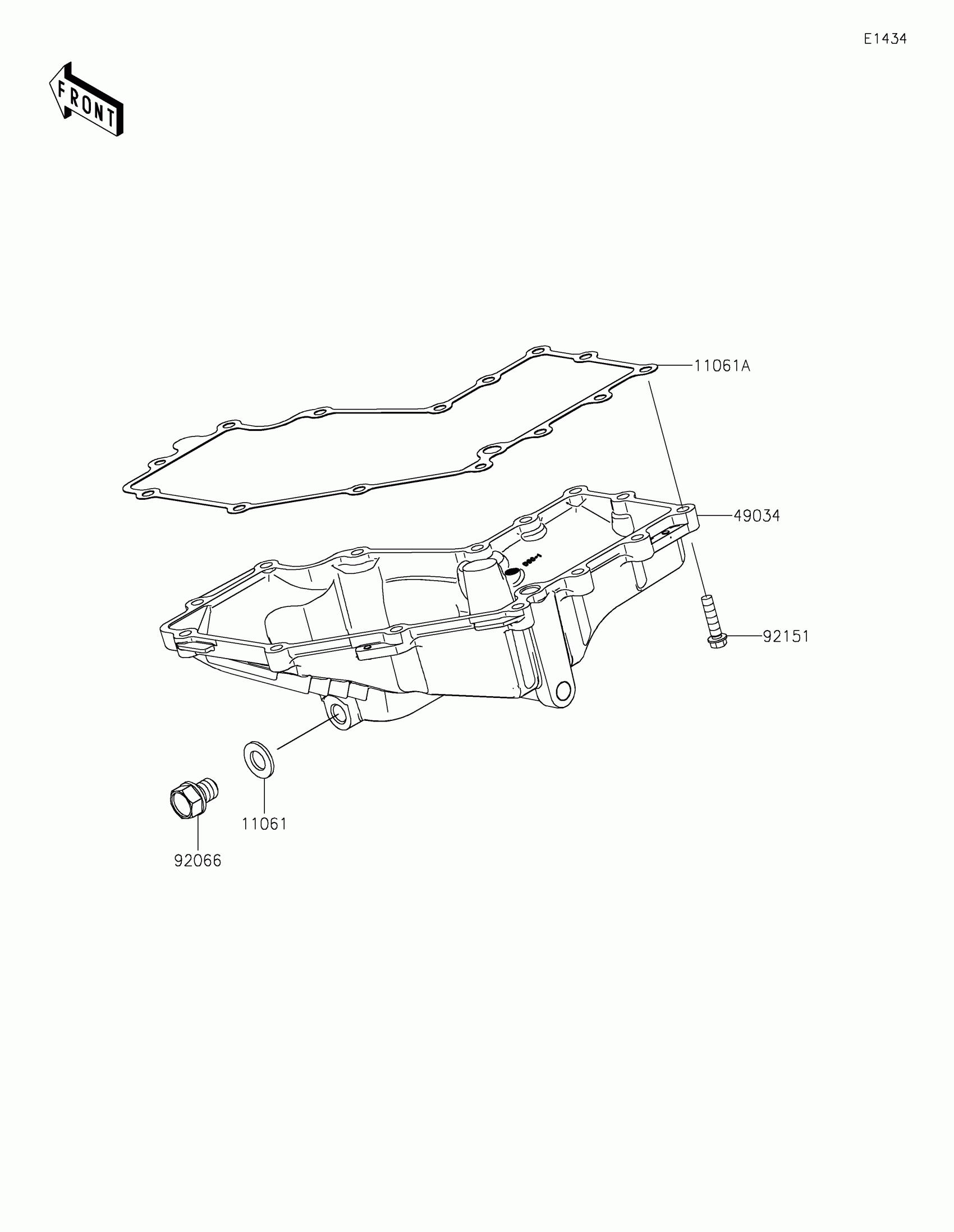

Find the part on the OIL PAN diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 500 ABS OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,12X22X2

11061-0417

1
Out of stock

11061A

GASKET,OILPAN

11061-1251

1
Out of stock

49034

PAN-OIL

49034-0568

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-0767

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock
← Muffler OIL Pump/oil Filter →

More Engine diagrams
