2025 Kawasaki Ninja® 500 ABS Cylinder Head Diagram

← All diagrams

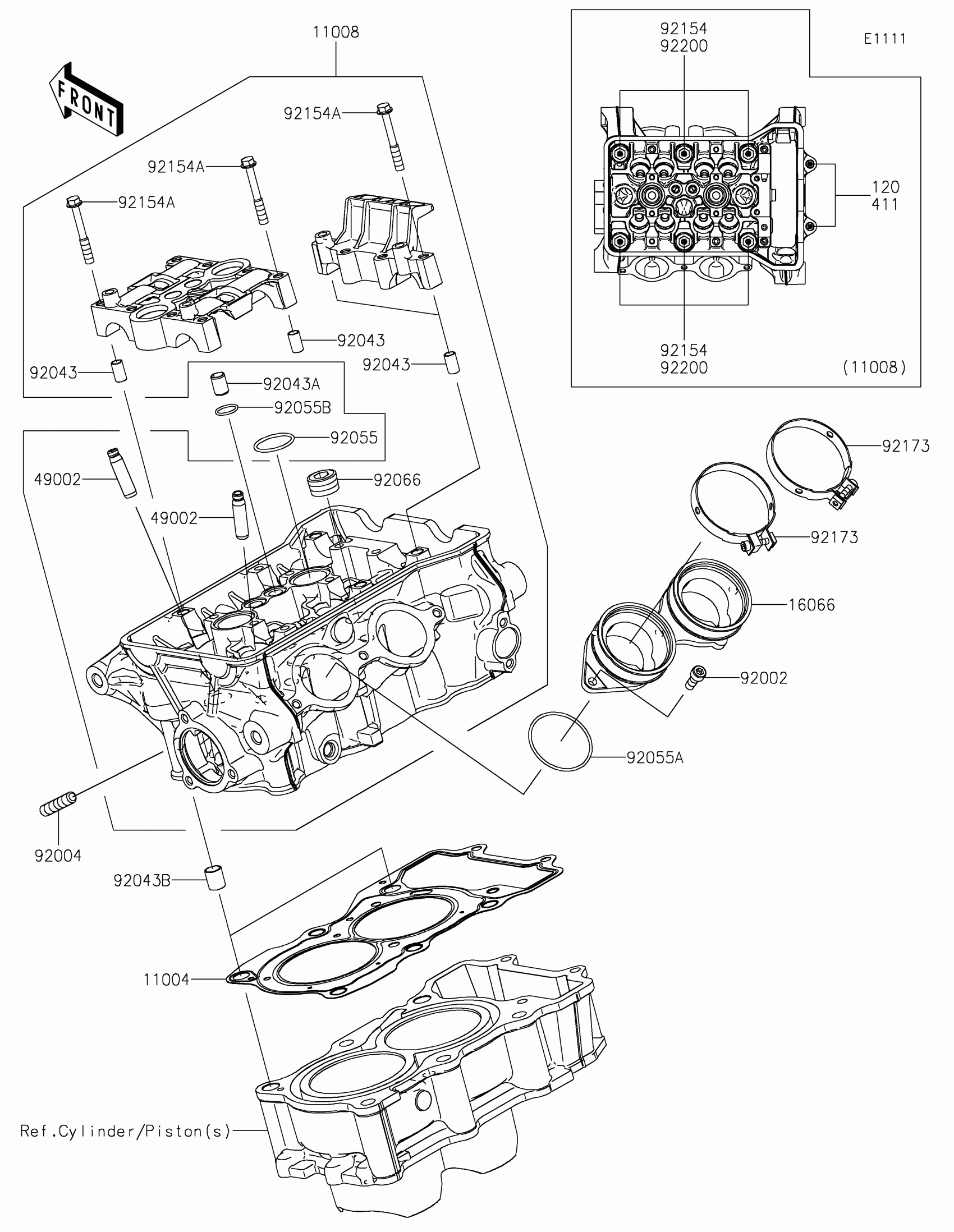

Find the part on the Cylinder Head diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 500 ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0805

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1534

1
Out of stock

16066

HOLDER-THROTTLE BODY

16066-0007

1
Out of stock

49002

GUIDE-VALVE

49002-0009

1
Out of stock

92002

BOLT,6X16

92002-1143

1
Out of stock

92004

STUD,8X25

92004-0731

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,8.2X10X14

92043-1264

1
Out of stock

92043B

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,25.5X2

92055-0074

1
Out of stock

92055A

RING-O,44.5X1.9

92055-0890

1
Out of stock

92055B

RING-O,13.5X1.5

92055-0944

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92154

BOLT,FLANGED,9X138

92154-2732

1
Out of stock

92154A

BOLT,FLANGED,6X45

92154-3737

1
Out of stock

92173

CLAMP,58MM

92173-0927

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-0363

1
Out of stock

120

BOLT-SOCKET,6X90

120CC0690

1
Out of stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock
