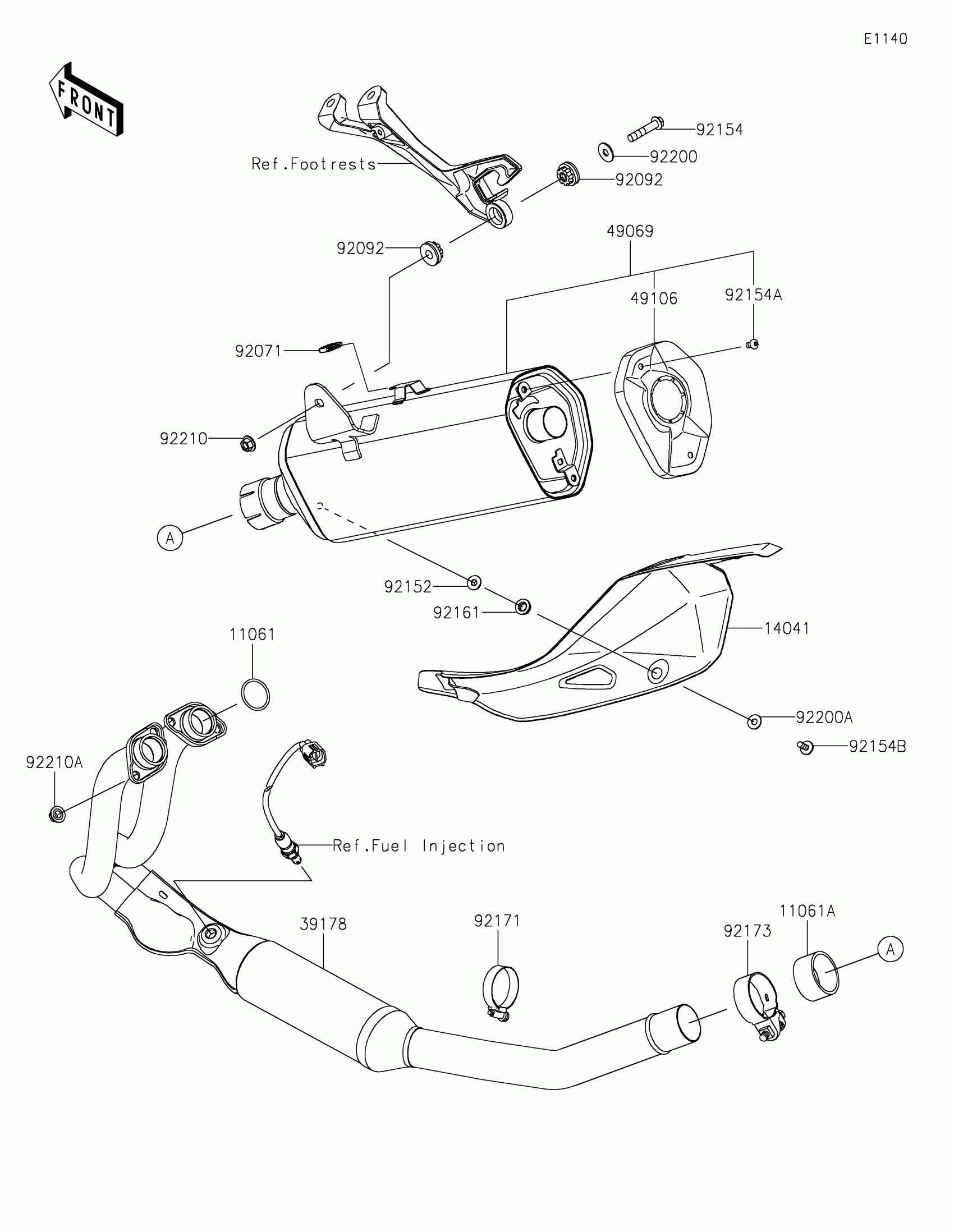

Kawasaki NINJA® 500 ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE

11061-1249

$5.80

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1266

$24.71

14041

COVER-COMP,MUFFLER

14041-0630

$229.95

39178

MANIFOLD-COMP-EXHAUST

39178-0469

$1,182.25

49069

MUFFLER-ASSY

49069-0913

$886.56

49106

COVER-MUFFLER

49106-0872

$76.95

92071

GROMMET

92071-0786

Unavailable

92092

BUSHING-RUBBER

92092-0044

$4.40

92152

COLLAR

92152-3804

$34.44

92154

BOLT,FLANGED,8X40

92154-4399

$1.74

92154A

BOLT,SOCKET,6X10

92154-7250

$2.03

92154B

BOLT,SOCKET,6X16

92154-7454

$2.46

92161

DAMPER

92161-2534

$3.49

92171

CLAMP

92171-0058

$9.42

92173

CLAMP

92173-1931

$20.00

92200

WASHER,8.0X22.0X1.5

92200-0174

$1.85

92200A

WASHER

92200-2636

$5.90

92210

NUT,8MM

92210-0121

$1.62

92210A

NUT,8MM

92210-1114

$1.76
