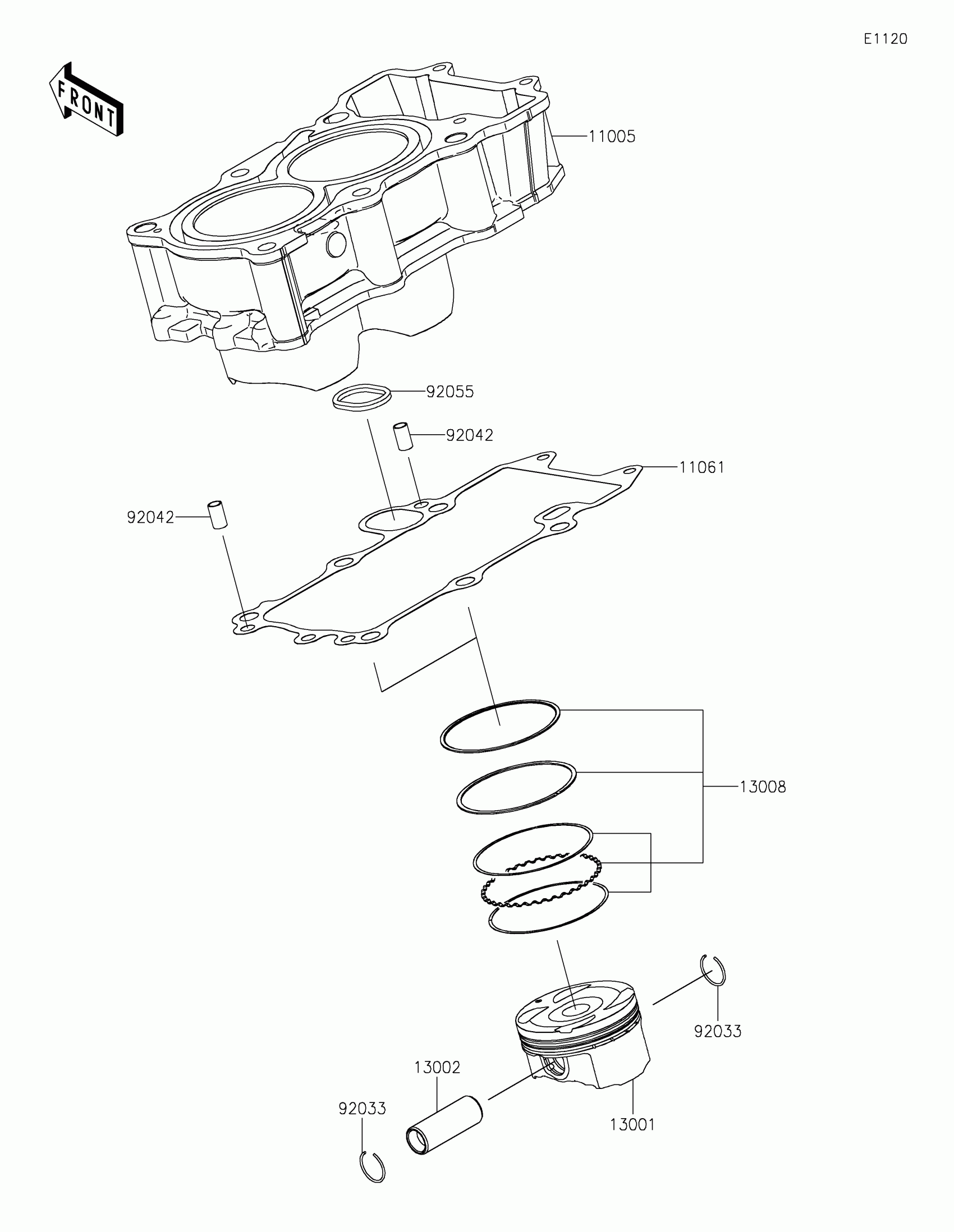

Kawasaki NINJA® 500 ABS Cylinder/Piston(s) Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-0740

$1,138.33

11061

GASKET,CYLINDER BASE

11061-1458

$33.70

13001

PISTON-ENGINE

13001-0853

$111.86

13002

PIN-PISTON

13002-0050

$25.12

13008

RING-SET-PISTON

13008-0603

$67.94

92033

RING-SNAP

92033-1054

$1.76

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O

92055-0888

$3.99
